12004 TC (1600) - Toro Twister Utility Vehicle (SN: 220000001 - 220999999) (2002) REPLACEMENT STARTER MOTOR ASSEMBLY Parts Diagram

Twister Utility Vehicle

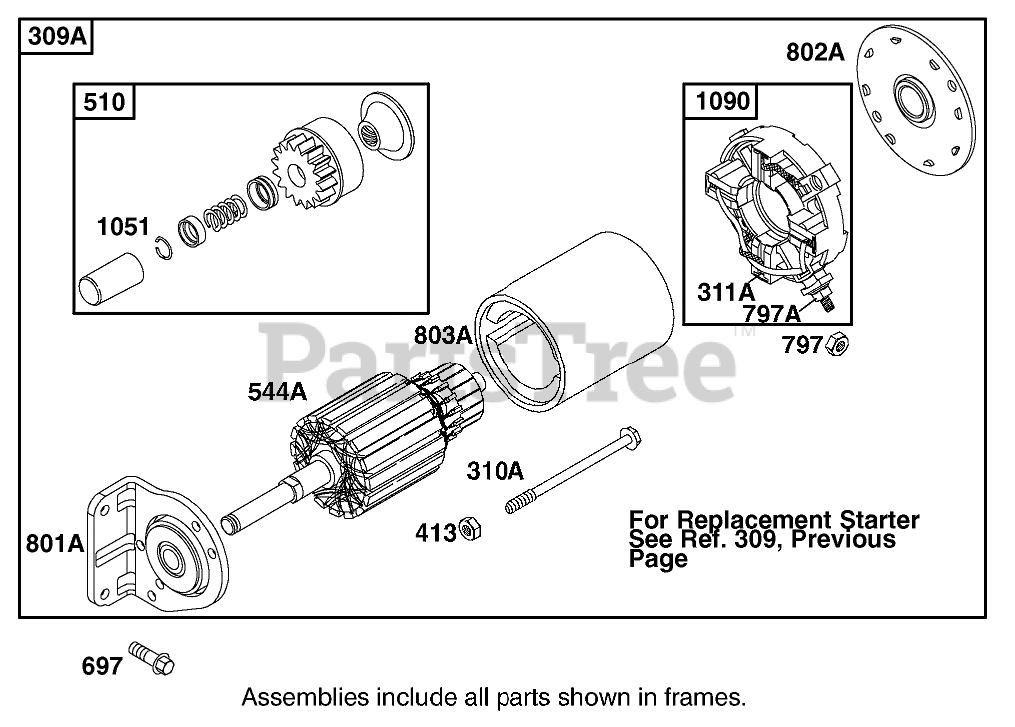

REPLACEMENT STARTER MOTOR ASSEMBLY Parts Diagram

  • Title

309A

Motor-Starter (For Replacement Starter, See Ref. 309, Previous Page)

$

$

Not available

310A

Briggs & Stratton 690323

Bolt

$4.49

$

In Stock, Qty 7

0

311A

Briggs & Stratton 497608

Brush Set

$27.99

$

In Stock, only 3 left!

0

413

Briggs & Stratton 693587

Nut

$4.99

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 496881

Drive-Starter

$

$

Not available

544A

Briggs & Stratton 693548

Armature-Starter

$116.99

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 692062

Screw

$3.49

$

In Stock, Qty 10

0

797

Briggs & Stratton 691029

Nut

$5.49

$

Usually ships in 2-12 days

0

797A

Briggs & Stratton 693167

Nut

$4.49

$

Usually ships in 2-12 days

0

801A

Briggs & Stratton 808778

Cap-Drive

$

$

Not available

802A

Briggs & Stratton 691286

Cap-End

$26.99

$

Usually ships in 2-12 days

0

803A

Briggs & Stratton 693547

Housing-Starter

$

$

Not available

1051

Briggs & Stratton 691124

Ring-Lock

$7.99

$

Usually ships in 2-12 days

0

1090

Briggs & Stratton 691293

Retainer-Brush

$29.99

$

In Stock, Qty 5

0
