12004 TC (1600) - Toro Twister Utility Vehicle (SN: 220000001 - 220999999) (2002) MANIFOLD INTAKE AND GOVERNOR CONTROL ASSEMBLY Parts Diagram

Twister Utility Vehicle

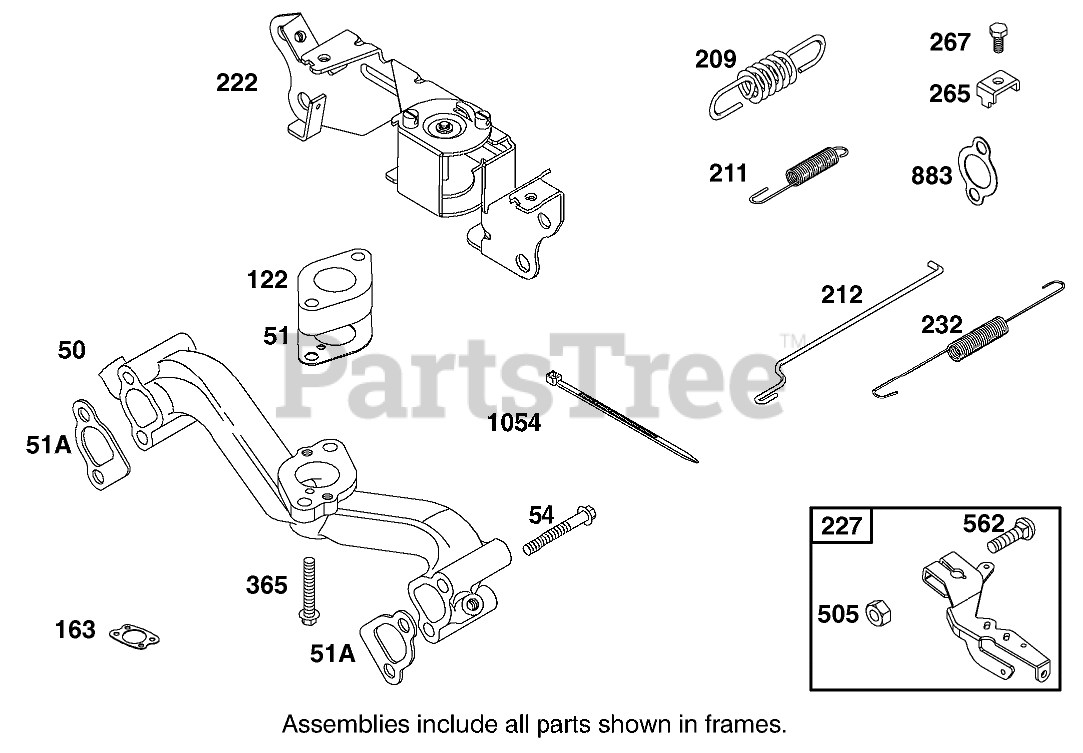

MANIFOLD INTAKE AND GOVERNOR CONTROL ASSEMBLY Parts Diagram

  • Title

50

Briggs & Stratton 690754

Manifold-Intake

$131.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 691694

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$2.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 691694

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$2.99

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 692035

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$3.49

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 692035

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$3.49

$

In Stock, Qty 20+

0

54

Briggs & Stratton 690676

Screw

$4.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 690691

Spacer-Carburetor

$13.99

$

In Stock, only 3 left!

0

163

Briggs & Stratton 692081

Gasket-Cleaner, Air

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, only 4 left!

0

209

Briggs & Stratton 691507

Spring-Governor

$6.49

$

In Stock, Qty 20+

0

211

Briggs & Stratton 691553

Spring-Governed Idle

$5.99

$

Usually ships in 2-12 days

0

212

Briggs & Stratton 690712

Link-Throttle
(Superseded to 847015)

$6.49

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 691570

Bracket-Control
(Superseded to 844169)

$59.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 690236

Lever-Control, Governor

$27.99

$

In Stock, only 1 left!

0

232

Briggs & Stratton 692073

Spring-Link, Governor

$9.49

$

In Stock, only 2 left!

0

265

Briggs & Stratton 691024

Clamp-Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 692083

Screw

$3.49

$

In Stock, only 1 left!

0

505

Briggs & Stratton 690238

Nut

$3.49

$

In Stock, only 1 left!

0

562

Briggs & Stratton 690239

Bolt

$5.49

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 691613

Gasket-Exhaust

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 691613

Gasket-Exhaust

Note: Included in Valve Gasket Set-Ref. 1095.

$5.49

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0
