12004 TC (1600) - Toro Twister Utility Vehicle (SN: 220000001 - 220999999) (2002) LEFT HAND BRAKE ASSEMBLY NO. 104-6807 Parts Diagram

Twister Utility Vehicle

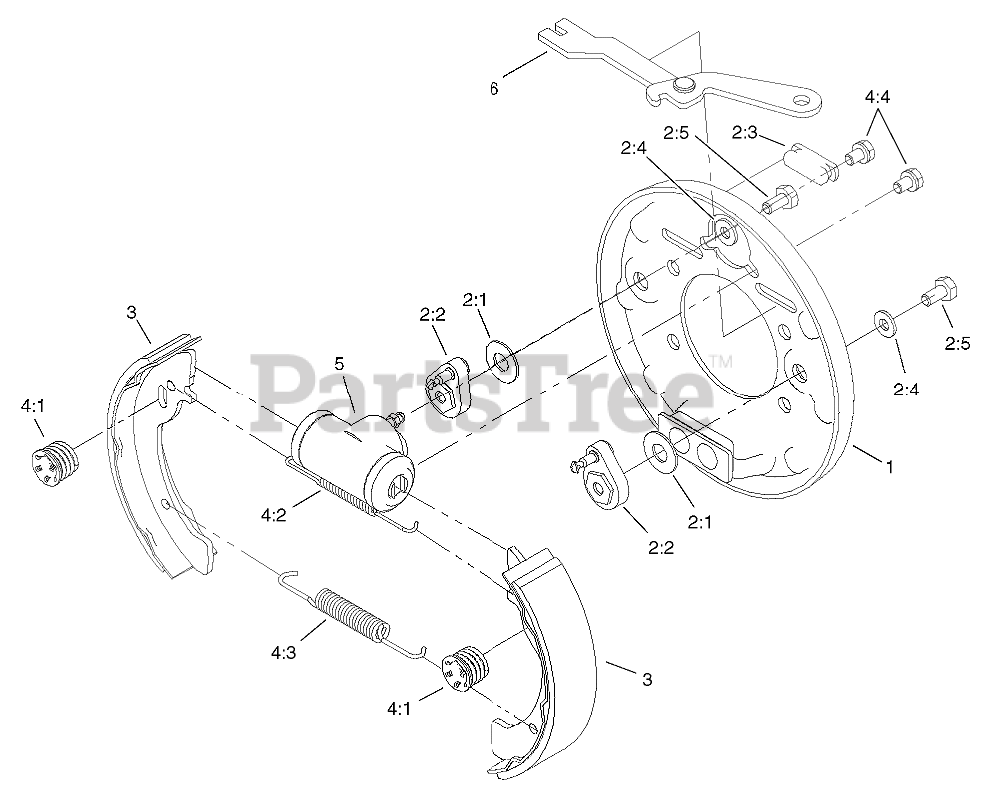

LEFT HAND BRAKE ASSEMBLY NO. 104-6807 Parts Diagram

  • Title

1

Toro 100-8586

BACKING PLATE ASM

$61.99

$

Usually ships in 3-6 days

0

2:1

Toro 100-8585

WASHER-BELLVILLE

$7.99

$

Usually ships in 3-6 days

0

2:2

Toro 100-8588

ADJUSTER LEVER ASM

$75.99

$

Usually ships in 3-6 days

0

2:3

Toro 100-8584

COVER-DUST

$18.99

$

Usually ships in 3-6 days

0

2:4

Washer

Note: Not serviced separately

$

$

Not available

2:5

Bolt

Note: Not serviced separately

$

$

Not available

2

Toro 104-6820

ADJUSTER KIT

$166.99

$

Usually ships in 3-6 days

0

3

Toro 104-6818

SHOE AND LINING KIT

$230.99

$

Usually ships in 3-6 days

0

4:1

Toro 100-8583

SHOE HOLD DOWN SPRING ASM

$12.99

$

Usually ships in 3-6 days

0

4:2

Toro 100-8581

SPRING-UPPER

$18.99

$

Usually ships in 3-6 days

0

4:3

Toro 100-8582

SPRING-LOWER

$15.99

$

Usually ships in 3-6 days

0

4:4

BOLT AND WASHER

Note: Not serviced separately

$

$

Not available

4

Toro 104-6819

HARDWARE KIT

$76.99

$

Usually ships in 3-6 days

0

5

Toro 104-6824

WHEEL CYLINDER ASM

$147.99

$

Usually ships in 3-6 days

0

6

Toro 104-6825

LH PARK BRAKE LEVER ASM

$73.99

$

Usually ships in 3-6 days

0
