12004 TC (1600) - Toro Twister Utility Vehicle (SN: 220000001 - 220999999) (2002) ENGINE GASKET SET Parts Diagram

Twister Utility Vehicle

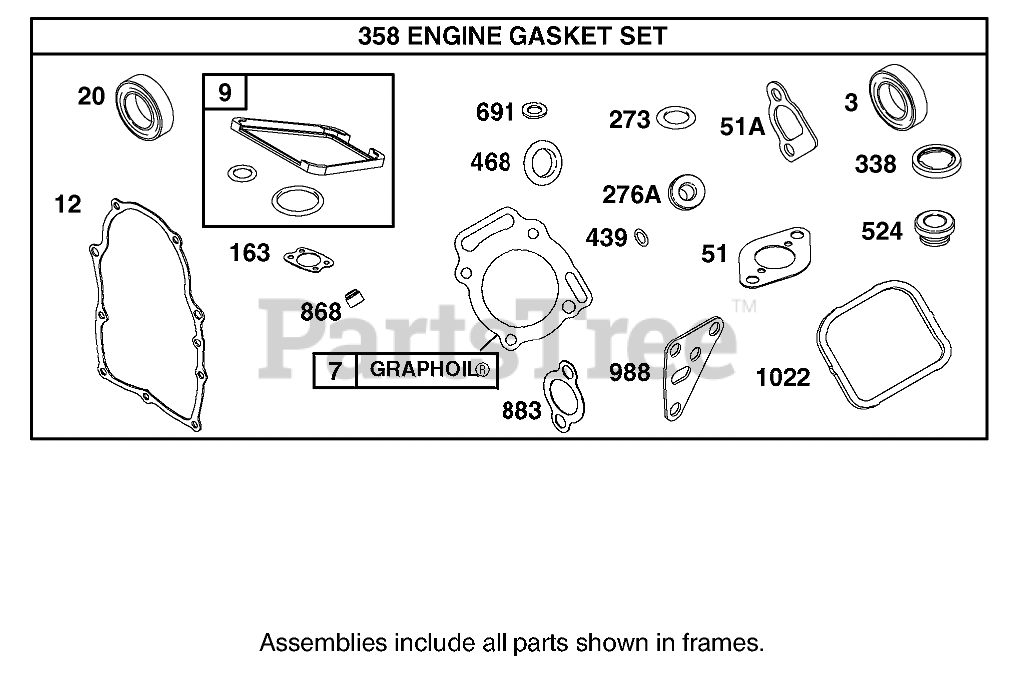

ENGINE GASKET SET Parts Diagram

  • Title

3

Briggs & Stratton 805101

Seal-Oil
(Superseded to 805101S)

Note: Included in Engine Gasket Set-Ref. 358.

$13.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 806085

Gasket-Head, Cylinder
(Superseded to 806085S)

Note: Included in Engine Gasket Set-Ref. 358.

$28.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 806085

Gasket-Head, Cylinder
(Superseded to 806085S)

Note: Included in Valve Gasket Set-Ref. 1095.

$28.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 807893

Breather Gasket
(Superseded to 808988)

Note: Included in Engine Gasket Set-Ref. 358.

$38.99

$

In Stock, Qty 7

0

12

Briggs & Stratton 691684

Gasket-Crankcase
(Superseded to 845254)

Note: Included in Engine Gasket Set-Ref. 358.

$45.99

$

In Stock, Qty 13

0

20

Briggs & Stratton 805049

Seal-Oil
(Superseded to 805049S)

Note: Included in Engine Gasket Set-Ref. 358.

$12.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 691694

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$2.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 691694

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$2.99

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 692035

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$3.49

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 692035

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 692081

Gasket-Cleaner, Air

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, only 4 left!

0

273

Briggs & Stratton 690681

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$5.99

$

In Stock, only 2 left!

0

276A

Briggs & Stratton 691766

Washer-Sealing

Note: Included in Engine Gasket Set-Ref. 358.

$6.49

$

In Stock, Qty 20+

0

276A

Briggs & Stratton 691766

Washer-Sealing

Note: Included in Valve Gasket Set-Ref. 1095.

$6.49

$

In Stock, Qty 20+

0

338

Briggs & Stratton 691312

Seal-O Ring
(Superseded to 809500)

Note: Included in Engine Gasket Set-Ref. 358.

$10.99

$

In Stock, Qty 16

0

338

Briggs & Stratton 691312

Seal-O Ring
(Superseded to 809500)

Note: Included in Valve Gasket Set-Ref. 1095.

$10.99

$

In Stock, Qty 16

0

358

Briggs & Stratton 808390

Engine Gasket Set
(Superseded to 847319)

$123.99

$

In Stock, only 2 left!

0

439

Briggs & Stratton 692154

Seal-O Ring

$5.99

$

In Stock, Qty 20+

0

468

Briggs & Stratton 690690

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$5.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 693172

Seal-Tube, Dipstick

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, only 2 left!

0

691

Briggs & Stratton 690680

Seal-Shaft, Governor
(Superseded to 842826)

Note: Included in Engine Gasket Set-Ref. 358.

$7.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 691963

Seal-Valve

Note: Included in Engine Gasket Set-Ref. 358.

$10.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 691963

Seal-Valve

Note: Included in Valve Gasket Set-Ref. 1095.

$10.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 691613

Gasket-Exhaust

Note: Included in Valve Gasket Set-Ref. 1095.

$5.49

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 691613

Gasket-Exhaust

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

Usually ships in 2-12 days

0

988

Briggs & Stratton 692063

Gasket-Adapter, Oil Filter

Note: Included in Engine Gasket Set-Ref. 358.

$4.49

$

In Stock, only 4 left!

0

1022

Briggs & Stratton 806039

Gasket-Cover, Rocker
(Superseded to 806039S)

Note: Included in Engine Gasket Set-Ref. 358.

$7.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 806039

Gasket-Cover, Rocker
(Superseded to 806039S)

Note: Included in Valve Gasket Set-Ref. 1095.

$7.49

$

In Stock, Qty 20+

0
