12004 TC (1600) - Toro Twister Utility Vehicle (SN: 220000001 - 220999999) (2002) DRIVETRAIN MOUNT ASSEMBLY Parts Diagram

Twister Utility Vehicle

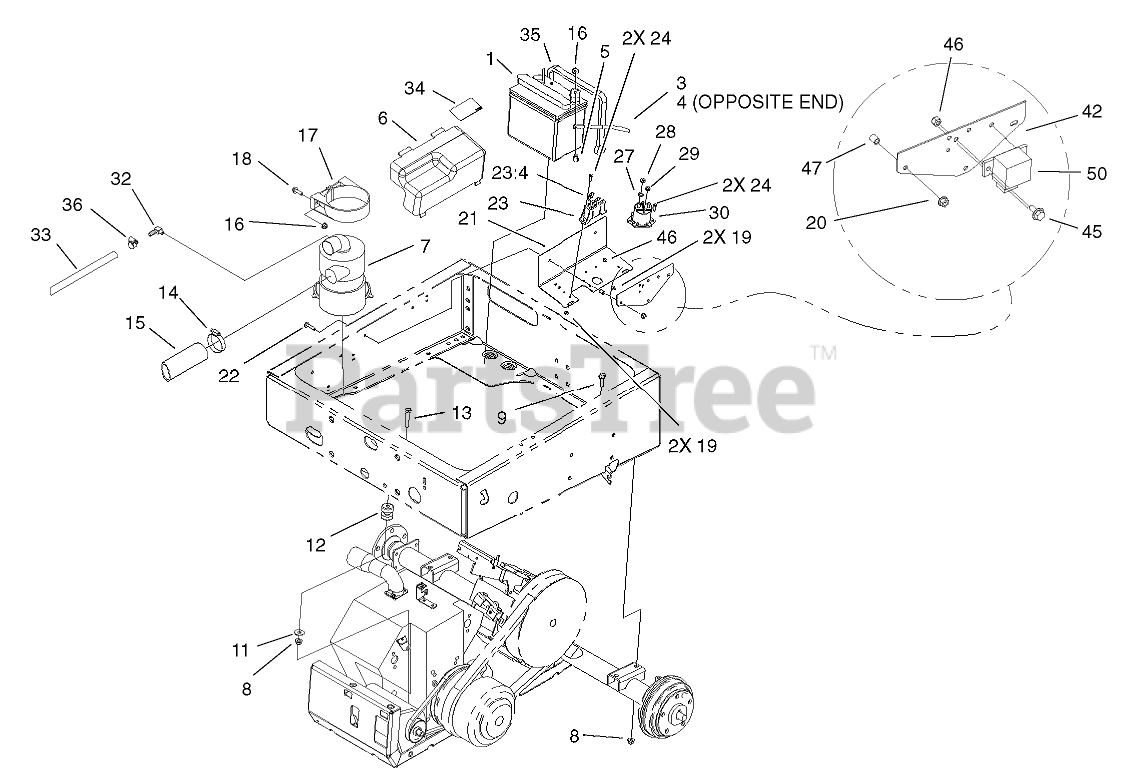

DRIVETRAIN MOUNT ASSEMBLY Parts Diagram

  • Title
1

Toro 92-1678

BATTERY
(Superseded to 104-8162)

$

$

Not available

3

Toro 99-7428

CABLE-NEGATIVE

$

$

Not available

4

Toro 99-7404

CABLE-POSITIVE

$29.99

$

Usually ships in 3-6 days

0

5

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

6

Toro 99-7325

COVER-ELECTRICAL

$89.99

$

Usually ships in 3-6 days

0

7

Toro 99-7120

AIR CLEANER ASM

$145.99

$

Usually ships in 3-6 days

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 3234-24

SCREW-HHF

$3.99

$

In Stock, Qty 18

0

11

Toro 3256-35

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

12

Toro 95-2596

MOUNT-ISO

$45.99

$

Usually ships in 3-6 days

0

13

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 2412-130

CLAMP-HOSE

$4.49

$

Usually ships in 3-6 days

0

15

Toro 104-6528

HOSE-INTAKE

$

$

Not available

16

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

17

Toro 95-5806

BRACKET-MOUNTING

$29.99

$

Usually ships in 3-6 days

0

18

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

19

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, only 2 left!

0

21

Toro 99-7051-03

MOUNT-COMPONENT

$

$

Not available

22

Toro 3234-21

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

23

Toro 99-7439

Harness-Wire, Main

$

$

Not available

23:4

Toro 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

24

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

27

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

28

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

29

Toro 32149-8

NUT-KEPS

$1.49

$

Usually ships in 3-6 days

0

30

Toro 28-4210

SOLENOID

$77.99

$

In Stock, only 1 left!

0

32

Toro 99-7230

FITTING-90 DEG

$47.99

$

Usually ships in 3-6 days

0

33

Toro 99-7842

HOSE-BREATHER

$

$

Not available

34

Toro 99-7958

DECAL-INFORMATION

$

$

Not available

35

Toro 99-7197

STRAP-EPDM

$16.99

$

In Stock, only 1 left!

0

36

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

42

Toro 99-7370-03

BRACKET-IGNITION

$

$

Not available

45

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

46

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

47

Toro 68-0610

SPACER

$

$

Not available

50

Toro 66-8800

RELAY

$105.99

$

Usually ships in 3-6 days

0
