12004 TC (1600) - Toro Twister Utility Vehicle (SN: 220000001 - 220999999) (2002) CYLINDER, OIL FILTER AND DIPSTICK ASSEMBLY Parts Diagram

Twister Utility Vehicle

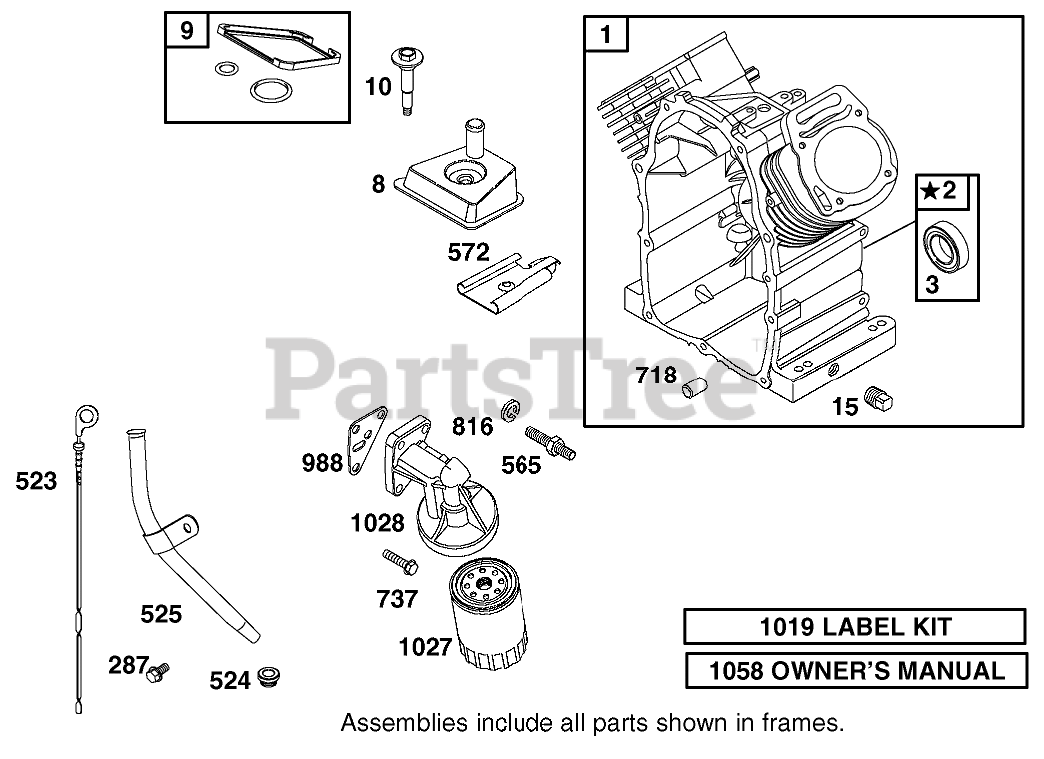

CYLINDER, OIL FILTER AND DIPSTICK ASSEMBLY Parts Diagram

  • Title

1

Briggs & Stratton 692178

Cylinder ASM

$677.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 808534

Bushing-Seal Kit

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 805101

Seal-Oil
(Superseded to 805101S)

Note: Included in Engine Gasket Set-Ref. 358.

$13.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 808984

Breather ASM

$53.99

$

In Stock, Qty 17

0

9

Briggs & Stratton 807893

Breather Gasket
(Superseded to 808988)

Note: Included in Engine Gasket Set-Ref. 358.

$38.99

$

In Stock, Qty 7

0

10

Briggs & Stratton 690751

Screw

$7.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 690946

Plug-Drain, Oil

$5.99

$

In Stock, Qty 14

0

287

Briggs & Stratton 692062

Screw

$3.49

$

In Stock, Qty 20+

0

523

Briggs & Stratton 693175

Dipstick

$26.99

$

In Stock, Qty 17

0

524

Briggs & Stratton 693172

Seal-Tube, Dipstick

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, only 2 left!

0

525

Briggs & Stratton 693173

Tube-Dipstick

$24.99

$

Usually ships in 2-12 days

0

565

Briggs & Stratton 690682

Stud

$4.49

$

Usually ships in 2-12 days

0

572

Briggs & Stratton 690686

Baffle-Breather

$14.99

$

In Stock, only 1 left!

0

718

Briggs & Stratton 690684

Pin-Locating
(Superseded to 806469)

$5.99

$

In Stock, only 2 left!

0

737

Briggs & Stratton 690679

Screw

$3.49

$

Usually ships in 2-12 days

0

816

Briggs & Stratton 690706

Washer

$3.99

$

In Stock, only 2 left!

0

988

Briggs & Stratton 692063

Gasket-Adapter, Oil Filter

Note: Included in Engine Gasket Set-Ref. 358.

$4.49

$

In Stock, only 4 left!

0

1019

Toro 808036

Label Kit

$

$

Currently unavailable

1027

Briggs & Stratton 492932

Filter-Oil
(Superseded to 492932S)

$12.99

$

In Stock, Qty 20+

0

1028

Briggs & Stratton 808235

Adapter-Filter, Oil

$78.99

$

Usually ships in 2-12 days

0

1058

Toro 274790

Owner-s Manual(Emission Engines)

$

$

Currently unavailable
