12004 TC (1600) - Toro Twister Utility Vehicle (SN: 220000001 - 220999999) (2002) CRANKSHAFT, PISTON AND OIL PUMP ASSEMBLY Parts Diagram

Twister Utility Vehicle

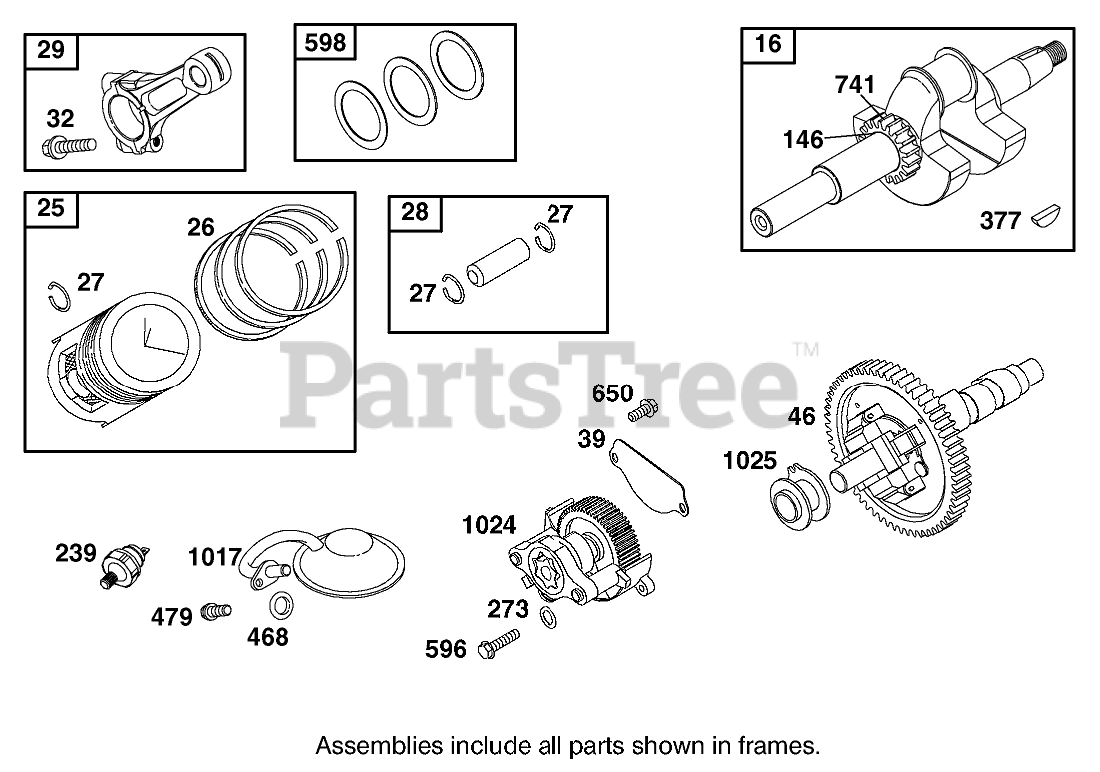

CRANKSHAFT, PISTON AND OIL PUMP ASSEMBLY Parts Diagram

  • Title

16

Briggs & Stratton 692163

Crankshaft
(Superseded to 84004505)

$451.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 807619

Piston ASM (Standard)
(Superseded to 843951)

$

$

Not available

Briggs & Stratton 807807

Piston ASM (.010 Oversize)

$96.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 807809

Piston ASM (.020 Oversize)
(Superseded to 843958)

$

$

Not available

Briggs & Stratton 807811

Piston ASM (.030 Oversize)

$95.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 807620

Ring Set (Standard)
(Superseded to 843951)

$

$

Not available

Briggs & Stratton 807808

Ring Set (.010 Oversize)

$34.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 807810

Ring Set (.020 Oversize)
(Superseded to 843958)

$

$

Not available

Briggs & Stratton 807812

Ring Set (.030 Oversize)

$45.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 690683

Lock-Pin, Piston

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 807621

Pin-Piston

$17.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 807900

Rod-Connecting (Standard)
(Superseded to 807900S)

$

$

Not available

32

Briggs & Stratton 690698

Screw

$7.49

$

In Stock, only 1 left!

0

39

Briggs & Stratton 690745

Deflector-Oil

$6.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 691557

Camshaft
(Superseded to 845649)

$184.99

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 691639

Key-Timing

$4.49

$

In Stock, Qty 5

0

239

Briggs & Stratton 690233

Switch-Pressure, Oil

$28.99

$

In Stock, only 2 left!

0

273

Briggs & Stratton 690681

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$5.99

$

In Stock, only 2 left!

0

377

Briggs & Stratton 808095

Key-Woodruff

$13.99

$

Usually ships in 2-12 days

0

468

Briggs & Stratton 690690

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$5.99

$

Usually ships in 2-12 days

0

479

Briggs & Stratton 692537

Screw
(Superseded to 807084)

$3.49

$

In Stock, Qty 7

0

596

Briggs & Stratton 691492

Screw

$3.99

$

In Stock, only 2 left!

0

598

Briggs & Stratton 807625

Shim-Play, End

$19.99

$

Usually ships in 2-12 days

0

650

Briggs & Stratton 692539

Screw
(Superseded to 841233)

$3.49

$

In Stock, Qty 20+

0

741

Briggs & Stratton 691530

Gear-Timing
(Superseded to 846085)

$19.99

$

Usually ships in 2-12 days

0

1017

Briggs & Stratton 690900

Screen-Pump, Oil

$29.99

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 693185

Pump-Oil

$71.99

$

Usually ships in 2-12 days

0

1025

Briggs & Stratton 690689

Spool-Governor

$22.99

$

In Stock, only 2 left!

0
