12004 TC (1600) - Toro Twister Utility Vehicle (SN: 220000001 - 220999999) (2002) ALTERNATOR ASSEMBLY Parts Diagram

Twister Utility Vehicle

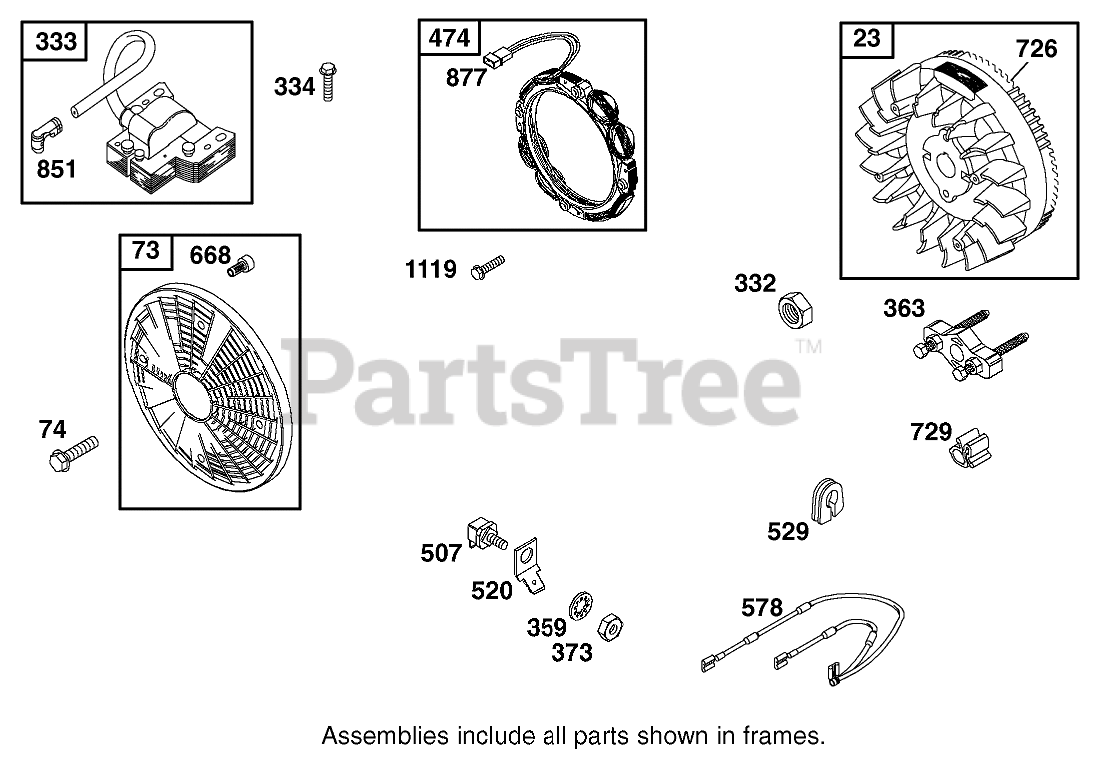

ALTERNATOR ASSEMBLY Parts Diagram

  • Title

23

Briggs & Stratton 808766

Flywheel

$

$

Not available

73

Briggs & Stratton 494439

Screen-Rotating

$53.99

$

In Stock, Qty 10

0

74

Briggs & Stratton 691647

Screw

$3.99

$

In Stock, only 4 left!

0

171

Briggs & Stratton 810056

Nut

$3.49

$

Usually ships in 2-12 days

0

284

Briggs & Stratton 93410

Screw

$7.99

$

In Stock, only 1 left!

0

332

Briggs & Stratton 690887

Nut

$5.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 692066

Screw

$3.49

$

In Stock, Qty 7

0

359

Briggs & Stratton 691077

Washer

$3.49

$

In Stock, only 2 left!

0

363

Briggs & Stratton 19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 691612

Nut

$3.49

$

In Stock, only 1 left!

0

474

Briggs & Stratton 691064

Alternator
(Superseded to 592830)

$101.99

$

In Stock, Qty 20+

0

507

Briggs & Stratton 691972

Insulator

$8.49

$

In Stock, only 3 left!

0

520

Briggs & Stratton 691084

Terminal-Ground

$6.49

$

In Stock, only 2 left!

0

529

Briggs & Stratton 690744

Grommet

$7.49

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 692319

Wire ASM

$17.99

$

In Stock, Qty 20+

0

668

Briggs & Stratton 691500

Spacer

$7.49

$

Usually ships in 2-12 days

0

726

Gear-Ring

$

$

Not available

729

Briggs & Stratton 690586

Clip-Wire

$3.99

$

In Stock, only 3 left!

0

851

Briggs & Stratton 493880

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

877

Briggs & Stratton 399916

Connector-Wire, Alternator

$12.99

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691552

Screw

$3.99

$

Usually ships in 2-12 days

0
