12004 (1600) - Toro Twister Utility Vehicle (SN: 240000001 - 240999999) (2004) HOOD AND FENDER ASSEMBLY Parts Diagram

Twister Utility Vehicle

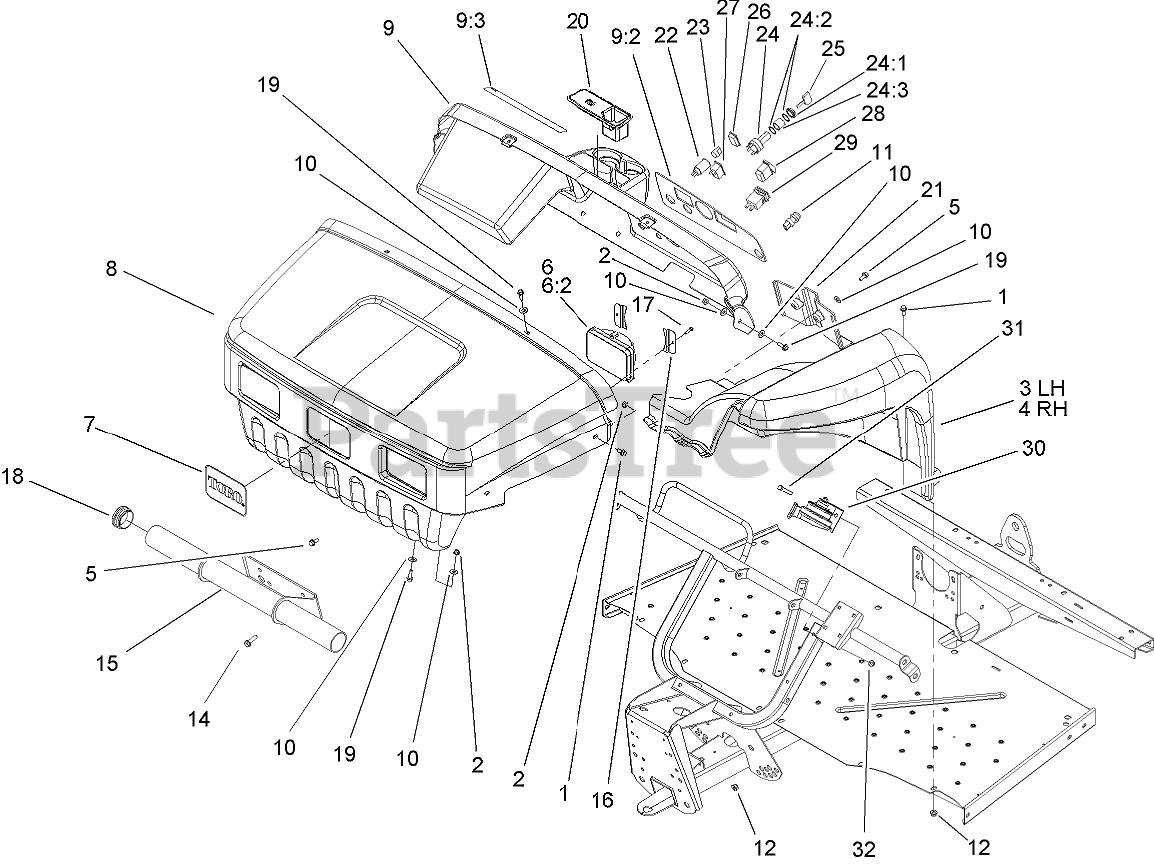

HOOD AND FENDER ASSEMBLY Parts Diagram

  • Title
1

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

2

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

3

Toro 104-7078

LH FENDER ASM

$

$

Not available

4

Toro 104-7079

RH FENDER ASM

$

$

Not available

5

Toro 104-7206

SCREW-HHF
(Superseded to 32104-32)

$2.49

$

In Stock, only 3 left!

0

6

Toro 87-2120

HEADLIGHT

$142.99

$

Usually ships in 3-6 days

0

6:2

Toro 87-6330

LENS-HEADLIGHT
(Superseded to 87-2120)

$142.99

$

Usually ships in 3-6 days

0

6:1

Toro 95-0909

LAMP-12 VOLT

Note: Not illustrated

$37.99

$

Usually ships in 3-6 days

0

7

Toro 62-5550

DECAL

$10.99

$

In Stock, only 2 left!

0

8

Toro 99-7379

HOOD ASM
(Superseded to 119-2192)

$

$

Not available

9

Toro 107-0705

DASH ASM

$

$

Not available

9:2

Toro 107-0704

DECAL-WARNING

$

$

Not available

9:3

Toro 99-7344

DECAL-DANGER
(Superseded to 121-9775)

$17.99

$

Usually ships in 3-6 days

0

10

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 18-2830

BUTTON-HORN

$179.99

$

Usually ships in 3-6 days

0

12

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

$

$

Not available

15

Toro 99-7840-03

BUMPER-TUBE

$

$

Not available

16

Toro 99-7947

BRACKET-HEADLIGHT

$

$

Not available

17

Toro 99-7331

SCREW-HWH

$

$

Not available

18

Toro 2410-42

CAP-END

$14.99

$

In Stock, only 2 left!

0

19

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

20

Toro 104-6930

PLUG-RUBBER

$59.99

$

Usually ships in 3-6 days

0

21

Toro 104-7075

COVER-CHANNEL

$

$

Not available

22

Toro 99-7411

POINT-POWER

$37.99

$

Usually ships in 3-6 days

0

23

$9.49

$

In Stock, only 1 left!

0

24

Toro 104-6929

Switch-Ignition

$50.99

$

Usually ships in 3-6 days

0

24:1

Toro 104-7042

NUT-SWITCH, PLASTIC

$3.99

$

Usually ships in 3-6 days

0

24:2

Toro 104-7019

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

24:3

Toro 104-7021

SPACER-SWITCH

$

$

Not available

25

Toro 99-7418

KEY-IGNITION

$12.99

$

Usually ships in 3-6 days

0

26

Toro 99-7420

PLUG-HOLE

$8.49

$

Usually ships in 3-6 days

0

27

Toro 99-7410

INDICATOR-LIGHT, LOW-OIL PRESSURE

$29.99

$

Usually ships in 3-6 days

0

28

Toro 95-8999

SWITCH

$44.99

$

In Stock, only 1 left!

0

29

Toro 94-4208

HOURMETER
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

30

$140.99

$

Usually ships in 3-6 days

0

31

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

32

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0
