12004 (1600) - Toro Twister Utility Vehicle (SN: 240000001 - 240999999) (2004) ENGINE AND CLUTCH ASSEMBLY Parts Diagram

Twister Utility Vehicle

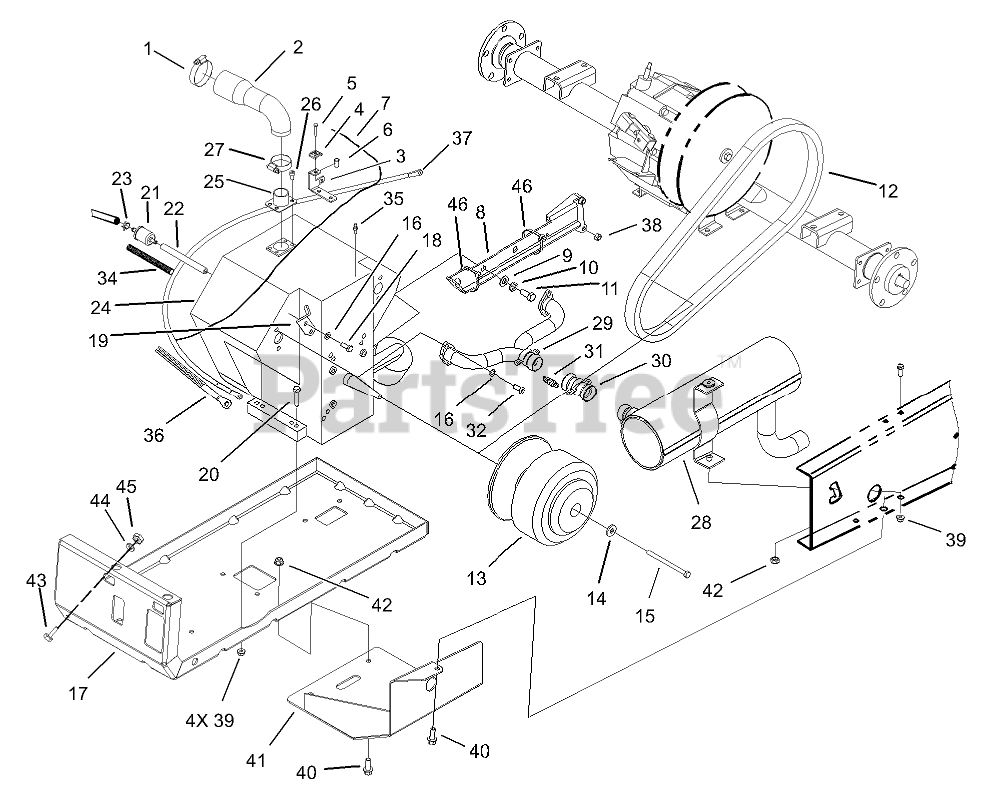

ENGINE AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 2412-130

CLAMP-HOSE

$4.49

$

Usually ships in 3-6 days

0

2

Toro 99-7106

HOSE-INTAKE

$96.99

$

Usually ships in 3-6 days

0

3

Toro 99-7097

BRACKET-CABLE

$

$

Not available

4

Toro 81-1690

CLAMP-CABLE

$2.99

$

Usually ships in 3-6 days

0

5

Toro 3290-432

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

6

Toro 32148-14

INSERT-THREADED

$1.99

$

Usually ships in 3-6 days

0

7

Toro 104-7169

Cable-Accelerator
(Superseded to 108-6951)

$92.99

$

Usually ships in 3-6 days

0

8

Toro 104-6631-03

TORQUE ARM ASM

$

$

Not available

9

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

10

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 324-4

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

12

Toro 99-7144

BELT-DRIVE

$85.99

$

In Stock, only 2 left!

0

13

Toro 99-7939

CLUTCH-DRIVE
(Superseded to 119-7991)

$1726.99

$

Usually ships in 3-6 days

0

14

Toro 5-0838

WASHER

$4.99

$

In Stock, only 1 left!

0

15

Toro 99-7201

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

16

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 104-6433-03

MOUNT-ENGINE

$

$

Not available

18

Toro 66-3160

SCREW-CAP
(Superseded to 33114-020)

$0.99

$

In Stock, Qty 13

0

19

Toro 104-7152

Bracket-Cable, Throttle

$15.99

$

Usually ships in 3-6 days

0

20

Toro 322-8

SCREW-HH

$3.49

$

In Stock, Qty 6

0

21

Toro 94-2690

FILTER-FUEL

$6.99

$

In Stock, Qty 5

0

22

Toro 47-2966

HOSE-FUEL
(Superseded to 109-0678)

$5.49

$

Usually ships in 3-6 days

0

23

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

24

Toro 104-6649

ENGINE-BRIGGS & STRATTON, 303447-1319-E1
(Superseded to 117-2715)

$

$

Not available

25

Toro 99-7083

BRACKET-INTAKE

$

$

Not available

26

Toro 99-7202

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

27

Toro 2412-3

CLAMP-HOSE

$4.99

$

Usually ships in 3-6 days

0

28

Toro 104-6475

MUFFLER-ENGINE

$

$

Not available

29

Toro 104-6476

MANIFOLD-ENGINE

$275.99

$

Usually ships in 3-6 days

0

30

Toro 104-6477

COUPLER-EXHAUST

$72.99

$

Usually ships in 3-6 days

0

31

Toro 104-6478

SPRING-EXTENSION

$15.99

$

In Stock, only 3 left!

0

32

Toro 3274-96

SCREW-HSBH

$3.49

$

Usually ships in 3-6 days

0

34

Toro 99-7377

CONDUIT-LINE, FUEL

$10.99

$

Usually ships in 3-6 days

0

35

Toro 99-7847

BALL-STUD

$31.99

$

Usually ships in 3-6 days

0

36

Toro 99-7426

HARNESS-WIRE, ENGINE

$

$

Not available

37

Toro 28-3894

POSITIVE WIRE ASM

$

$

Not available

38

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

39

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

40

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

41

Toro 104-6408-03

CLUTCH GUARD ASM

$

$

Not available

42

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

43

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

44

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

45

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, only 2 left!

0

46

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0
