12004 (1600) - Toro Twister Utility Vehicle (SN: 220000001 - 220999999) (2002) VALVE GASKET SET AND CARBURETOR OVERHAUL KIT Parts Diagram

Twister Utility Vehicle

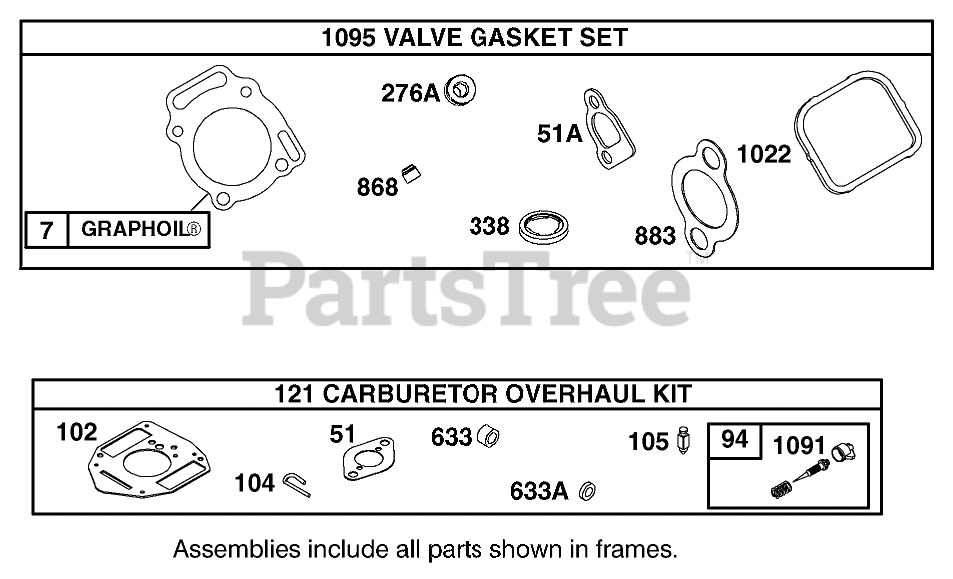

VALVE GASKET SET AND CARBURETOR OVERHAUL KIT Parts Diagram

  • Title

7

Briggs & Stratton 806085

Gasket-Head, Cylinder
(Superseded to 806085S)

Note: Included in Valve Gasket Set-Ref. 1095.

$28.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 806085

Gasket-Head, Cylinder
(Superseded to 806085S)

Note: Included in Engine Gasket Set-Ref. 358.

$28.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 691694

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$2.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 691694

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$2.99

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 692035

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$3.49

$

In Stock, Qty 17

0

51A

Briggs & Stratton 692035

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$3.49

$

In Stock, Qty 17

0

94

Briggs & Stratton 808257

Idle Mixture Kit
(Superseded to 842870)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$44.99

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 692077

Gasket-Body, Carburetor

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$25.99

$

In Stock, Qty 20+

0

104

Briggs & Stratton 690723

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$9.49

$

In Stock, only 3 left!

0

105

Briggs & Stratton 692078

Valve-Needle, Float
(Superseded to 808798)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Not available

121

Briggs & Stratton 809023

Carburetor Overhaul Kit
(Superseded to 842878)

$

$

Not available

276A

Briggs & Stratton 691766

Washer-Sealing

Note: Included in Engine Gasket Set-Ref. 358.

$6.49

$

In Stock, Qty 20+

0

276A

Briggs & Stratton 691766

Washer-Sealing

Note: Included in Valve Gasket Set-Ref. 1095.

$6.49

$

In Stock, Qty 20+

0

338

Briggs & Stratton 691312

Seal-O Ring
(Superseded to 809500)

Note: Included in Valve Gasket Set-Ref. 1095.

$10.99

$

In Stock, Qty 15

0

338

Briggs & Stratton 691312

Seal-O Ring
(Superseded to 809500)

Note: Included in Engine Gasket Set-Ref. 358.

$10.99

$

In Stock, Qty 15

0

633

Briggs & Stratton 806131

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$5.99

$

Usually ships in 2-12 days

0

633A

Briggs & Stratton 690722

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$15.99

$

In Stock, only 4 left!

0

868

Briggs & Stratton 691963

Seal-Valve

Note: Included in Engine Gasket Set-Ref. 358.

$10.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 691963

Seal-Valve

Note: Included in Valve Gasket Set-Ref. 1095.

$10.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 691613

Gasket-Exhaust

Note: Included in Valve Gasket Set-Ref. 1095.

$5.49

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 691613

Gasket-Exhaust

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 806039

Gasket-Cover, Rocker
(Superseded to 806039S)

Note: Included in Engine Gasket Set-Ref. 358.

$7.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 806039

Gasket-Cover, Rocker
(Superseded to 806039S)

Note: Included in Valve Gasket Set-Ref. 1095.

$7.49

$

In Stock, Qty 20+

0

1091

Briggs & Stratton 691516

Cap-Limiter

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$8.49

$

Usually ships in 2-12 days

0

1095

Briggs & Stratton 808392

Valve Gasket Set

$83.99

$

Usually ships in 2-12 days

0
