12004 (1600) - Toro Twister Utility Vehicle (SN: 220000001 - 220999999) (2002) REAR TIRE AND TRANSAXLE ASSEMBLY Parts Diagram

Twister Utility Vehicle

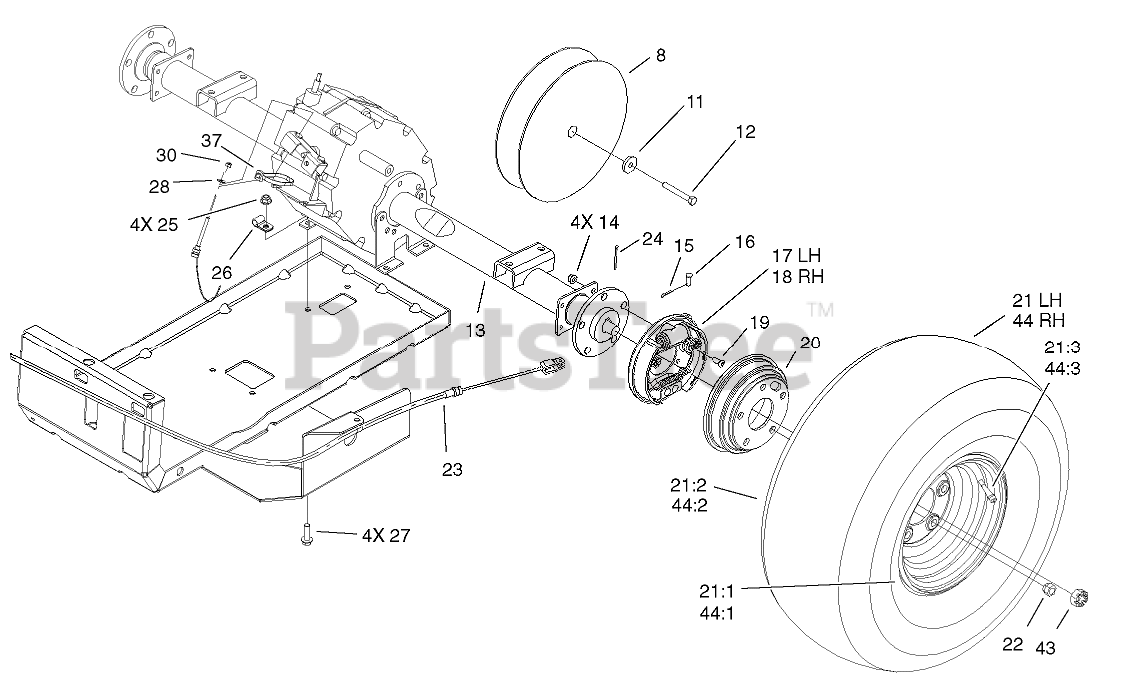

REAR TIRE AND TRANSAXLE ASSEMBLY Parts Diagram

  • Title

8

Toro 99-7104

CLUTCH-DRIVEN
(Superseded to 119-7990)

$1114.99

$

Usually ships in 3-6 days

0

11

Toro 104-6563

WASHER-STEPPED

$11.99

$

Usually ships in 3-6 days

0

12

Toro 104-6564

Screw-HH

$5.49

$

In Stock, only 1 left!

0

13

Toro 104-6898

Transaxle

$

$

Not available

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

15

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

16

Toro 283-62

PIN-CLEVIS

$2.49

$

In Stock, Qty 10

0

17

Toro 104-6807

LH BRAKE ASM

$520.99

$

Usually ships in 3-6 days

0

18

Toro 104-6806

RH BRAKE ASM

$520.99

$

Usually ships in 3-6 days

0

19

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

20

Toro 104-6500

DRUM-BRAKE

$79.99

$

Usually ships in 3-6 days

0

21

Toro 104-6830

TIRE AND WHEEL ASM

$

$

Not available

21:1

Toro 104-6889

WHEEL-5 BOLT

$193.99

$

In Stock, only 1 left!

0

21:2

Toro 104-7061

TIRE

$406.99

$

Usually ships in 3-6 days

0

21:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

22

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

23

Toro 104-6846

CABLE-BRAKE, PARK

$237.99

$

Usually ships in 3-6 days

0

24

Toro 3272-42

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

25

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro 2412-10

R-CLAMP

$3.99

$

Usually ships in 3-6 days

0

27

Toro 3234-24

SCREW-HHF

$3.99

$

In Stock, Qty 18

0

28

Toro 3256-49

WASHER-PLAIN

$0.99

$

In Stock, Qty 8

0

30

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

37

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

43

Toro 104-1656

NUT-CASTLE

$14.99

$

Usually ships in 3-6 days

0

44

TIRE AND WHEEL ASM

$

$

Not available

44:1

Toro 104-6889

WHEEL-5 BOLT

$193.99

$

In Stock, only 1 left!

0

44:2

Toro 104-7061

TIRE

$406.99

$

Usually ships in 3-6 days

0

44:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0
