1200 - Lawn-Boy 18" Walk-Behind Mower (SN: 900000001 - 999999999) (1959) Models 2210 And 4210 Mowers Parts Diagram

18" Walk-Behind Mower

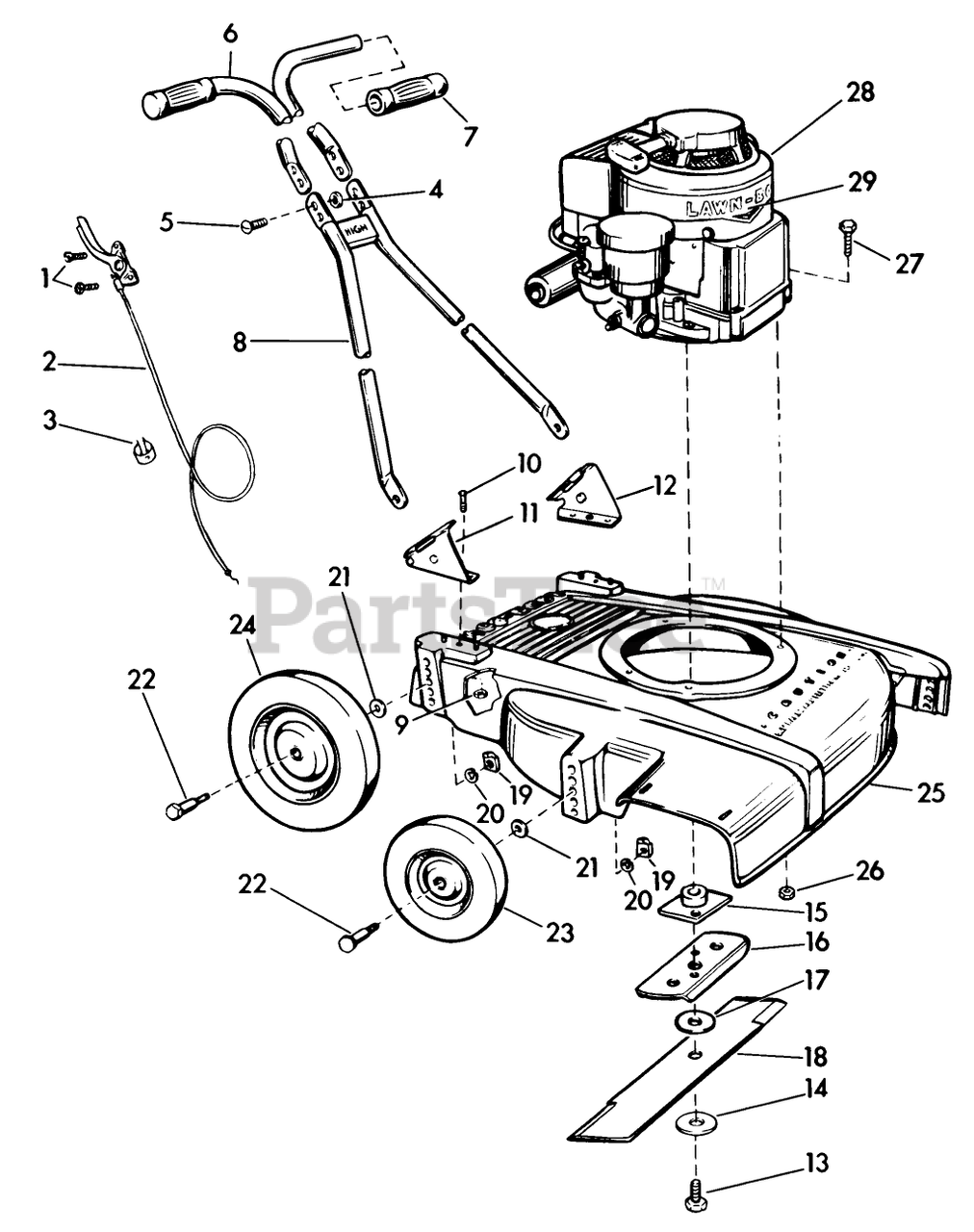

Models 2210 And 4210 Mowers Parts Diagram

  • Title
1

Lawn-Boy 602012

DISCONTINUED

$

$

Not available

2

Lawn-Boy 677595

DISCONTINUED

$

$

Not available

3

Lawn-Boy 603323

Clip-Control Cable

$

$

Currently unavailable

4

Lawn-Boy 602201

STOP NUT

$

$

Not available

5

Lawn-Boy 602025

DISCONTINUED

$

$

Not available

6

Lawn-Boy 677596

DISCONTINUED

$

$

Not available

7

Lawn-Boy 603025

DISCONTINUED

$

$

Not available

8

Lawn-Boy 677355

DISCONTINUED

$

$

Not available

$

$

Not available

10

Lawn-Boy 602693

DISCONTINUED

$

$

Not available

11

Lawn-Boy 677118

DISCONTINUED

$

$

Not available

12

Lawn-Boy 677117

DISCONTINUED

$

$

Not available

13

Lawn-Boy 603324

Stud-Blade Mounting

$

$

Currently unavailable

14

Lawn-Boy 603318

Washer-Blade Mounting

$

$

Currently unavailable

15

Lawn-Boy 677525

PLATE AND COLLAR ASM

$51.99

$

In Stock, only 3 left!

0

16

Lawn-Boy 603542

Stiffener-Blade

$

$

Currently unavailable

17

Lawn-Boy 602178

DISCONTINUED

$

$

Not available

18

Lawn-Boy 603315

Blade-18"

$

$

Currently unavailable

18

Lawn-Boy 603316

Blade-21"

$

$

Currently unavailable

$

$

Not available

20

Lawn-Boy 120177

WASHER, LOCK

$

$

Not available

21

Lawn-Boy 602627

DISCONTINUED

$

$

Not available

22

$

$

Not available

23

Lawn-Boy 677533

DISCONTINUED

$

$

Not available

24

Lawn-Boy 677534

DISCONTINUED

$

$

Not available

25

Lawn-Boy 603034

Housing-18"

$

$

Currently unavailable

25

Lawn-Boy 603523

Housing-21"

$

$

Currently unavailable

$

$

Not available

27

$

$

Currently unavailable

28

Engine-Model 8BHS, Briggs and Stratton

$

$

Not available

29

$

$

Currently unavailable
