1200 C - Weed Eater String Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

String Trimmer, Electric

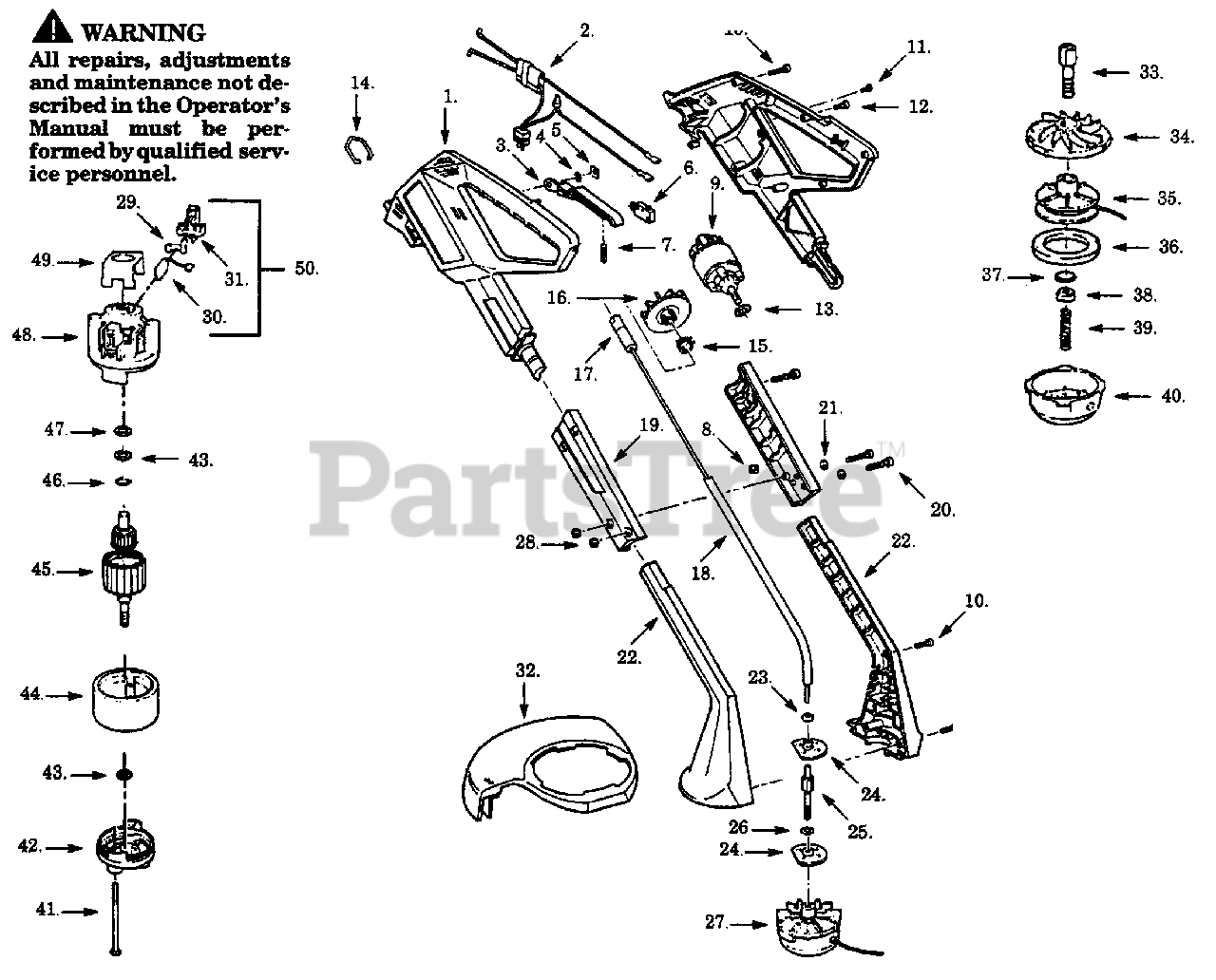

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 534787902

Motor Hsg. Set

$27.99

$

Usually ships in 3-10 days

0

2

Poulan 534789301

Harness

$

$

Not available

3

Poulan 534788305

Trigger

$2.49

$

Usually ships in 3-10 days

0

4

Poulan 534228802

Washer

$

$

Not available

5

Poulan 534790800

Push Nut

$1.49

$

Usually ships in 3-10 days

0

6

Poulan 534789000

Switch

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 534790700

Trigger Spring

$2.49

$

Usually ships in 3-10 days

0

8

Poulan 534808100

Square Nut

$

$

Not available

9

Poulan 534768301

Motor Ass'y.

$91.99

$

Usually ships in 3-10 days

0

10

Poulan 534790300

Screw

$

$

Not available

11

Poulan 534731402

Screw

$

$

Not available

12

Poulan 534790301

Screw

$

$

Not available

13

Poulan 534757900

Washer

$2.49

$

Usually ships in 3-10 days

0

14

Poulan 534270100

Hanger

$2.49

$

Usually ships in 3-10 days

0

15

Poulan 534560103

Fan Clamp

$2.49

$

Usually ships in 3-10 days

0

16

Poulan 534526802

Fan

$

$

Not available

17

Poulan 534788505

Flex Shaft Ass'y.

$14.99

$

Usually ships in 3-10 days

0

18

Poulan 534788902

Sleeve Tubing

$

$

Not available

19

Poulan 534788102

Housing Clamp

$

$

Not available

20

Poulan 534799500

Screw

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 534828701

Washer

$

$

Not available

22

Poulan 534788005

Spindle Housing

$18.99

$

Usually ships in 3-10 days

0

23

Poulan 534636002

Washer

$2.49

$

Usually ships in 3-10 days

0

24

Poulan 534790600

Bearing Holder Disk

$

$

Not available

25

Poulan 534789901

Shaft Adapter

$10.99

$

Usually ships in 3-10 days

0

26

Poulan 534228802

Washer

$

$

Not available

27

Poulan 534167005

Head Ass'y. (Model 1000C)

$

$

Not available

27

Poulan 534167011

Head Ass'y. (Model 1200C)

$91.99

$

Usually ships in 3-10 days

0

28

Poulan 534790500

Nut

$3.49

$

In Stock, Qty 6

0

29

Poulan 534228000

Brush Spring

$

$

Not available

30

Poulan 534227800

Brush

$

$

Not available

31

Poulan 534227700

Brush Holder

$

$

Not available

32

Poulan 534790200

Guard Ass'y. (Model 1000C)

$12.99

$

Usually ships in 3-10 days

0

32

Poulan 534846100

Guard Ass'y. (Model 1200C)

$

$

Not available

33

Poulan 534787800

Shaft Adapter

$

$

Not available

34

Poulan 534167215

Rear Plate

$

$

Not available

35

Poulan 952710514

Spool & Line (Model 1000C)

$

$

Not available

35

Poulan 952710512

Spool & Line (Model 1200C)

$

$

Not available

36

Poulan 534167700

Foam Pad

$

$

Not available

37

Poulan 534316200

O-Ring

$1.49

$

In Stock, only 1 left!

0

38

Poulan 534166700

Adapter Nut

$3.99

$

In Stock, only 1 left!

0

39

Poulan 534819200

Spring

$

$

Not available

40

Poulan 534167935

Hub Ass'y. (Model 1000C)

$

$

Not available

40

Poulan 534167925

Hub Ass'y. (Model 1200C)

$

$

Not available

41

Poulan 534228703

Screw

$

$

Not available

42

Poulan 534227601

Endbell Ass'y. (Drive)

$

$

Not available

43

Poulan 534228800

Washer

$2.49

$

Usually ships in 3-10 days

0

44

Poulan 534227004

Field Ass'y.

$27.99

$

Usually ships in 3-10 days

0

45

Poulan 534767701

Armature Ass'y.

$42.99

$

Usually ships in 3-10 days

0

46

Poulan 534246700

Retaining Ring

$1.49

$

Usually ships in 3-10 days

0

47

Poulan 534238903

Washer

$

$

Not available

48

Poulan 534227501

Endbell Ass'y. (Brush)

$

$

Not available

49

Poulan 534226000

Insulator

$

$

Not available

50

Poulan 534450400

Brush Kit (Incl. 29,30,31)

$

$

Not available
