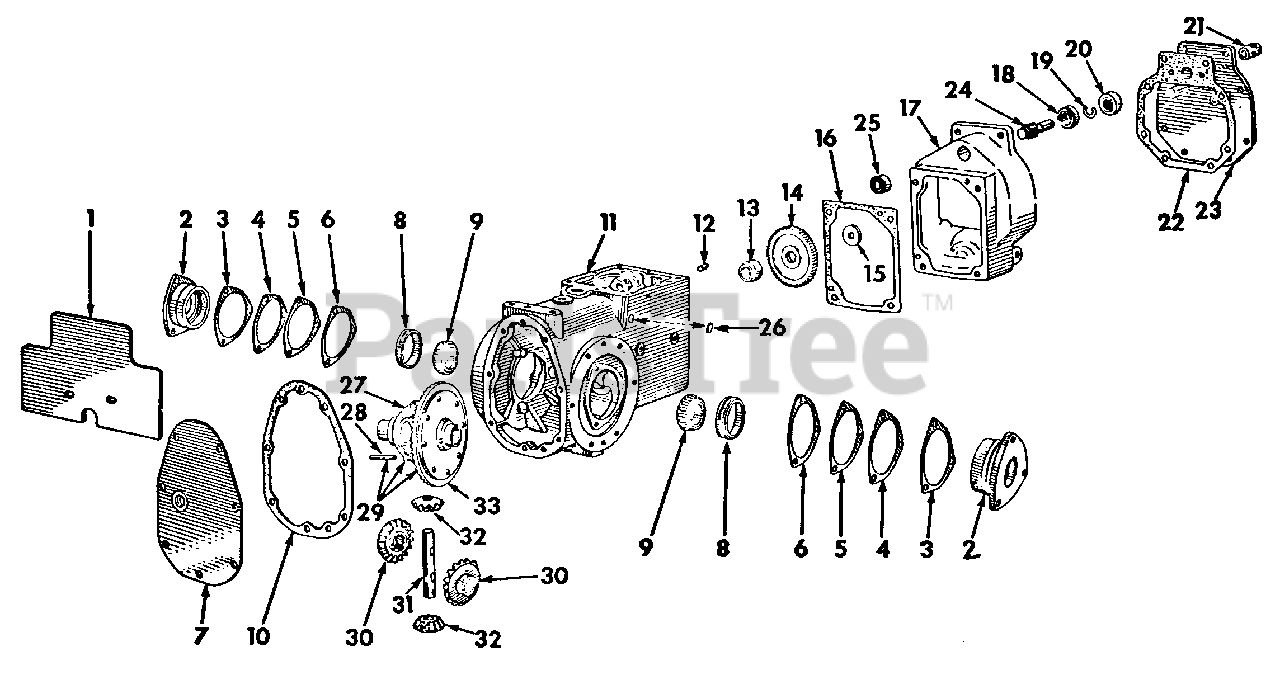

1200 (2050570U) - Cub Cadet Garden Tractor Transmission Case, Differential & Reduction Housing Parts Diagram

Garden Tractor

Transmission Case, Differential & Reduction Housing Parts Diagram

  • Title

1

Not used in this application

$

$

Not available

2

Cub Cadet IH-376158-R91

Cage w/Cup IH-ST974, Differential Brg

$

$

Currently unavailable

Cub Cadet IH-24840-R1

Screw, 3/8-16 x 1 Hex Hd Cap

$

$

Not available

Washer, 3/8 Med Lock

Note: Common Hardware Purchase Locally

$

$

Not available

3

Cub Cadet 717-3097

Shim, Differential Brg Retainer, .004

$

$

Not available

4

Cub Cadet 717-3098

Shim, Differential Brg Retainer, .007

$

$

Not available

5

Cub Cadet 717-3099

Shim, Differential Brg Retainer, .0149

$37.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 717-3100

Shim, Differential Brg Retainer, .0299

$

$

Not available

7

Cub Cadet IH-106394-C1

Plate Assy, Transmission Case Rear Cover

$

$

Currently unavailable

Cub Cadet 737-0177

Plug, 1/2-14 Automotive Sq-Soc-Hd Drain

$

$

Not available

Cub Cadet IH-24839-R1

Screw, 3/8-16 x 5/8 Hex Hd Cap
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 12

0

8

Cub Cadet IH-ST974

Bearing, Differential Cup

$

$

Not available

9

Cub Cadet 741-0369

Bearing Assy, Differential Cone

$

$

Not available

10

Cub Cadet IH-350837-R2

Gasket, Transmission Case Rear Cover Plate
(Superseded to IH-350837-R3)

$29.99

$

In Stock, Qty 6

0

11

Cub Cadet IH-384699-R91

Case Assy, Transmission

$

$

Currently unavailable

Cub Cadet IH-444631

Plug, 1/2-14 Auto Sq-Hd Pipe

$

$

Not available

12

Cub Cadet IH-350799-R1

Dowel, Transmission Case to Reduction Housing

$

$

Not available

13

Cub Cadet IH-384713-R1

Spacer, Driven Reduction

$

$

Currently unavailable

14

Cub Cadet 717-3074

Gear, Reduction Drive -84T

$

$

Not available

15

~NLA

Washer, 15/32 x 1-1/4 x 3/16

$

$

Not available

Screw, 7/16-14 x 7/8 Hex Hd Cap

Note: Common Hardware Purchase Locally

$

$

Not available

Washer, 7/16 Med Lock

Note: Common Hardware Purchase Locally

$

$

Not available

16

Cub Cadet IH-376216-R1

Gasket, Reduction Drive Housing
(Superseded to IH-376216-R2)

$

$

Not available

17

Cub Cadet IH-384706-R2

Housing, Reduction Drive

$

$

Not available

Cub Cadet IH-24840-R1

Screw, 3/8-16 x 1 Hex Hd Cap

Note: (For mounting housing to frame)

$

$

Not available

Screw, 1/2-13 x 2 Hex Hd Cap

Note: Common Hardware Purchase Locally

$

$

Not available

Screw, 1/2-13 x 3-1/4 Hex Hd Cap

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet 736-0921

Washer, 1/2 Med Lock

$4.49

$

In Stock, only 2 left!

0

Cub Cadet IH-387321-R1

Washer, Reduction Housing

$

$

Currently unavailable

Cub Cadet IH-379277-C1

Plug, 1-3/8 Cup

Note: (Tractors w/caliper brakes)

$

$

Not available

18

Cub Cadet 741-0361

Bearing Assy, Reduction Drive Shaft Front Ball
(Superseded to 941-0361)

$49.99

$

In Stock, only 2 left!

0

19

Cub Cadet IH-384709-R1

Ring, Reduction Drive Shaft Brg Ext Snap

$

$

Not available

20

Cub Cadet IH-385076-R91

Seal, Reduction Drive Shaft Oil
(Superseded to IH-385076-R92)

$33.99

$

In Stock, only 4 left!

0

21

Cub Cadet IH-394036-R1

Bushing, Clutch Shaft
(Superseded to IH-394036-R2)

$85.99

$

Usually ships in 3-6 days

0

Cub Cadet 715-0114A

Pin, 1/4 x 1-1/2 Hv Coiled Spring
(Superseded to 915-0114)

$9.49

$

In Stock, Qty 20+

0

22

Cub Cadet IH-384725-R1

Gasket, Reduction Housing Cover Plate
(Superseded to IH-384725-R2)

$11.99

$

In Stock, only 1 left!

0

23

Cub Cadet IH-384714-R11

Plate Assy, Reduction Housing Cover

$

$

Currently unavailable

Screw, 3/8-16 x 1/2 Hex Hd Cap

Note: Common Hardware Purchase Locally

$

$

Not available

Cub Cadet IH-24839-R1

Screw, 3/8-16 x 3/4 Hex Hd Cap
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 12

0

24

Cub Cadet 717-3073

Shaft, Reduction Drive

$

$

Not available

25

Cub Cadet 741-0362

Bearing Assy, Reduction Drive Shaft Rear
(Superseded to 941-0362)

$109.99

$

Usually ships in 3-6 days

0

26

Cub Cadet IH-172530

Plug, 11/16 Expansion

$

$

Currently unavailable

27

Not serviced separately

$

$

Not available

28

Cub Cadet IH-350788-R1

Pin, Differential Pinion Shaft Lock

$

$

Not available

29

Cub Cadet IH-223472-C91

Case w/Drive Gear, Differential

$

$

Currently unavailable

~NLA

Rivet, 5/16 x 1-1/8 Rd Hd

$

$

Not available

30

~NLA

Gear, Differential Side

$

$

Not available

31

Cub Cadet IH-350789-R1

Shaft, Differential Pinion

$

$

Currently unavailable

32

Cub Cadet 717-3113

Pinion, Differential -10T

$

$

Not available

33

Cub Cadet IH-350787-R1

Gear, Differential Drive -46T

$

$

Not available

~NLA

Rivet, 5/16 x 1-1/8 Rd Hd

$

$

Not available

$

$
