120 S3D (UT-01535-D) - Homelite Pump Pump & Frame Parts Diagram

Pump

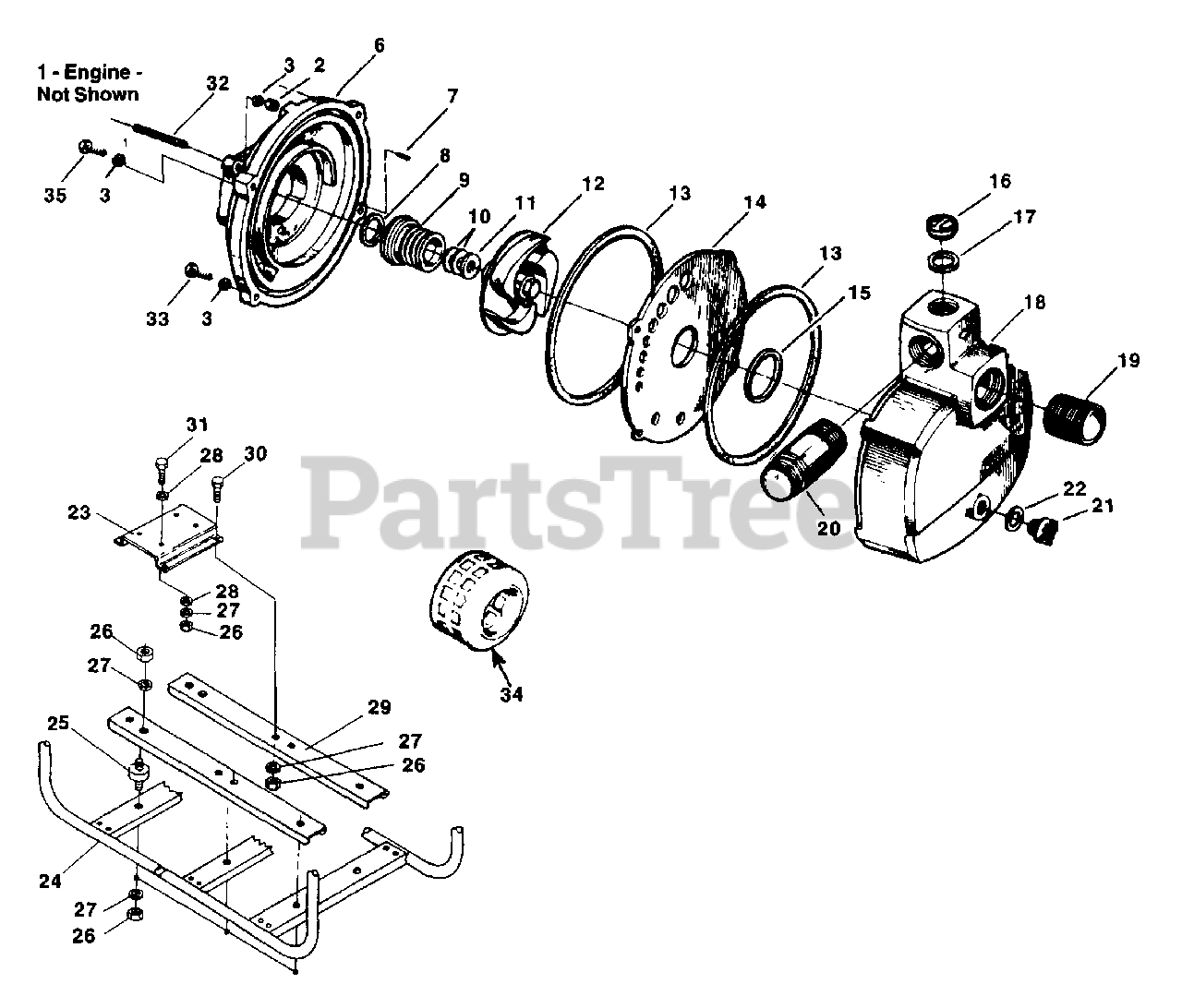

Pump & Frame Parts Diagram

  • Title

1

ENGINE

Note: Not Shown

$

$

Not available

2

Homelite 81043

NUT - 3/8-16

$

$

Not available

3

Homelite 83018

WASHER - Lock 3/8"

$

$

Not available

?4

Homelite 624501

HOLDER - Spanner wrench

Note: Not Shown

$

$

Not available

?5

Homelite 20024B

WRENCH - Spanner
(Superseded to UP06389)

Note: Not shown

$

$

Not available

6

Homelite 629802A

HOUSING - Impeller

$

$

Not available

7

Homelite 67908

PIN - Coiled spring

$

$

Not available

8

Homelite 62688

SLINGER
(Superseded to UP06433)

$

$

Not available

9

Homelite 627131A

SEAL ASSEMBLY

$

$

Not available

10

Homelite 75909

SHIM - Seal (.010")
(Superseded to UP06452)

$

$

Not available

Homelite 75910

SHIM - Seal (.015")

$

$

Not available

11

Homelite 62408

SPACER

$

$

Not available

12

Homelite 540673

IMPELLER

$

$

Not available

13

Homelite 62927

GASKET - Large
(Superseded to UP07079)

$30.99

$

Usually ships in 3-7 days

0

14

Homelite 629262A

PLATE - Wear
(Superseded to UP07027)

$

$

Not available

15

Homelite 62928

GASKET - Small
(Superseded to UP07079)

$15.99

$

Usually ships in 3-7 days

0

16

Homelite A43971

PLUG - Filler

$

$

Not available

17

Homelite 18108

GASKET

$

$

Not available

18

Homelite A50846A

HOUSING - End

$

$

Not available

19

Homelite 743431

NIPPLE - Suction

$

$

Not available

20

Homelite 542891

FITTING - Pipe (discharge)

$

$

Not available

Homelite 08970

DECAL - Fill Pump

$

$

Not available

Homelite 08971

DECAL - Warning

$

$

Currently unavailable

21

Homelite A43896

PLUG - Drain
(Superseded to UP07092)

$

$

Currently unavailable

22

Homelite 59910

GASKET

$

$

Not available

23

Homelite 421211A

BRACKET - Engine
(Superseded to UP08577)

$

$

Not available

24

Homelite A07952

ROLL CAGE
(Superseded to UP06383)

$

$

Not available

25

Homelite 49367

ISOLATOR
(Superseded to UP03483)

$

$

Not available

26

Homelite 81162

NUT-Hex, 5/16-18

$

$

Not available

27

Homelite 83002

WASHER - Lock, 5/16"
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

28

Homelite 84046

WASHER - Flat, 5/16"

$

$

Not available

29

Homelite 07958

CHANNEL - Engine
(Superseded to UP07008)

$

$

Not available

30

Homelite 80085

SCREW - Hex Hd. 5/16-18 x 1

Note: Torque Specs 205-225 In/Lbs., 23.2-25.4 Nm

$2.49

$

Usually ships in 3-7 days

0

31

Homelite 80288

SCREW - Hex Hd. 5/16-18 x 1 3/4"
(Superseded to UP03388)

Note: Torque Specs 205-225 In/Lbs., 23.2-25.4 Nm

$

$

Not available

32

Homelite 30679

STUD

Note: Torque Specs 220-260 In/Lbs., 24.9-29.4 Nm

$

$

Not available

33

Homelite 800973

BOLT - 3/8-16 x 1 1/2"
(Superseded to UP07178)

Note: Torque Specs 220-260 In/Lbs., 24.9-29.4 Nm

$

$

Not available

34

Homelite 30129

STRAINER
(Superseded to UP03441)

$

$

Not available

35

Homelite 82630

SCREW - Hex Hd. 3/8-16 x 2"

Note: Torque Specs 220-260 In/Lbs., 24.9-29.4 Nm

$

$

Currently unavailable
