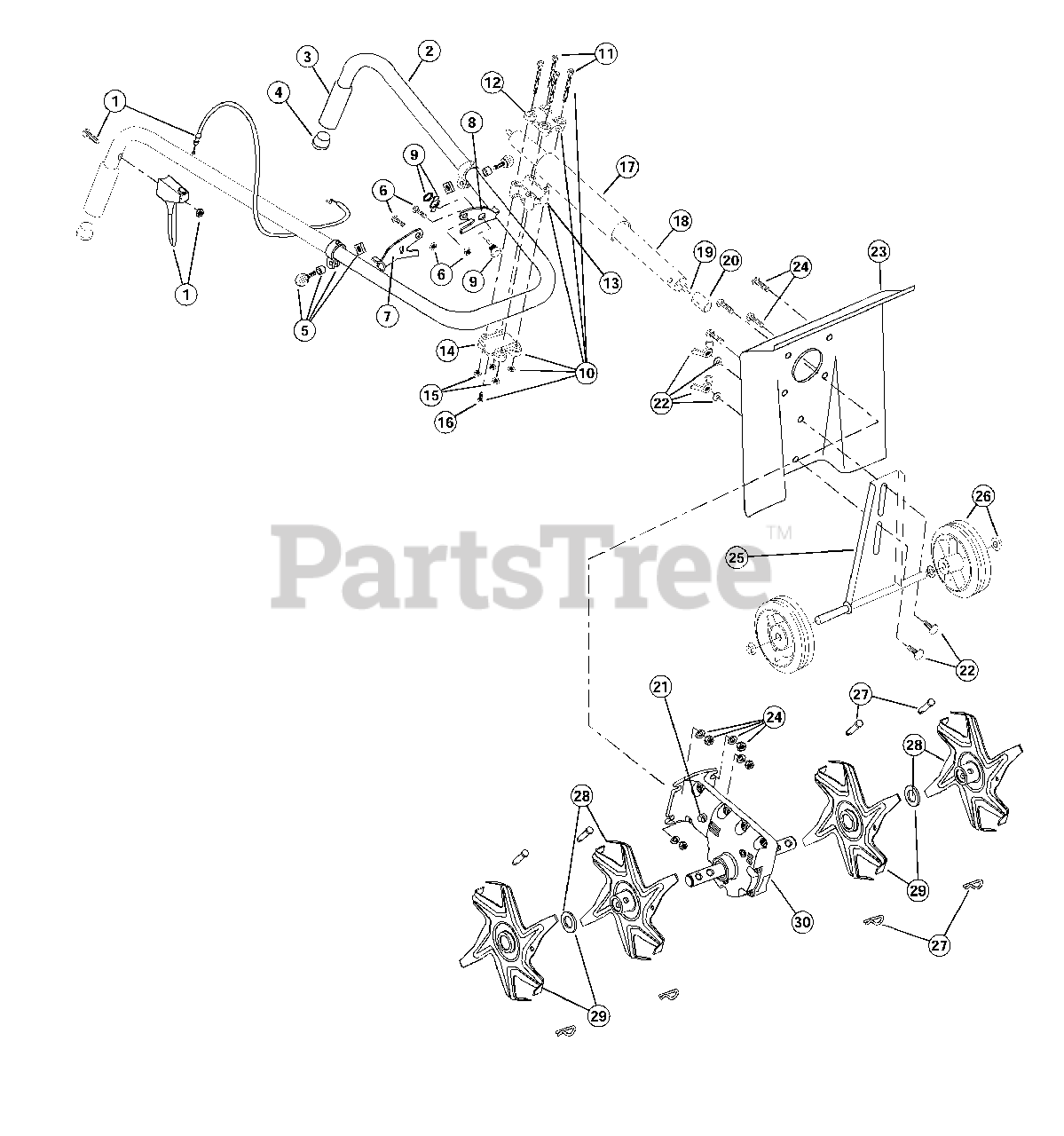

120 R (21C-120R000) - Yard Machines Tiller (2003) Cultivator Parts Parts Diagram

Tiller

Cultivator Parts Parts Diagram

  • Title
1

MTD 791-181573

Throttle Trigger and Cable Assembly

$

$

Not available

2

MTD 791-180942

Handle Bar w/Clamp Assemblies

Note: (includes 3-5)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

4

MTD 791-612021

Tube Closure
(Superseded to 1925)

$2.49

$

Usually ships in 3-6 days

0

5

MTD 791-181503

Clamp Assembly

$

$

Not available

6

MTD 791-147501

Engine Bracket Mounting Hardware

$

$

Not available

7

MTD 791-181574

Engine Mount Bracket, R.H.

$

$

Not available

8

MTD 791-181504

Engine Mount Bracket, L.H.

$

$

Not available

9

MTD 791-682035

Switch Assembly

$

$

Not available

10

MTD 791-683295

Handle Bracket Assembly

Note: (includes 11-16)

$45.99

$

Usually ships in 3-6 days

0

11

$4.99

$

Usually ships in 3-6 days

0

12

MTD 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

13

MTD 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

14

MTD 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

$4.49

$

Usually ships in 3-6 days

0

16

MTD 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

17

$19.99

$

Usually ships in 3-6 days

0

18

MTD 791-180943

Drive Shaft Housing Assembly

$

$

Not available

19

MTD 791-181577

Flexible Drive Shaft

$

$

Not available

20

MTD 791-181578

Retainer Sleeve

Note: (includes 21)

$

$

Not available

21

MTD 791-180288

Sleeve Retainer Bolt
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

22

MTD 791-147467

Wheel Bracket Mounting Hardware

$

$

Not available

23

$

$

Not available

24

MTD 753-04266

Guard Mounting Hardware

$

$

Not available

25

MTD 791-180320

Wheel Bracket Assembly
(Superseded to 753-05020)

$

$

Not available

26

MTD 791-180944

Wheel Assembly

$

$

Not available

27

MTD 791-147473

Tine Fastener Assembly

$

$

Not available

28

MTD 791-182729

Tine Assembly (Left Outer or Right Inner)

$

$

Not available

29

MTD 791-182730

Tine Assembly (Left Inner or Right Outer)

$

$

Not available

30

MTD 791-147474

Gear Box Assembly
(Superseded to 753-04489)

$

$

Not available

MTD 791-147543

2-Cycle Oil

Note: not shown

$

$

Not available
