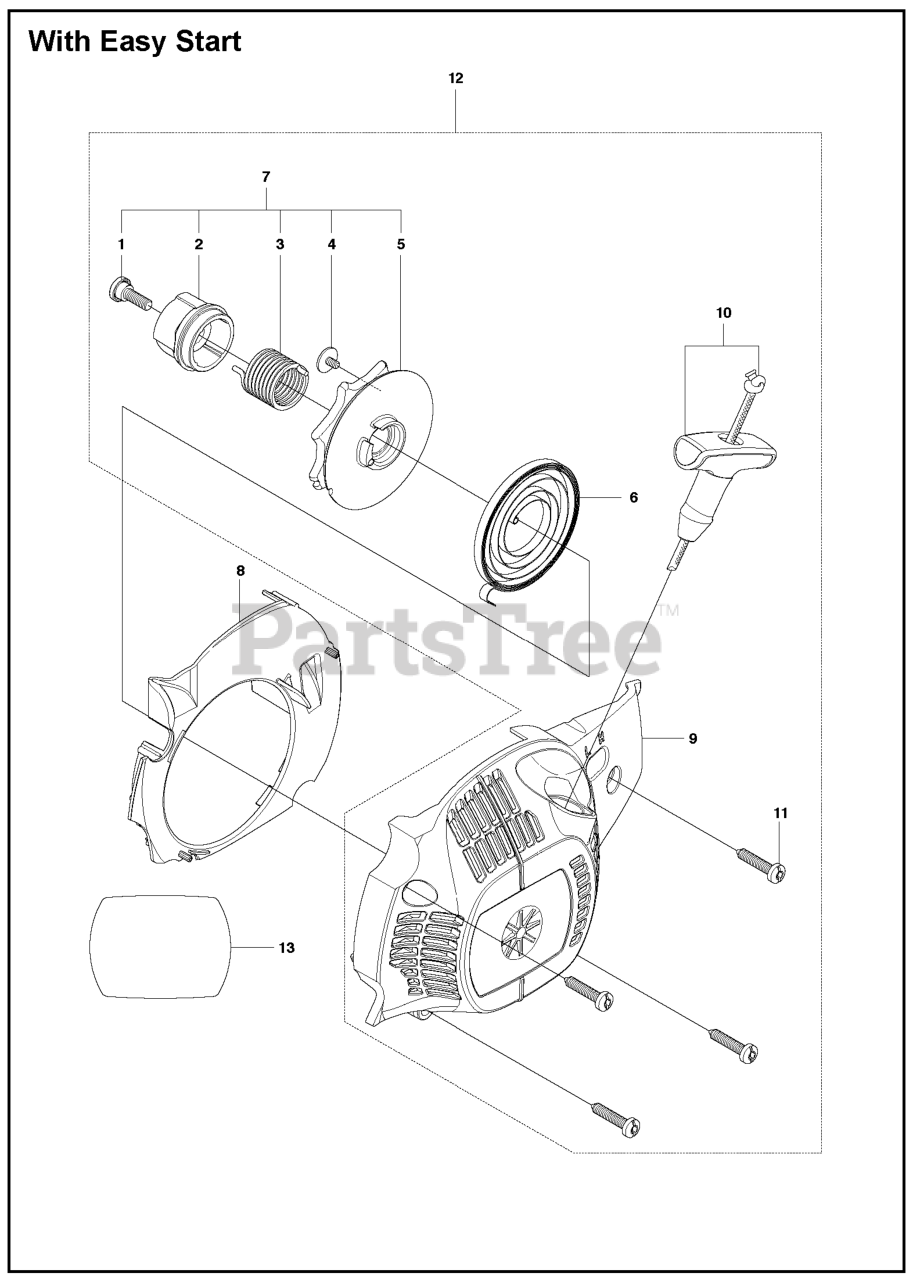

120 Mark II - Husqvarna Chainsaw STARTER Parts Diagram

Chainsaw

STARTER Parts Diagram

  • Title

3

Husqvarna 530021180

SPRING EPS

Note: Spring

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 545063701

FAN HOUSING

Note: FAN HOUSING

$17.99

$

Usually ships in 3-10 days

0

1

Husqvarna 530021179

SCREW SHOULDER

Note: SCREW

$2.49

$

In Stock, only 1 left!

0

13

Husqvarna 594914101

Decals

Note: DECAL FAN HOUSING 120 MARK II

$4.99

$

Usually ships in 3-10 days

0

4

Husqvarna 530016080

SCREW

Note: SCREW

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 530059677

HUB STARTER EPS

Note: SLEEVE

$9.99

$

In Stock, Qty 6

0

7

Husqvarna 530071966

KIT EPS STARTER

Note: EPS STARTER KIT (INCL. PULLEY)

$26.99

$

In Stock, only 1 left!

0

8

Husqvarna 545063801

BAFFLE

Note: BAFFLE

$5.99

$

Usually ships in 3-10 days

0

5

Husqvarna 545058201

PULLEY STARTER EPS
(Superseded to 530071966)

Note: PULLEY

$26.99

$

In Stock, only 1 left!

0

6

Husqvarna 530042095

SPRING STARTER
(Superseded to 545008013)

Note: SPRING

$6.99

$

In Stock, Qty 8

0

10

Husqvarna 545010010

STARTER ROPE W/HANDLE

Note: HANDLE ROPE ASSY

$7.99

$

In Stock, only 1 left!

0

12

Husqvarna 545008024

KIT COMPLETE EPS

Note: KIT COMPLETE

$37.99

$

In Stock, only 1 left!

0

11

Husqvarna 530016432

SCREW M5.38-14X22.225MM

Note: SCREW SCREW M5.38-14X22.225MM

$6.49

$

In Stock, Qty 7

0
