120-7122 - Toro 48" Bagger Finishing Kit for 2011 Titan Series Mower BAGGER FINISHING KIT ASSEMBLY NO. 120-7122 Parts Diagram

48" Bagger Finishing Kit for 2011 Titan Series Mower

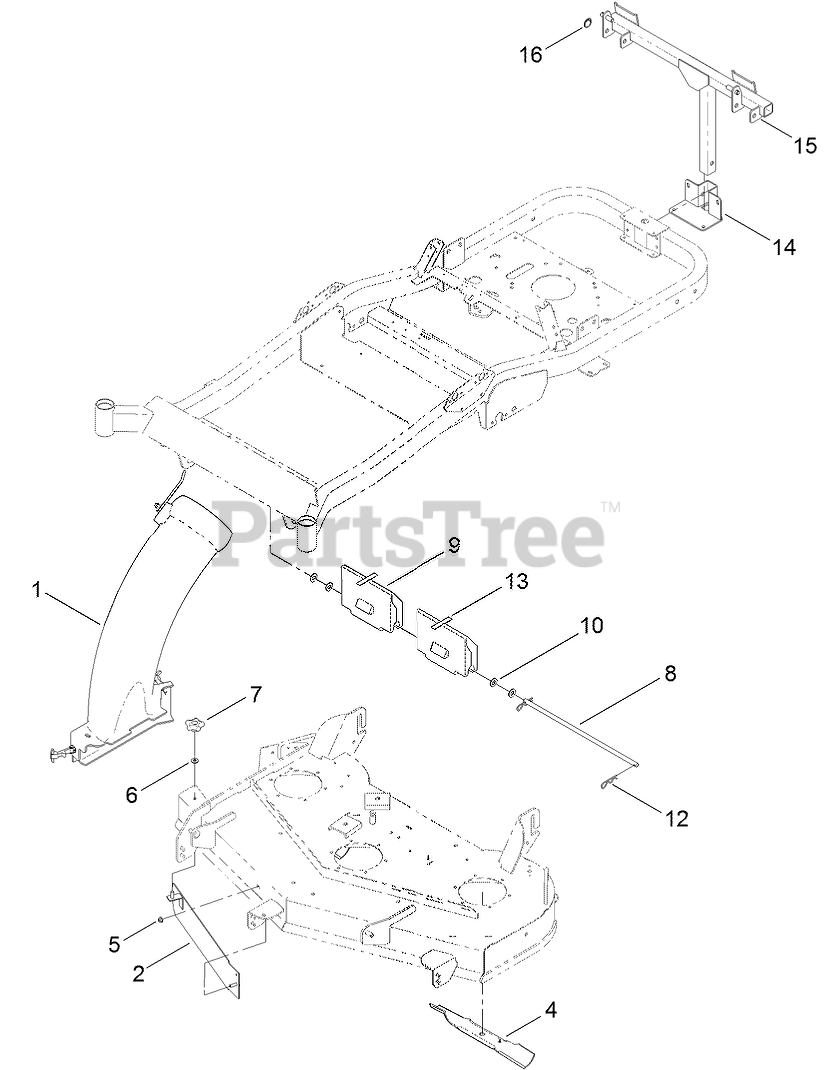

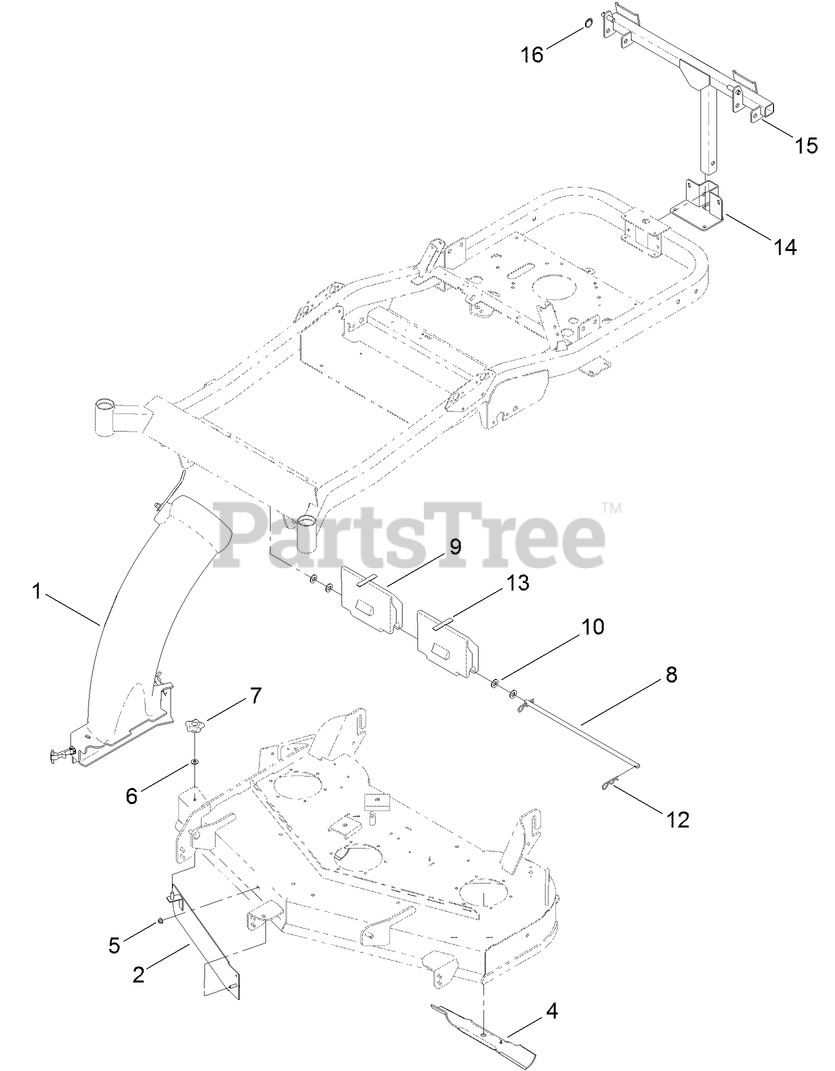

BAGGER FINISHING KIT ASSEMBLY NO. 120-7122 Parts Diagram

  • Title

1

Toro 120-5525

CHUTE ASM

$338.99

$

Usually ships in 3-6 days

0

2

Toro 117-7419-03

BAFFLE

$84.99

$

Usually ships in 3-6 days

0

4

Toro 117-7279-03

BLADE-HI LIFT, 16.50 IN

$29.99

$

Usually ships in 3-6 days

0

5

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 108-8162

KNOB-LOCKING
(Superseded to 117-5976)

$2.99

$

In Stock, Qty 11

0

8

Toro 115-5030

ROD-DECK, PIVOT

$30.99

$

Usually ships in 3-6 days

0

9

Toro 115-9640-03

WEIGHT-BAGGER

$364.99

$

Usually ships in 3-6 days

0

10

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

13

Toro 112-4033

BUMPER-PAD

$7.99

$

In Stock, only 3 left!

0

14

Toro 120-7120-03

SUPPORT-BAGGER

$90.99

$

Usually ships in 3-6 days

0

15

Toro 120-7119-03

FRAME-PIVOT

$349.99

$

Usually ships in 3-6 days

0

16

Toro 120-7127

PIN-COTTER, CIRCULAR

$1.49

$

Usually ships in 3-6 days

0
