120-548R - MTD Walk-Behind Mower (1990) Part 1 Parts Diagram

Walk-Behind Mower

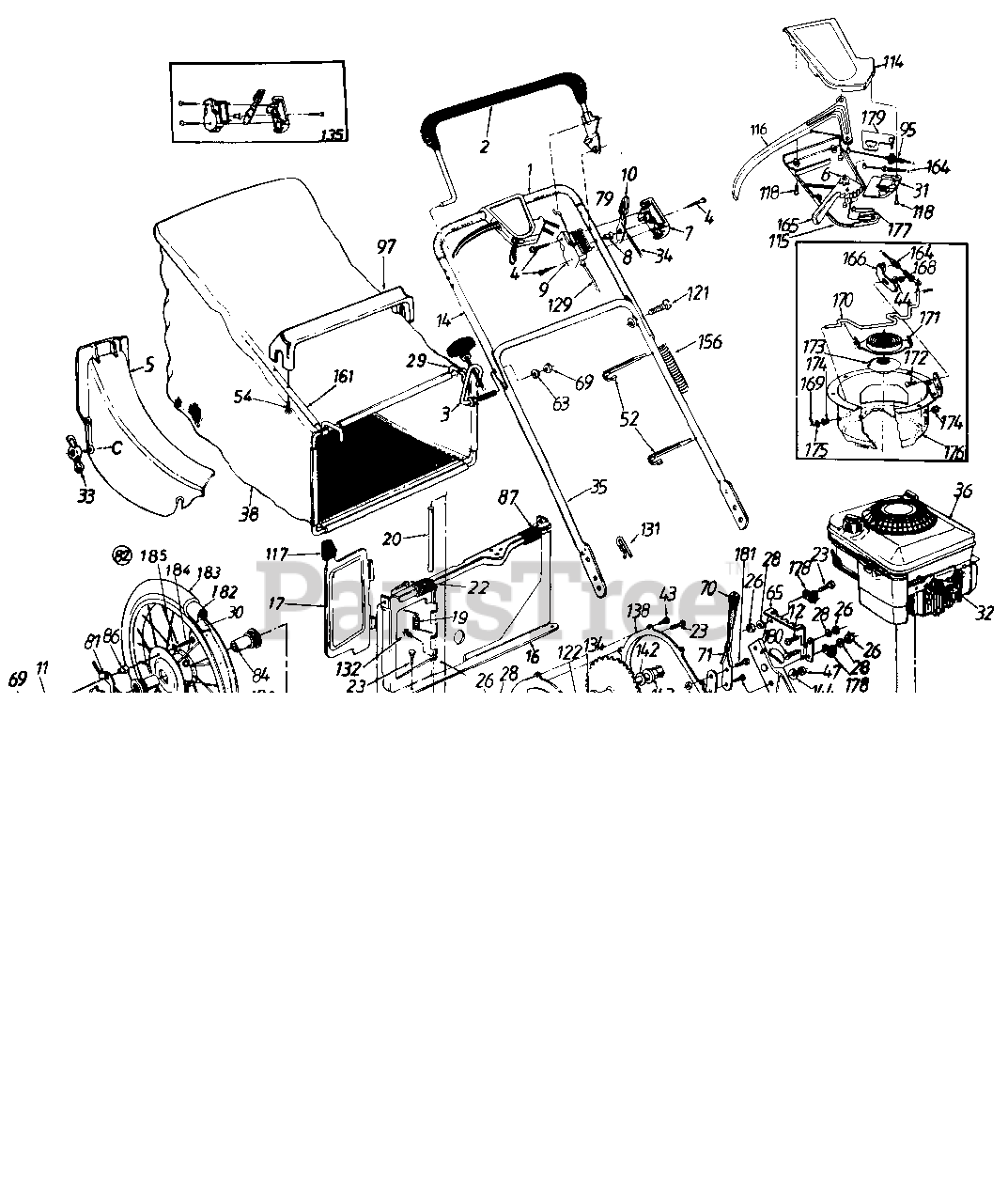

Part 1 Parts Diagram

  • Title

1

MTD 720-0225

Grip
(Superseded to 720-0294A)

$7.49

$

In Stock, only 3 left!

0

2

MTD 731-0609

Control Handle Ass'y. L.H.

$

$

Not available

3

MTD 710-0842B

Rope Guide Bolt

$

$

Not available

4

MTD 710-0796

Truss Mach. Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

5

MTD 731-1024

Rear Discharge Chute Ass'y.
(Superseded to 731-1023)

$

$

Not available

6

MTD 713-0397

3 Tooth Rack Gear Insert
(Superseded to 913-0397)

$5.49

$

In Stock, only 4 left!

0

7

MTD 731-0817A

Control Panel Half

$

$

Not available

8

MTD 731-0524

Control Disc Pin

$

$

Not available

9

MTD 731-0816A

Clutch Panel Half

$

$

Not available

10

MTD 731-0972

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

11

MTD 14967

Wheel Cover

$

$

Not available

12

MTD 710-0946

Truss Mach. Scr. 1/4-20 x .62" Lg.

$3.99

$

Usually ships in 3-6 days

0

14

MTD 749-0439A

Upper Handle
(Superseded to 749-0439E-0637)

$47.99

$

In Stock, only 1 left!

0

15

MTD 17856

Panel Support Brkt.
(Superseded to 16129A-0637)

$11.99

$

Usually ships in 3-6 days

0

16

MTD 16862A

Rear Catcher Panel Ass'y.

Variations

MTD 16862A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16862A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 16862A-0638

No Longer Available PANEL ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16862A-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 16862A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 16862A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

17

MTD 17095A

Rear Discharge Door

Variations

MTD 17095A-0637

Top Discharge Door - POWDER BLACK (0637)

$

$

Not available

$

$

19

MTD 732-0483A

Torsion Spring

$10.99

$

Usually ships in 3-6 days

0

20

MTD 747-0514

Pivot Pin

$

$

Not available

21

MTD 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

23

MTD 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

24

MTD 738-0704

Shoulder Bolt Special

$17.99

$

Usually ships in 3-6 days

0

25

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

26

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

27

MTD 748-0312

Wheel Ratchet

$

$

Not available

28

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

29

MTD 747-0705

Front Grass Catcher Frame
(Superseded to 747-0705-0637)

Variations

MTD 747-0705-0637

FRAME-CATCHER-FR - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

30

MTD 734-1400

Rim Strip

$

$

Not available

31

MTD 731-0906

S.P. Control Cover
(Superseded to 753-0717)

$

$

Not available

32

MTD 735-0639

Spark Plug Insulator

$

$

Not available

33

MTD 712-0388

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

34

MTD 746-0674

Throttle Control Wire 61"
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

35

MTD 749-0725

Lower Handle
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

36

Engine

$

$

Not available

38

MTD 746-0262

Grass Bag

$

$

Currently unavailable

39

MTD 14836

Retaining Strip

$

$

Not available

41

MTD 736-0204

Fl-Wash. .344" I.D. x .62"

$4.49

$

In Stock, Qty 20+

0

42

MTD 17858

Rear Support Drive Ass'y.

$

$

Currently unavailable

43

MTD 710-0352

Hex B-Tap Scr. 1/4" x .38"

$4.99

$

Usually ships in 3-6 days

0

44

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

45

MTD 710-0776A

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

47

MTD 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

48

MTD 713-0257

#48 Chain .500" Pitch x 52 Links

$

$

Not available

50

MTD 731-0564

Plug

$

$

Not available

51

MTD 731-1172

Rear Flap

$

$

Not available

52

MTD 736-0240

Cable Tie (w/Post)

$

$

Currently unavailable

MTD 726-0197

Cable Tie (w/Out Post)

$3.99

$

In Stock, only 1 left!

0

54

MTD 710-1025

Hex AB-Tap Scr. #12 x 1.25" Lg.

$6.49

$

Usually ships in 3-6 days

0

55

MTD 753-0485

Blade Adapter Kit

$46.99

$

Usually ships in 3-6 days

0

56

MTD 742-0306A

21" Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 1 left!

0

58

MTD 736-0453

Bell-Wash. .46" I.D.
(Superseded to 936-0453)

$3.49

$

Usually ships in 3-6 days

0

60

MTD 710-0757

Hex Bolt 7/16-20 x 1.5"

$9.99

$

In Stock, only 1 left!

0

61

MTD 750-0547

Spacer .628" I.D.

$5.99

$

In Stock, only 2 left!

0

63

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

64

MTD 17864

Handle Brkt. Ass'y. R.H.

$

$

Currently unavailable

65

MTD 17854

Handle Brkt. Ass'y. L.H.

$

$

Currently unavailable

66

MTD 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

MTD 710-0603

Hex B-Tap Scr. 5/16-18

$4.99

$

Usually ships in 3-6 days

0

68

MTD 710-0654A

Hex TT-Tap Scr. 3/8-16

$4.49

$

In Stock, Qty 20+

0

69

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

71

MTD 732-0651

Height Adj. Lever

$

$

Currently unavailable

72

MTD 712-0431

Flanged L-Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

73

MTD 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

74

MTD 750-0736

Spacer .383" I.D.
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

76

MTD 719-0279

Rope Guide

$15.99

$

Usually ships in 3-6 days

0

77

MTD 726-0233

Bolt Retainer 1/4 x .50" O.D.

$4.49

$

In Stock, Qty 20+

0

79

MTD 777-5812

Control Label

$

$

Not available

80

MTD 710-0812

Hex Bolt 1/4-20 x .75" Lg. (Grade 5)

$

$

Not available

81

MTD 748-0315

Pawl and Spring Ass'y.

$15.99

$

Usually ships in 3-6 days

0

82

MTD 734-1398

Wheel Ass'y. Comp.

$

$

Not available

84

MTD 741-0485

Flange Bearing 63" I.D.

$

$

Not available

86

MTD 712-0329

Special Hex Nut 5/16-18 Thd.

$

$

Not available

87

MTD 731-0880

Panel Clip

$3.99

$

Usually ships in 3-6 days

0

95

MTD 746-0710

S.P. Cable 50" Lg.
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

96

MTD 754-0343

"V"-Belt
(Superseded to 954-0343)

$29.99

$

In Stock, Qty 9

0

97

MTD 731-0801

Bag Handle

$

$

Not available

98

MTD 748-0313

Spacer 63" I.D. x 1.25"

$3.99

$

Usually ships in 3-6 days

0

99

MTD 710-1055

Hex Bolt 3/8-24 x 1.0" Lg.

$4.99

$

Usually ships in 3-6 days

0

100

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

101

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

102

MTD 17051

21" Deck Ass'y.

Variations

MTD 17051-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17051-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

114

MTD 731-0904

Self-Propelled Control Cover
(Superseded to 753-0717)

$

$

Not available

115

MTD 731-0905

Self-Propelled Control Cover
(Superseded to 753-0717)

$

$

Not available

116

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$15.99

$

In Stock, only 1 left!

0

117

MTD 720-0190

Door Grip
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

118

MTD 710-0841

Fl-"C"-Sunk Hd. Tap Scr. #10 x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

121

MTD 710-0671

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

122

MTD 713-0425

Sprocket and Axle Ass'y.

$

$

Not available

129

MTD 746-0477A

Control Cable 39"
(Superseded to 946-0477A)

$

$

Not available

131

MTD 714-0104

Intern. Cotter Pin 1/8" Dia.

$4.49

$

In Stock, Qty 20+

0

132

MTD 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

133

MTD 731-0885

Side Chute Deflector Ass'y.

$

$

Not available

134

MTD 741-0413

Hex Flange Bearing

$9.99

$

Usually ships in 3-6 days

0

135

MTD 753-0430

Kit Control Housing Comp.

$

$

Not available

138

MTD 706-14709

Chaincase and Arm Ass'y.

$

$

Not available

140

MTD 710-0599

Hex S-Tap Scr. 1/4-20 x .50"

$4.49

$

In Stock, Qty 20+

0

141

MTD 736-0302

Fl-Wash. .632" I.D. x .943"

$

$

Not available

142

MTD 736-0256

Fl-Wash. .635" I.D. x 1.0"
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

143

MTD 741-0481

Hex Flange Brg. .631" I.D.

$

$

Currently unavailable

144

MTD 736-0300

Fl-Wash. .385" I.D. x .87"

$4.49

$

In Stock, Qty 20+

0

153

MTD 717-0417B

Transmission Comp.
(Superseded to 917-0417B)

Note: (See Breakdown)

$234.99

$

Usually ships in 3-6 days

0

154

MTD 16500A

Hex Bearing Cup
(Superseded to 16500A-0637)

Variations

MTD 16500A-0637

BEARING-CUP HEX - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

156

MTD 731-0759

Plastic Tubing

$

$

Not available

161

MTD 749-0764A

Rear Catcher Frame
(Superseded to 749-0764A-0637)

Variations

MTD 749-0764A-0637

FRAME-CATCHER-RR - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

164

MTD 746-0706

Spd. Control Cable 50" Lg.

$

$

Not available

165

MTD 731-0924

6-Spd. Shift Lever

$

$

Not available

166

MTD 17070

Adjustable Cable Brkt.
(Superseded to 17070-0637)

Variations

MTD 17070-0637

BRACKET-ADJ CABLE - POWDER BLACK (0637)

$

$

Not available

$

$

168

MTD 712-0291

Hex Cent. L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

169

MTD 714-0507

Cot-Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 12

0

170

MTD 747-0684

Shift Rod

$

$

Not available

171

MTD 741-0500

Movable Pulley Half Ass'y.
(Superseded to 941-0500A)

$

$

Not available

172

MTD 710-0167

Carr. Bolt 1/4-20 x .5" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

173

MTD 756-0503

Splined Pulley Half

$7.99

$

Usually ships in 3-6 days

0

174

MTD 731-1137

Flanged Bushing
(Superseded to 931-1137)

$

$

Not available

175

MTD 736-0278

Fl-Wash. .328" I.D. x .68" O.D.

$5.99

$

Usually ships in 3-6 days

0

176

MTD 17073

Cable Mtg. Brkt. Ass'y.

$

$

Not available

177

MTD 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

178

MTD 726-0175

Clamp

$

$

Not available

179

MTD 16864

6-Spd. Rack Cable Brkt.

$11.99

$

Usually ships in 3-6 days

0

180

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

181

MTD 710-0201

Hex Bolt 3/8-16 x .62" Lg.

$

$

Not available

182

MTD 734-1397

Inner Tube 16" x 2.12"

$

$

Not available

183

MTD 734-1396

Chevron Tire 16" x 2.125"

$

$

Not available

184

MTD 710-0376

Hex Bolt Special 5/16-18 x 1" Lg.

$3.99

$

In Stock, Qty 20+

0

185

MTD 736-0104

Intern Lock Wash. 5/16" I.D.
(Superseded to 936-0104)

$4.99

$

Usually ships in 3-6 days

0

186

MTD 734-1399

Rim Ass'y. Only 16" x 2.1"

$

$

Not available
