120-548R - MTD Walk-Behind Mower (1990) 21" Parts Diagram

Walk-Behind Mower

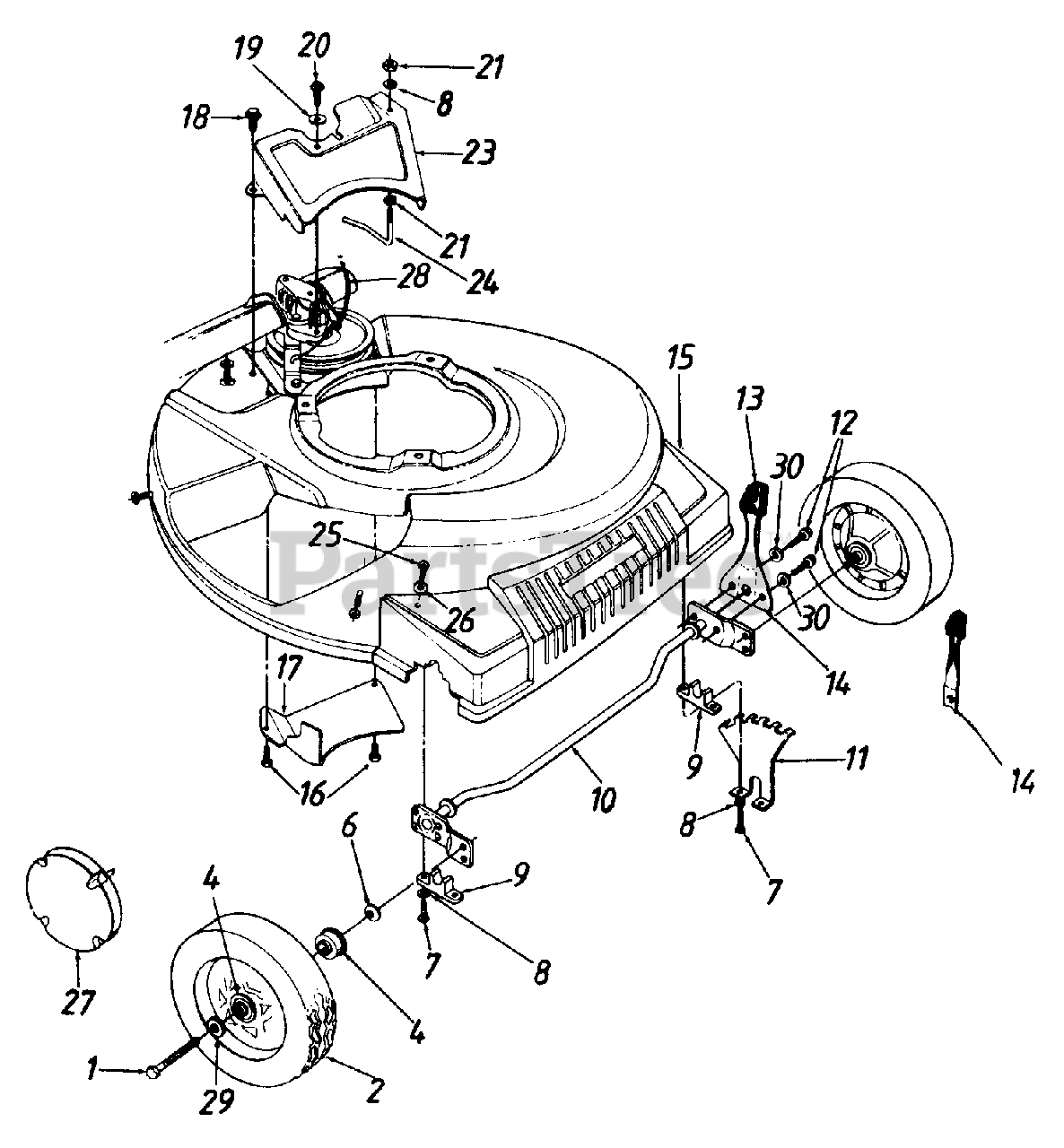

21" Parts Diagram

  • Title

1

MTD 738-0102

Front Axle Bolt

$9.99

$

In Stock, Qty 10

0

2

MTD 734-1517A

Wheel Ass'y. Comp. 8 x 2"
(Superseded to 734-1517B)

$68.99

$

Usually ships in 3-6 days

0

4

MTD 741-0180

Flange Ball Brg. .501" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

6

MTD 736-0105

Bell-Wash. .380" I.D. x .88

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0588

Hex Wash. Hd. B-Tap Scr. 1/4-20
(Superseded to 710-0788)

$7.49

$

In Stock, only 2 left!

0

8

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

9

MTD 741-0492

Block Bushing
(Superseded to 741-0492A)

$6.49

$

In Stock, Qty 9

0

MTD 741-0492A

Block Bushing

$6.49

$

In Stock, Qty 9

0

10

MTD 17060

Axle Ass'y.

$

$

Not available

MTD 17733

Axle Ass'y.

Variations

MTD 17733-0637

Front Axle Ass'y. - POWDER BLACK (0637)

$

$

Not available

$

$

11

MTD 17059

Height Adj. Bracket

$

$

Not available

12

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x . 5" Lg.

$4.49

$

In Stock, Qty 20+

0

MTD 710-0653

Hex TT-Tap Scr. 1/4-20 x .38"

$4.49

$

In Stock, Qty 8

0

13

MTD 720-0190

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

14

MTD 732-0553

Spring Lever (With 1 hole only)

$

$

Currently unavailable

MTD 732-0639

Spring Lever (With 3 holes)

$

$

Not available

15

MTD 731-0865

Plastic Front End
(Superseded to 931-0865C)

$

$

Not available

16

MTD 710-0352

Hex B-Tap Scr. 1/4" x .38"

$4.99

$

Usually ships in 3-6 days

0

17

MTD 17065A

Belt Cover
(Superseded to 17065A-0637)

Variations

MTD 17065A-0637

COVER-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

18

MTD 710-0599

Hex Wash. Hd. TT-Scr. 1/4-20

$4.49

$

In Stock, Qty 20+

0

19

MTD 736-0270

Bell-Wash. .265" I.D. x .75

$3.99

$

In Stock, Qty 20+

0

20

MTD 710-0896

Hex Wash. Hd. B-Tap Scr. 1/4 x .62"

Note: (Spec.)

$4.49

$

In Stock, Qty 20+

0

21

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

23

MTD 17058A

Transmission Belt Guard
(Superseded to 17058A-0637)

Variations

MTD 17058A-0637

GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

24

MTD 747-0549

S.P. Belt Guard

$

$

Not available

25

MTD 710-1001

Truss B-Tap Scr. 5/16 x .75"
(Superseded to 710-1242)

$4.99

$

In Stock, Qty 19

0

26

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

27

MTD 731-0982A

Hub Cap
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

28

MTD 746-0710

S.P. Cable 50" Lg.
(Superseded to 946-0710A)

$40.99

$

In Stock, only 4 left!

0

29

MTD 736-0232

Wave Wash. .53" I.D. x .78 O.D.

$4.99

$

In Stock, Qty 12

0

30

MTD 736-0222

External L-Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0
