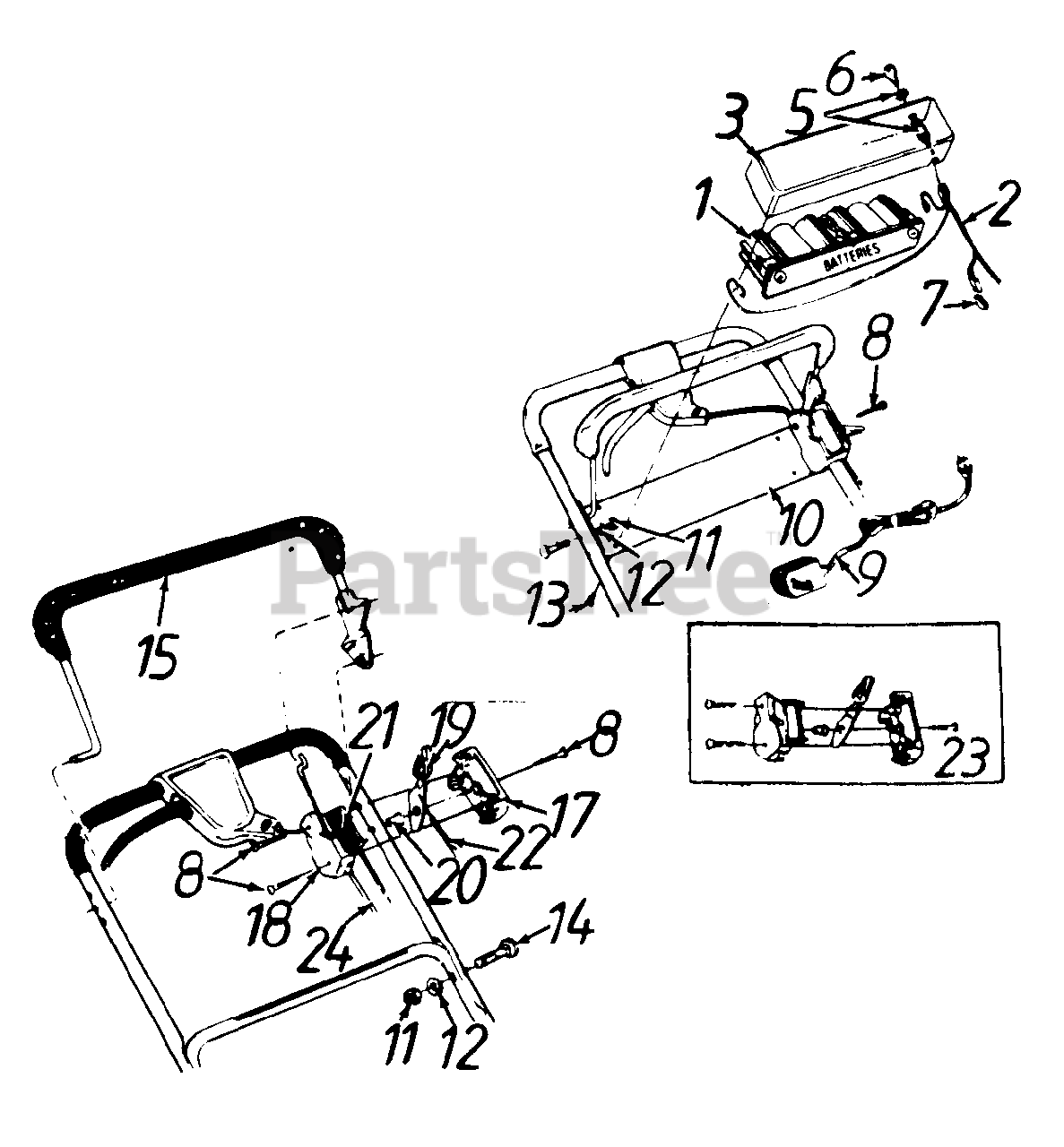

120-478E000 - MTD Controls Assembly (1990) Parts04 Parts Diagram

Controls Assembly

Parts04 Parts Diagram

  • Title

1

MTD 725-1276

Battery Pack
(Superseded to 925-1276)

$185.99

$

Usually ships in 3-6 days

0

2

MTD 725-1283

Wire Harness

$

$

Currently unavailable

3

MTD 731-0891A

Battery Tray

$

$

Not available

5

MTD 725-0873

Ignition Switch
(Superseded to 925-0873)

$

$

Not available

6

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

7

MTD 725-1206

Plug
(Superseded to 925-1206)

$

$

Not available

8

MTD 710-0796

Truss Mach- Scr. #12 x 1.5"

$5.49

$

Usually ships in 3-6 days

0

9

MTD 725-0727

Battery Charger
(Superseded to 925-0727)

$77.99

$

In Stock, only 1 left!

0

10

MTD 16542B

Lower Battery Tray

$

$

Currently unavailable

11

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

12

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

MTD 710-0969

Truss Mach. H-Riser Tap Scr. 1" Lg.

$4.49

$

In Stock, only 2 left!

0

14

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

15

MTD 731-0609

Control Handle Ass'y.

$

$

Not available

MTD 710-0796

Truss Mach. B-Tap Scr. #12 x 1.5" Lg.

$5.49

$

Usually ships in 3-6 days

0

17

MTD 731-0817A

Control Panel Half

$

$

Not available

18

MTD 731-0816A

Clutch Panel Half

$

$

Not available

19

MTD 731-0972

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

20

MTD 731-0524

Control Disc Pin

$

$

Not available

21

MTD 777-5812

Control Label-Throttle

$

$

Not available

22

MTD 746-0674

Throttle Wire-61" Lg.
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

23

MTD 753-0430

Control Housing Comp.

$

$

Not available

24

MTD 746-0477A

Control Cable-43" Lg.
(Superseded to 946-0477A)

$

$

Not available

MTD 725-0298

Fuse 7-1/2 Amp
(Superseded to 925-0298)

Note: (Not Shown)

$

$

Not available
