12-9900 - Toro Sweeper Attachment, Snow Thrower AIR CLEANER ASSEMBLY 5 H.P. MODEL, 7 AND 8 H.P. MODEL Parts Diagram

Sweeper Attachment, Snow Thrower

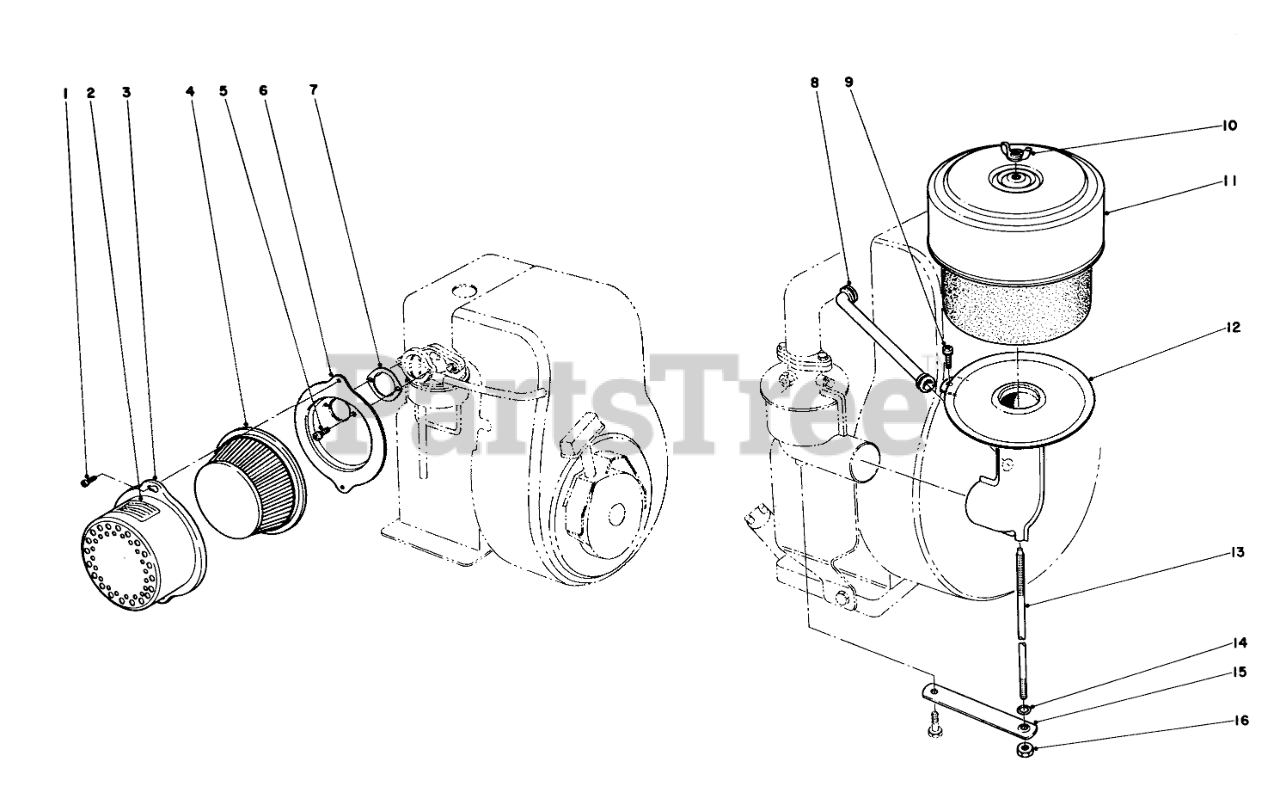

AIR CLEANER ASSEMBLY 5 H.P. MODEL, 7 AND 8 H.P. MODEL Parts Diagram

  • Title

1

Tecumseh 650152

Screw

Note: Tecumseh Engine Model No. H50-65279J,5 H.P. MODEL

$2.49

$

In Stock, only 3 left!

0

2

Tecumseh 31752

Decal

Note: Tecumseh Engine Model No. H50-65279J,5 H.P. MODEL

$

$

Not available

3

Tecumseh 31692

Body
(Superseded to 31715)

Note: Tecumseh Engine Model No. H50-65279J,5 H.P. MODEL

$21.99

$

In Stock, Qty 7

0

4

Tecumseh 30727

Element

Note: Tecumseh Engine Model No. H50-65279J,5 H.P. MODEL

$7.49

$

In Stock, only 3 left!

0

5

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

Note: Tecumseh Engine Model No. H50-65279J,5 H.P. MODEL

$4.49

$

Usually ships in 3-12 days

0

6

Tecumseh 31691

Bracket

Note: Tecumseh Engine Model No. H50-65279J,5 H.P. MODEL

$22.99

$

In Stock, only 1 left!

0

7

Tecumseh 27277

Gasket

Note: Tecumseh Engine Model No. H50-65279J,5 H.P. MODEL

$

$

Currently unavailable

8

Toro 867068

Tube Breather

Note: Briggs & Stratton Engine Model No. 170402 type 1185-01, 190402 type 0702-01

$

$

Currently unavailable

9

Toro 093158

Screw

Note: Briggs & Stratton Engine Model No. 170402 type 1185-01, 190402 type 0702-01

$

$

Currently unavailable

10

Toro 092129

Wing Nut

Note: Briggs & Stratton Engine Model No. 170402 type 1185-01, 190402 type 0702-01

$

$

Currently unavailable

11

Toro 390400

Cleaner Assy.-Air

Note: Briggs & Stratton Engine Model No. 170402 type 1185-01, 190402 type 0702-01

$

$

Currently unavailable

12

Tecumseh 390311

Pipe Tube Assembly

Note: Briggs & Stratton Engine Model No. 170402 type 1185-01, 190402 type 0702-01

$

$

Not available

13

Toro 230768

Stud

Note: Briggs & Stratton Engine Model No. 170402 type 1185-01, 190402 type 0702-01

$

$

Currently unavailable

14

Toro 066648

Gasket-O-Ring

Note: Briggs & Stratton Engine Model No. 170402 type 1185-01, 190402 type 0702-01

$

$

Currently unavailable

15

Toro 222150

Strap

Note: Briggs & Stratton Engine Model No. 170402 type 1185-01, 190402 type 0702-01

$

$

Currently unavailable

16

Toro 093453

Nut

Note: Briggs & Stratton Engine Model No. 170402 type 1185-01, 190402 type 0702-01

$

$

Currently unavailable
