12-16BP01 (B-165) - Toro Lawn Tractor (1983) AUTOMATIC TRANSMISSION Parts Diagram

Lawn Tractor

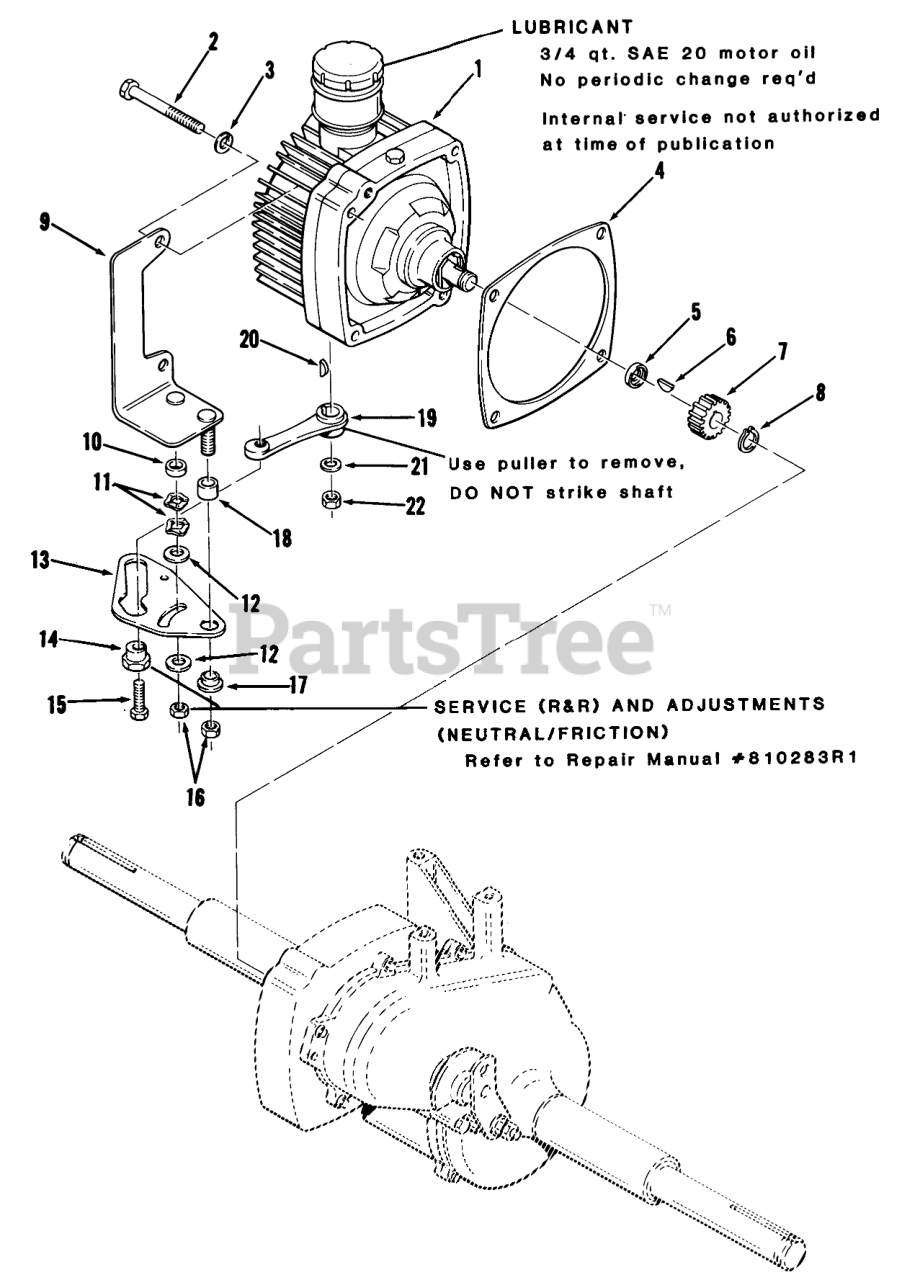

AUTOMATIC TRANSMISSION Parts Diagram

  • Title

1

Toro 109352

Pump & Motor

$

$

Not available

2

Toro 908042

Screw-Hex. Hd.
(Superseded to 323-14)

$3.99

$

In Stock, Qty 20+

0

3

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

4

Toro 7951

GASKET HYDRO

$

$

Not available

5

Toro 109447

SPACER-GEAR

$

$

Not available

6

Toro 937082

KEY WOODR 1/8X1/2 DI

$

$

Not available

7

Toro 109446

Gear 12 Tooth

$

$

Not available

8

Toro 936122

SNAP RING

$

$

Not available

9

Toro 109384

ASSY CONTROL SUPP R

$

$

Not available

10

Toro 108327

SPACER-FRICTION

$2.99

$

Usually ships in 3-6 days

0

11

Toro 100365

WASHER-SPRING DISC

$

$

Not available

12

Toro 100305

FRICTION WASHER

$5.99

$

In Stock, only 2 left!

0

13

Toro 108333

CAM-SPEED CONTROL (NS)

$43.99

$

In Stock, only 1 left!

0

14

Toro 106661

CAM

$

$

Not available

15

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

16

Toro 108881

NUT

$6.49

$

In Stock, only 2 left!

0

17

Toro 100309

CAM-SPACER

$9.99

$

In Stock, only 1 left!

0

18

Toro 108326

SPACER-PIVOT

$23.99

$

Usually ships in 3-6 days

0

19

Toro 109383

ARM-SPEED CONTROL

$

$

Not available

20

Toro 937082

KEY WOODR 1/8X1/2 DI

$

$

Not available

21

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

22

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0
