12-16BE02 (B-165) - Toro Lawn Tractor (1984) ELECTRICAL SYSTEM Parts Diagram

Lawn Tractor

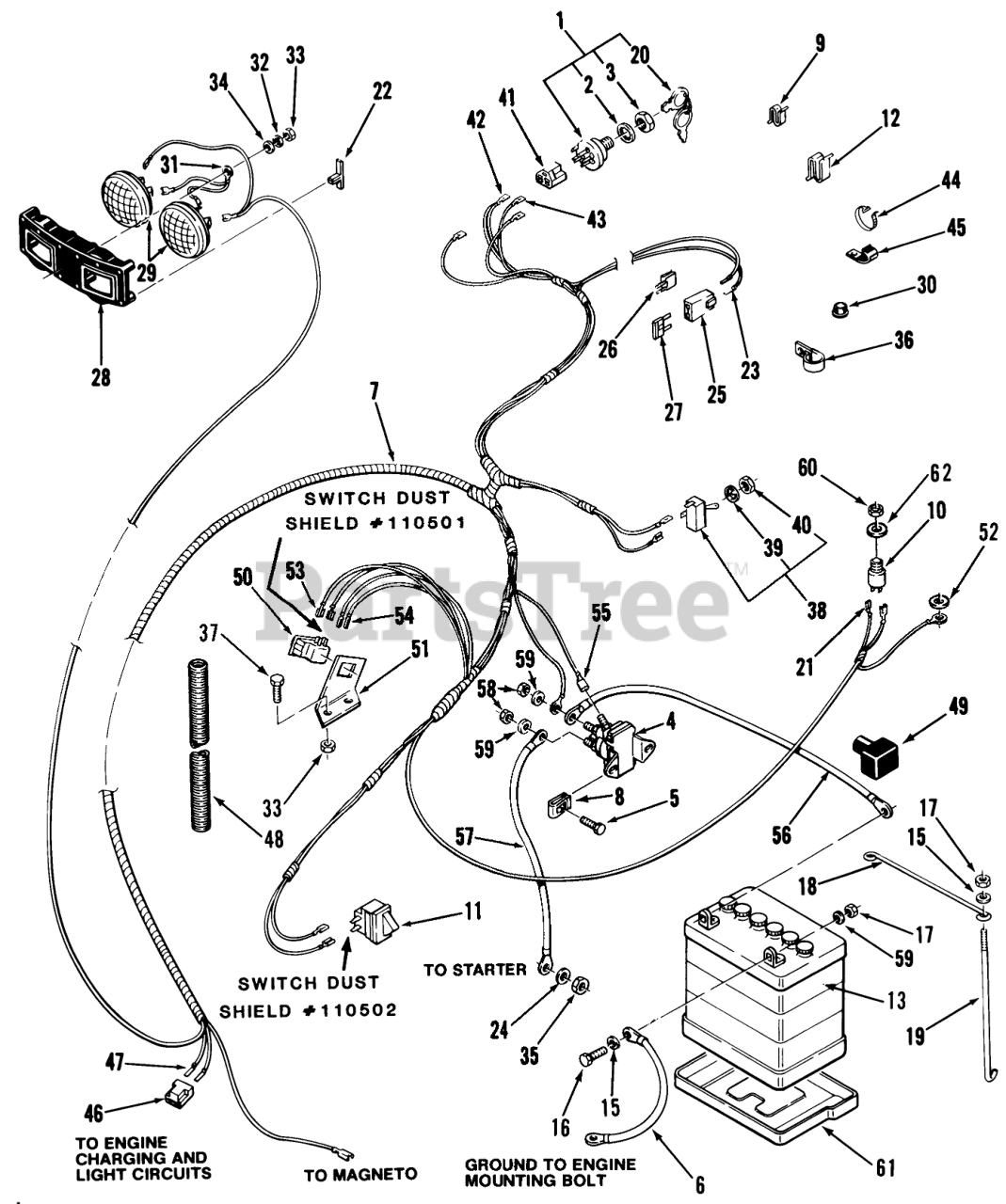

ELECTRICAL SYSTEM Parts Diagram

  • Title
1

Toro 103991

ASSY-SWITCH IGNITION

$55.99

$

In Stock, only 2 left!

0

2

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 3 left!

0

3

$7.49

$

In Stock, only 1 left!

0

4

Toro 109605

Solenoid
(Superseded to 110979)

$103.99

$

Usually ships in 3-6 days

0

5

Toro 960151

Screw
(Superseded to 3234-13)

$1.49

$

In Stock, only 4 left!

0

6

Toro 108281

Wire
(Superseded to 111078)

$27.99

$

Usually ships in 3-6 days

0

7

Toro 109341

Wiring Harness Assy 216-5 Only

$

$

Not available

8

Toro 106370

Speed Nut

$

$

Not available

9

Toro 3023

SPEED CLIP

$

$

Not available

10

Toro 109328

SWITCH-SEAT

$62.99

$

Usually ships in 3-6 days

0

11

Toro 103480

SWITCH INTERLOCK

$

$

Not available

12

Toro 519337

CLIP-CABLE

$

$

Not available

13

Toro 104962

Battery
(Superseded to 105-1692)

$

$

Not available

15

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

16

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

17

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

18

Toro 105504

ROD-HOLD DOWN

$23.99

$

In Stock, only 4 left!

0

19

$10.99

$

In Stock, only 2 left!

0

20

Toro 7262

Key-EL
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 20+

0

21

Toro 8765

Connector

$

$

Not available

22

Toro 108911

CLIP-SPRING

$4.49

$

In Stock, Qty 7

0

23

Toro 108995

TERMINAL-FUSE

$

$

Not available

24

Toro 920081

Washer
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

25

Toro 109117

AUTO-FUSEBLOCK TERM

$

$

Not available

26

$8.49

$

Usually ships in 3-6 days

0

27

Toro 109355

FUSE-BLADE, 15 AMP

$3.99

$

Usually ships in 3-6 days

0

28

Toro 108036

Headlight Retainer

$

$

Not available

29

Toro 102881

HEADLAMP

$

$

Not available

30

Toro 938018

BUSHING-NYLON .75

$

$

Not available

31

Toro 108130

LIGHT GROUND WIRE

$

$

Not available

32

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

33

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

34

Toro 920155

Washer-Lock
(Superseded to 3254-23)

$

$

Not available

35

Toro 915234

Nut
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

36

Toro 105490

CLAMP

$

$

Not available

37

Toro 908016

Bolt
(Superseded to 322-2)

$2.99

$

In Stock, Qty 17

0

38

Toro 102138

SWITCH-LIGHTS

$40.99

$

Usually ships in 3-6 days

0

39

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

40

Toro 8786

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

41

Toro 105302

CONNECTOR-5 WAY-SERV
(Superseded to 32160-014)

$5.99

$

In Stock, only 2 left!

0

42

Toro 105306

TERMINAL-TAB RCPT

$3.99

$

Usually ships in 3-6 days

0

43

Toro 102651

Terminal

$

$

Not available

44

Toro 518017

Cable Tie

$

$

Not available

45

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

46

Toro 518151

Conn Body Part of 7

$

$

Currently unavailable

47

Toro 518074

Terminal

$

$

Not available

48

Toro 109646

Conduit 216-5 Only

$

$

Not available

49

Toro 109553

Boot
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

50

Toro 109327

PTO Interlock Switch
(Superseded to 98-2392)

$78.99

$

Usually ships in 3-6 days

0

51

Toro 109178

BRACKET-SWITCH R

$

$

Not available

52

Toro 920155

Washer-Lock
(Superseded to 3254-23)

$

$

Not available

53

Toro 518077

Terminal

$

$

Currently unavailable

54

Toro 109378

Wire Terminal (Part of 1)

$

$

Currently unavailable

55

Toro 518246

Terminal Part of 5

$

$

Not available

56

Toro 109361

Wire
(Superseded to 111076)

$

$

Not available

57

Toro 109363

Starter To Solenoid Cable 16.0 in. (40.6 cm) 216-5 Only
(Superseded to 111074)

$27.99

$

Usually ships in 3-6 days

0

58

Toro 915234

Nut
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

59

Toro 920081

Washer
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

60

Toro 105805

NUT-HEX, SPECIAL
(Superseded to 218-498)

$0.99

$

In Stock, only 2 left!

0

61

Toro 110298

TRAY BATTERY

$33.99

$

In Stock, only 1 left!

0

7

Toro 109340

Wiring Harness Assy B-115 Only
(Superseded to 111720)

$

$

Not available

57

Toro 109362

Starter To Solenoid Cable 23.0 in. (58.4 cm) B-115 Only
(Superseded to 111077)

$

$

Not available

62

Toro 920242

WASHER

$6.49

$

Usually ships in 3-6 days

0
