12-11BP01 (B-115) - Toro Lawn Tractor (1983) DRIVE BELT AND PULLEYS-AUTOMATIC MODELS Parts Diagram

Lawn Tractor

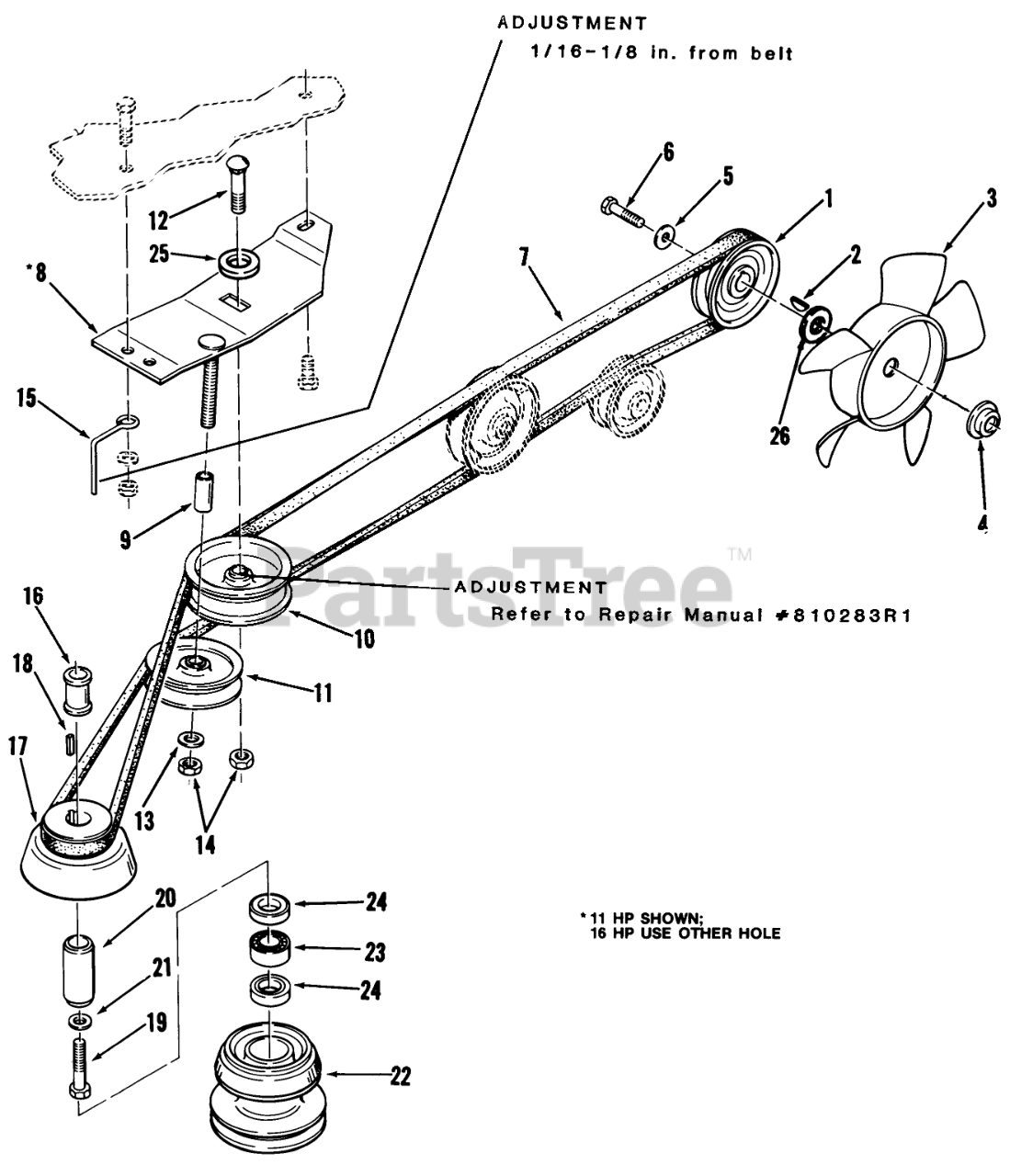

DRIVE BELT AND PULLEYS-AUTOMATIC MODELS Parts Diagram

  • Title

1

Toro 109387

PULLEY

$

$

Not available

2

Toro 937082

KEY WOODR 1/8X1/2 DI

$

$

Not available

3

Toro 109389

BLADE - FAN

$

$

Not available

4

Toro 109798

SPACER FAN

$

$

Not available

5

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0

6

Toro 908005

Bolt
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

7

Toro 109428

V-BELT

$47.99

$

In Stock, only 1 left!

0

7

Toro 109427

BELT V

$

$

Not available

8

Toro 109429

ASSY PULLEY BRACK R

$

$

Not available

9

Toro 109414

Spacer

$

$

Not available

10

Toro 105874

Flat Idler
(Superseded to 92-7104)

$29.99

$

In Stock, only 1 left!

0

11

Toro 8205

PULLEY-IDLER STATION

$25.99

$

In Stock, only 1 left!

0

12

Toro 900065

Bolt
(Superseded to 323-14)

$3.99

$

In Stock, Qty 20+

0

13

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 12

0

14

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

15

Toro 6149

Belt Retainer
(Superseded to 703294)

$

$

Not available

16

Toro 106563

TUBE SPACER

$126.99

$

Usually ships in 3-6 days

0

16

Toro 109731

TUBE SPACER

$

$

Not available

17

Toro 108408

PULLEY-ENGINE

$209.99

$

Usually ships in 3-6 days

0

18

Toro 105453

Key

$2.49

$

In Stock, only 2 left!

0

19

Toro 908195

HEX HD CAP SCREW

$

$

Not available

20

Toro 106564

RACE BEARING

$

$

Not available

21

Toro 107750

WASHER

$

$

Not available

22

Toro 106565

Assy Pulley Mwr Dr
(Superseded to 111321)

$

$

Not available

23

Toro 106769

BRG-NEEDLE OPEN END

$60.99

$

Usually ships in 3-6 days

0

24

Toro 6663

SEAL-OIL

$12.99

$

In Stock, only 1 left!

0

25

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

26

Toro 92061

Special Washer

$

$

Currently unavailable
