12-11BP01 (B-115) - Toro Lawn Tractor (1983) CLUTCH, BRAKE AND SPEED CONTROL LINKAGE Parts Diagram

Lawn Tractor

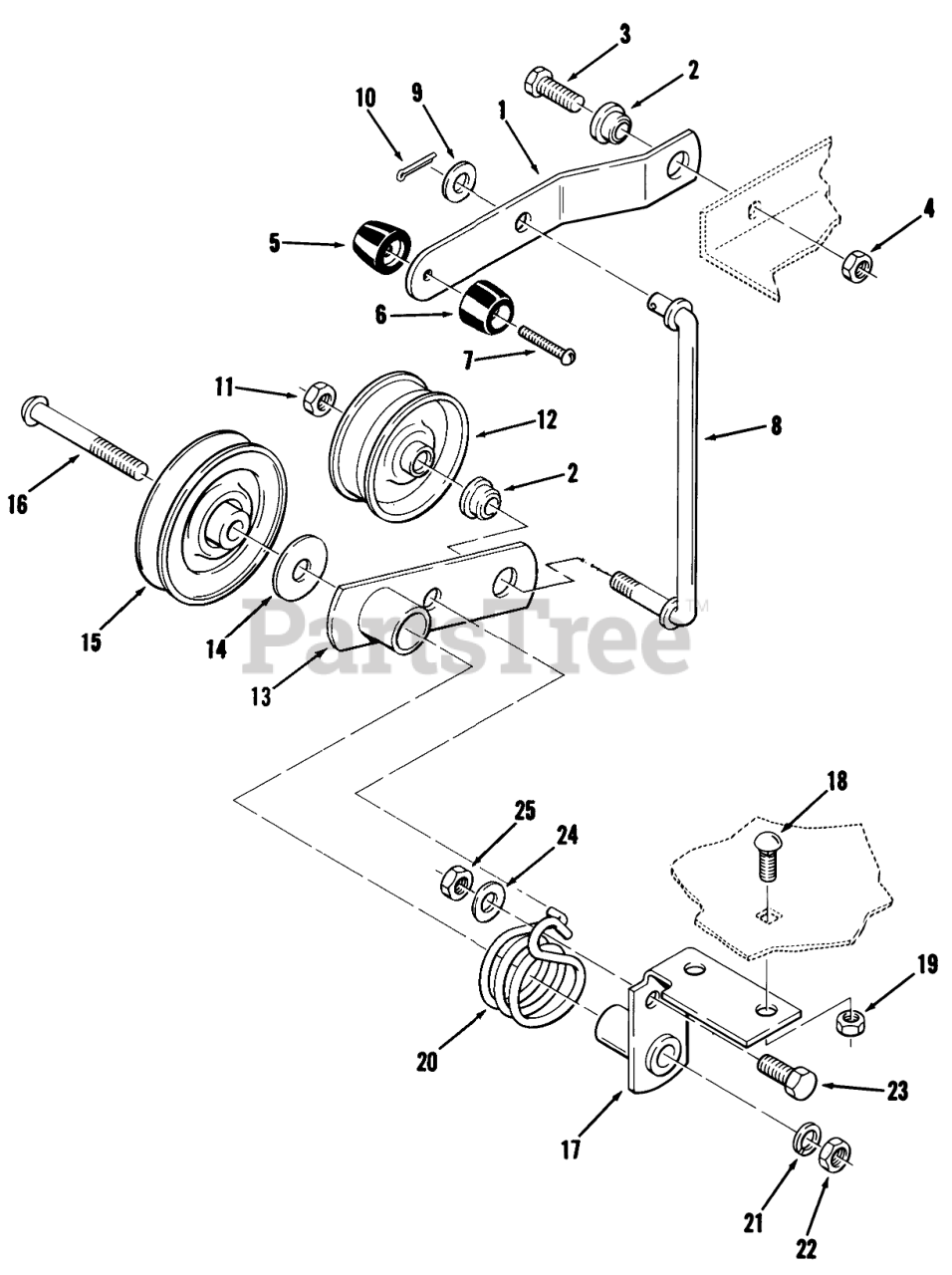

CLUTCH, BRAKE AND SPEED CONTROL LINKAGE Parts Diagram

  • Title

1

Toro 109400

LEVER-DR CLUTCHING

$

$

Not available

2

Toro 106450

SPACER-BRAKE LINK

$

$

Not available

3

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

4

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

5

Toro 8722

KNOB

$21.99

$

In Stock, only 3 left!

0

6

Toro 8693

KNOB

$5.99

$

In Stock, Qty 9

0

7

Toro 911747

BOLT-4

$4.99

$

In Stock, Qty 10

0

8

Toro 109399

Rod

$

$

Not available

9

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

10

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

11

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

12

Toro MW8821

IDLER PULLEY

$22.99

$

Usually ships in 3-6 days

0

13

Toro 109435

ASSY-IDLER ARM

$

$

Not available

14

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

15

Toro 109444

PULLEY-IDLER

$63.99

$

Usually ships in 3-6 days

0

16

Toro 109437

SCREW 3/8-16X23/4

$

$

Not available

17

Toro 109432

Idler Arm Support

$

$

Not available

18

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

19

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

20

Toro 108177

SPRING-TORSION

$16.99

$

Usually ships in 3-6 days

0

21

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

22

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

23

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 3 left!

0

24

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

25

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0
