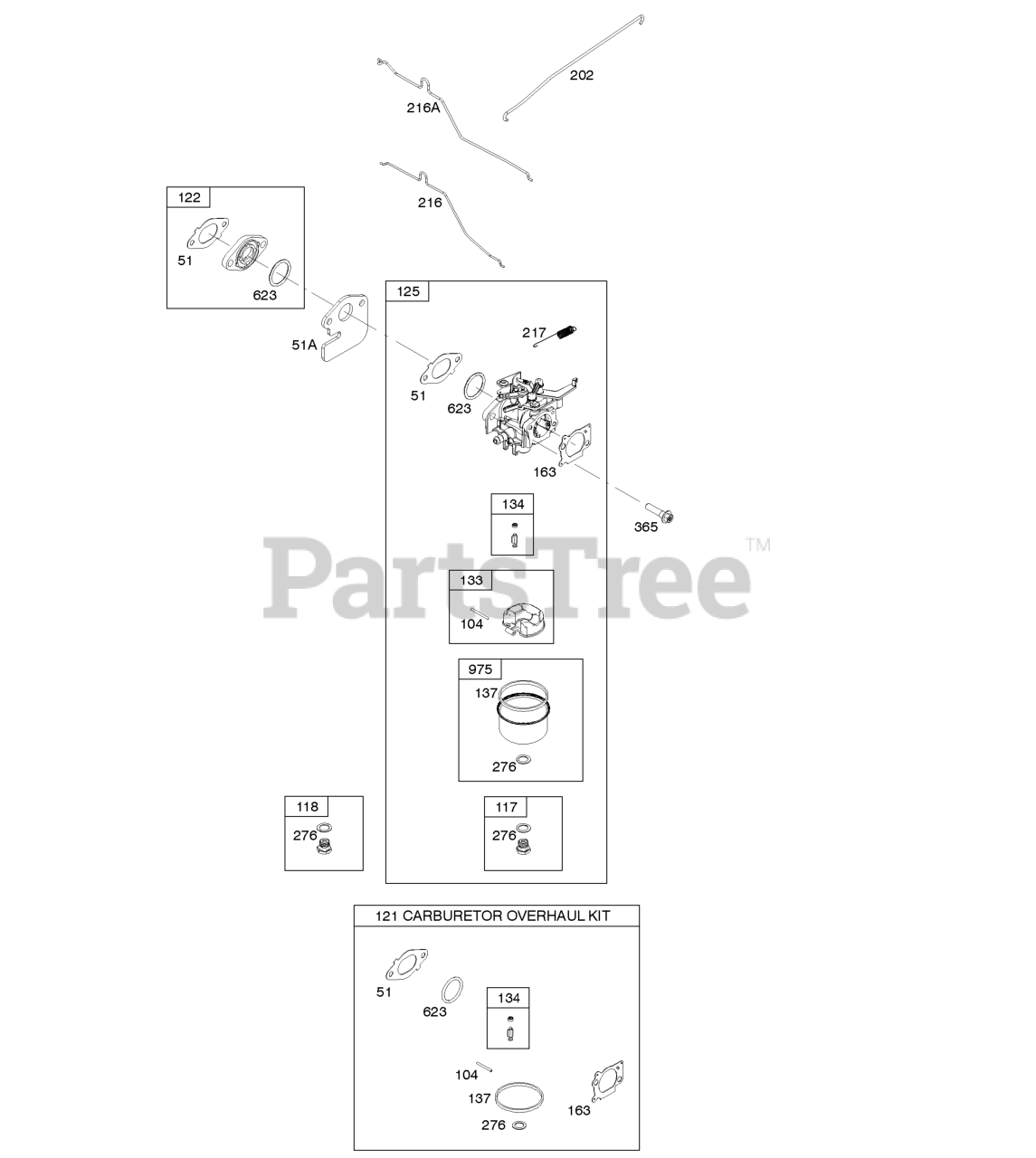

11P902-0127-B1 - Briggs & Stratton Vertical Engine Carburetor, Carburetor Overhaul Kit Parts Diagram

Vertical Engine

Carburetor, Carburetor Overhaul Kit Parts Diagram

  • Title

51

Briggs & Stratton 796596

Gasket-Intake

$4.49

$

In Stock, Qty 5

0

51A

Briggs & Stratton 590398

Gasket-Intake

$5.49

$

In Stock, Qty 10

0

104

Briggs & Stratton 797622

Pin-Float Hinge

$3.99

$

In Stock, Qty 10

0

117

Briggs & Stratton 697355

Jet-Main

Note: (Standard)

$

$

Not available

118

Briggs & Stratton 494870

Jet-Main

Note: (High Altitude)

$

$

Not available

121

Briggs & Stratton 796612

Kit-Carb Overhaul

$37.99

$

In Stock, Qty 5

0

122

Briggs & Stratton 796595

Spacer-Carburetor

$10.99

$

In Stock, only 1 left!

0

125

Briggs & Stratton 796608

Carburetor

$67.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Kit-Needle/Seat

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 796610

Gasket-Float Bowl

$6.99

$

In Stock, Qty 10

0

163

Briggs & Stratton 691894

Gasket-Air Cleaner

$4.99

$

In Stock, Qty 6

0

202

Briggs & Stratton 796657

Link-Mechanical Governor

$8.49

$

Usually ships in 2-12 days

0

216

Briggs & Stratton 796485

Link-Choke

$9.49

$

Usually ships in 2-12 days

0

217

Briggs & Stratton 798900

Spring-Choke Return

$8.49

$

In Stock, Qty 5

0

276

Briggs & Stratton 271716

Washer-Sealing

$6.99

$

In Stock, Qty 7

0

365

Briggs & Stratton 793458

Screw

Note: (Carburetor)

$3.99

$

Usually ships in 2-12 days

0

623

Briggs & Stratton 793628

Seal-O Ring

Note: (Carburetor Spacer)

$4.99

$

In Stock, Qty 17

0

975

Briggs & Stratton 796611

Bowl-Float

$

$

Not available
