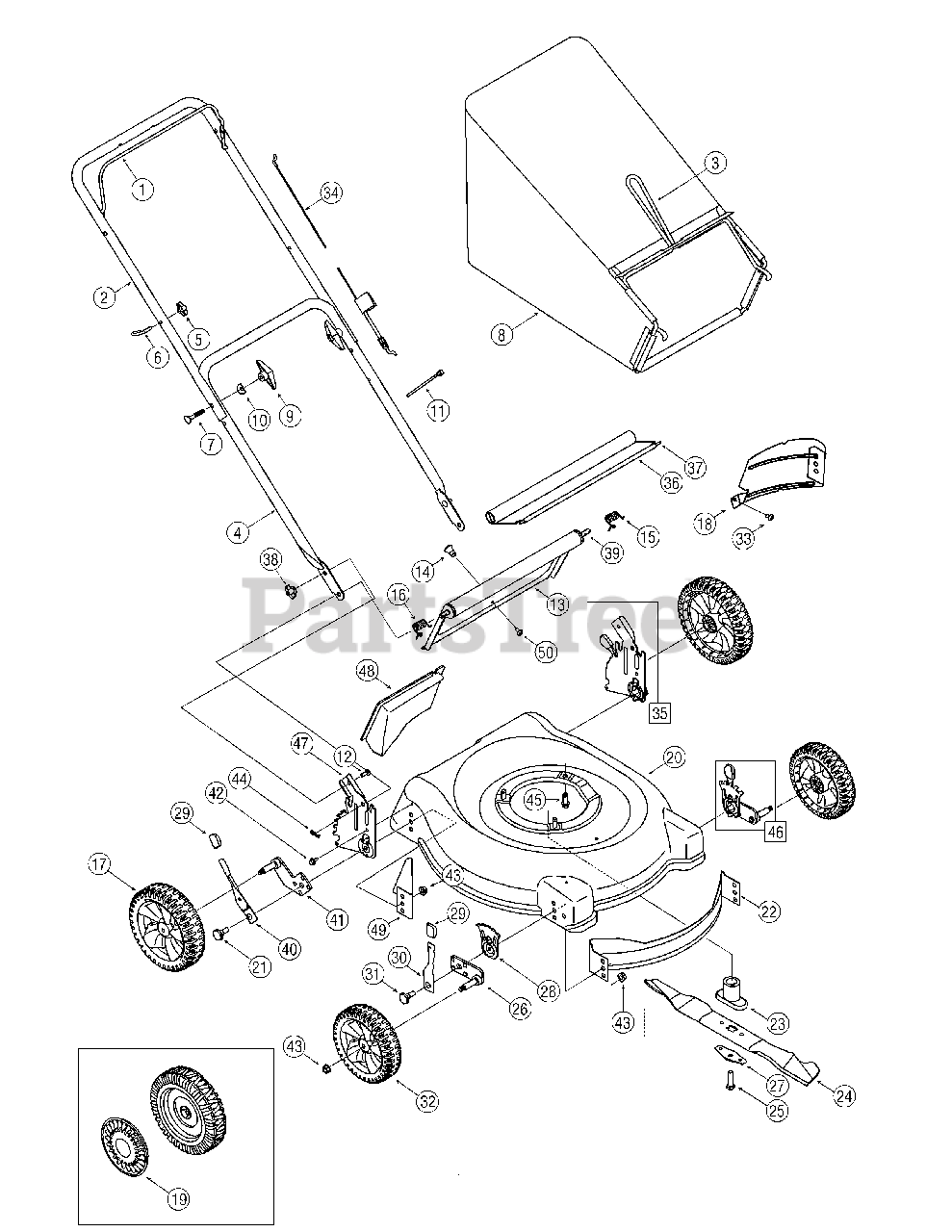

11B-414E765 - Bolens Walk-Behind Mower (2005) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 747-1161A-0637

Blade Control Handle

$13.99

$

In Stock, only 1 left!

0

2

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

3

MTD 747-04080A-0637

Grass Catcher Frame
(Superseded to 747-04080A)

$59.99

$

In Stock, Qty 5

0

4

MTD 749-0928A-0637

Lower Handle

$33.99

$

In Stock, only 2 left!

0

5

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-1174

Carriage Bolt ,5/16-18 x 2

$7.49

$

In Stock, Qty 20+

0

8

MTD 964-04007A

Grass Bag Assembly

$130.99

$

In Stock, Qty 15

0

9

MTD 920-0284

Hand Knob
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

10

MTD 936-0451

Saddle Washer
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

11

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-0703

Carriage Bolt ,1/4-20

$4.49

$

In Stock, Qty 15

0

13

MTD 753-06366

Rear Discharge Door

$46.99

$

Usually ships in 3-6 days

0

14

MTD 720-0275

Knob

$

$

Not available

15

MTD 932-0677

Torsion Spring - LH

$

$

Not available

16

MTD 732-0678

Torsion Spring - RH

$8.49

$

Usually ships in 3-6 days

0

17

MTD 734-1987

Rear Wheel

$23.99

$

In Stock, Qty 5

0

18

MTD 782-5003A

Rear Baffle

$30.99

$

Usually ships in 3-6 days

0

19

MTD 731-0981C

Hubcap

Note: If equipped

$10.99

$

In Stock, only 2 left!

0

20

MTD 753-05198-0665

Deck - 21"

$

$

Not available

21

MTD 738-04136

Shoulder Screw

$

$

Not available

22

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

23

MTD 748-0377E

Blade Adapter

$19.99

$

In Stock, only 3 left!

0

24

MTD 942-0741

Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

25

MTD 710-1257

Hex Bolt , 3/8-24 x 2.5

$7.99

$

In Stock, only 1 left!

0

26

MTD 987-02077A

Pivot Arm Assembly -RH

$17.99

$

In Stock, Qty 6

0

26

MTD 987-02076A

Pivot Arm Assembly - LH

$

$

Not available

27

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 3 left!

0

28

MTD 787-01290A

Front Adjustment Plate

$12.99

$

In Stock, only 2 left!

0

29

MTD 720-0426

Adjustment Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

30

MTD 94832

Spring Lever Assembly

$10.99

$

In Stock, only 3 left!

0

31

MTD 938-0507B

Shoulder Screw
(Superseded to 738-0507B)

$4.49

$

In Stock, only 4 left!

0

32

MTD 734-1988

Front Wheel

$20.99

$

In Stock, only 4 left!

0

33

MTD 710-1017

Screw, 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0

34

MTD 946-0957

Control Cable - 37.25"

Note: 11B-414E765

$17.99

$

In Stock, Qty 20+

0

34

MTD 946-1130

Control Cable - 40"

Note: 11B-414L765

$17.99

$

In Stock, Qty 7

0

35

MTD 753-05994

Rear Handle Bracket Assy. - LH

$82.99

$

Usually ships in 3-6 days

0

35

MTD 753-05994

Rear Handle Bracket Assy. - RH

$82.99

$

Usually ships in 3-6 days

0

36

MTD 731-04998

Trailshield

$31.99

$

In Stock, Qty 7

0

37

MTD 732-0700

Trailshield Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

38

MTD 912-0397

Wing Nut, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

39

MTD 747-04035

Rear Door Pivot Rod
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

40

MTD 732-04175

Spring Lever

$11.99

$

In Stock, only 1 left!

0

41

MTD 987-02071A

Pivot Arm Assembly - RH

$20.99

$

In Stock, only 1 left!

0

41

MTD 987-02070A

Pivot Arm Assembly - LH

$20.99

$

In Stock, only 1 left!

0

42

MTD 710-1652

AB Screw

$4.49

$

In Stock, Qty 20+

0

43

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

44

MTD 914-0104

Hairpin Clip
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

45

MTD 710-0654A

TT Sems Screw, 3/8-16 x 1.0

$4.49

$

In Stock, only 4 left!

0

46

MTD 987-02100C

Ht. Adj. Assy. Front - RH (7" Wheel)

$38.99

$

In Stock, only 1 left!

0

46

MTD 987-02099C

Ht. Adj. Assy. Front - LH (7" Wheel)

$38.99

$

Usually ships in 3-6 days

0

47

MTD 753-05994

Handle Bracket RH

$82.99

$

Usually ships in 3-6 days

0

47

MTD 753-05994

Handle Bracket LH (not shown)

$82.99

$

Usually ships in 3-6 days

0

48

MTD 782-5007C

Mulch Plug

$52.99

$

In Stock, only 1 left!

0

49

MTD 782-5004B

Rear RH Baffle

$24.99

$

Usually ships in 3-6 days

0

50

MTD 710-0192

Screw #10-24 x .375

$3.99

$

In Stock, Qty 12

0
