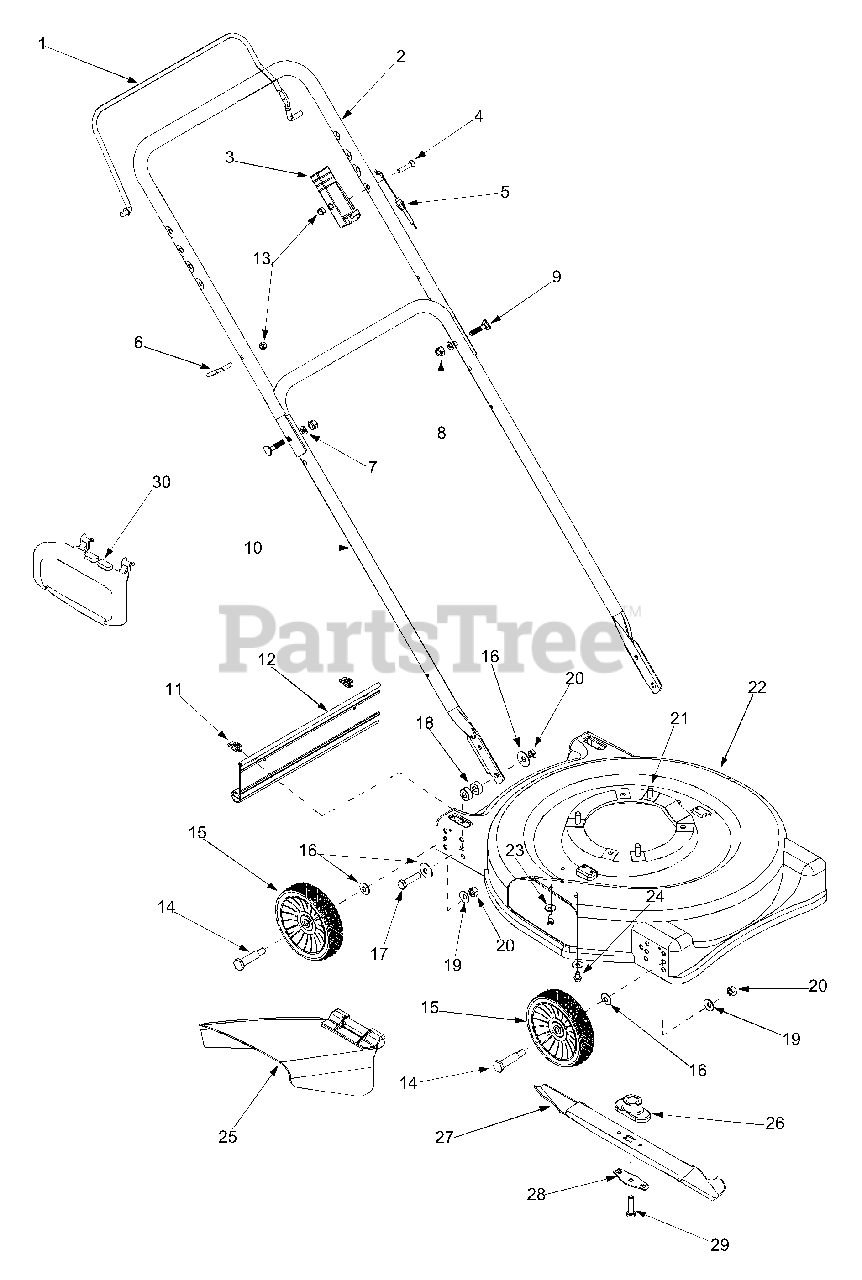

11B-062A205 - Ranch King Walk-Behind Mower (2003) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 747-0824

Control Handle
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

2

MTD 749-0538E

Upper Handle
(Superseded to 749-0538E-0637)

Variations

MTD 749-0538E-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 746-0883

Control Cable Box

$16.99

$

In Stock, only 4 left!

0

4

MTD 710-1270

Oval C-Sunk Screw

$4.49

$

Usually ships in 3-6 days

0

5

MTD 746-0551

Control Cable
(Superseded to 946-0551)

$24.99

$

In Stock, only 1 left!

0

6

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 2 left!

0

7

MTD 736-0119

Lock Washer 5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

8

MTD 712-0267

Hex Nut 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-1250

Carriage Bolt 5/16-18 x 1"

$4.99

$

In Stock, Qty 5

0

10

MTD 749-0907B

Lower Handle

Variations

MTD 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

11

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

12

MTD 731-1029

Rear Trail Shield

$26.99

$

Usually ships in 3-6 days

0

13

MTD 712-0324

Hex Lock Nut

$3.99

$

In Stock, Qty 16

0

14

MTD 738-0533

Axle Bolt

$7.99

$

Usually ships in 3-6 days

0

15

MTD 734-1780

Wheel Assembly
(Superseded to 734-04585)

$20.99

$

In Stock, only 1 left!

0

16

MTD 736-0105

Bell Washer.380 ID x .88"

$4.49

$

In Stock, Qty 20+

0

17

MTD 710-0459A

Hex Bolt 3/8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

18

MTD 750-0910

Spacer .391" ID x .850" OD
(Superseded to 950-0910)

$

$

Not available

19

MTD 736-0331

Bell Washer.39 ID x 1.13 OD

$3.99

$

In Stock, Qty 16

0

20

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

21

MTD 710-0654A

Hex Washer Screw 3/8-16 x 1"

$4.49

$

In Stock, only 3 left!

0

22

MTD 682-0086A

Deck 22"

Variations

MTD 682-0086A-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 682-0086A-0638

No Longer Available DECK ASM- - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0086A-0665

No Longer Available DECK ASM- - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-0086A-0691

No Longer Available DECK ASM- - BLACK JACK (0691)

$

$

Not available

$

$

23

MTD 736-0270

Bell Washer 1/4" ID

$3.99

$

In Stock, Qty 20+

0

24

MTD 710-0599

Hex Washer Screw 1/4-20 x.5"

$4.49

$

In Stock, Qty 20+

0

25

MTD 731-1034B

Chute Deflector Assembly
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

26

MTD 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, only 4 left!

0

27

MTD 742-0642A

Blade
(Superseded to 942-0642A)

$26.99

$

In Stock, only 1 left!

0

MTD 742-0742A

Mulching Blade
(Superseded to 942-0742A)

$24.99

$

In Stock, only 1 left!

0

28

MTD 736-0524A

Bell Blade Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 18

0

29

MTD 710-1044

Hex Bolt 3/8-24 x 1.5"

$3.99

$

Usually ships in 3-6 days

0

30

MTD 731-1386D

Snap Mulching Plug (If Equipped)

$

$

Not available
