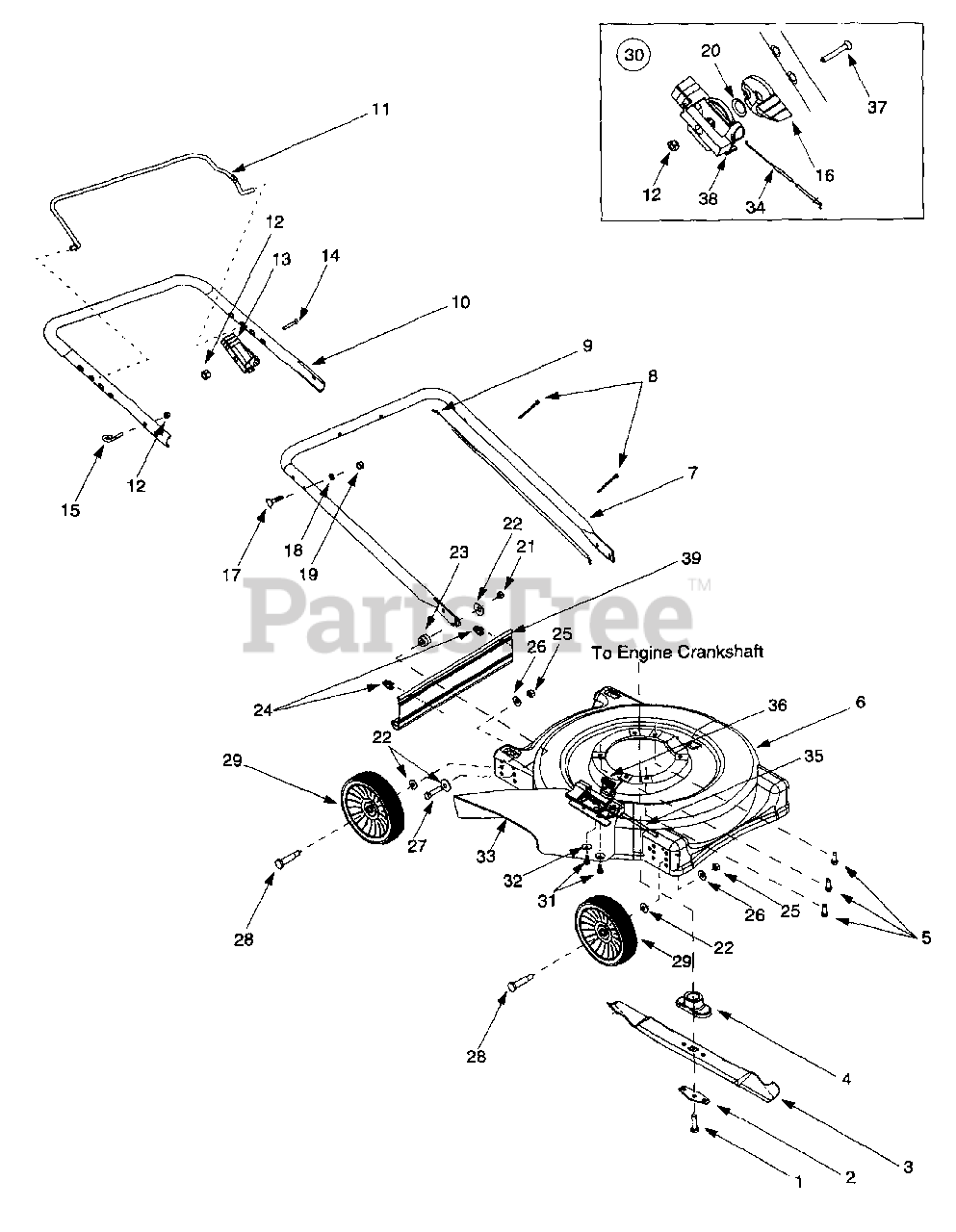

11B-060A033 - MTD Walk-Behind Mower (1999) (Ace Hardware) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title
1

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, only 2 left!

0

2

MTD 736-0524A

Support, Bell-Blade
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

3

MTD 742-0642

22" Blade, Std.
(Superseded to 942-0642A)

$26.99

$

In Stock, only 1 left!

0

4

MTD 748-0376C

Adaptor, Blade
(Superseded to 748-0376E)

$20.99

$

In Stock, only 1 left!

0

5

MTD 710-0654A

Screw: TTSems, 3/8 - 16 x 1"

$4.49

$

In Stock, Qty 20+

0

6

MTD 682-0086

Deck Assy, 22" Side Discharge

Variations

MTD 682-0086-0480

"No Longer Available DECK 22""SD" - BRILLIANT GREEN (0480)

$

$

Not available

MTD 682-0086-0483

"No Longer Available DECK 22""SD" - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-0086-0498

"No Longer Available DECK 22""SD" - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-0086-0499

"No Longer Available DECK 22""SD" - CUB BEIGE (0499)

$

$

Not available

MTD 682-0086-0638

"No Longer Available DECK 22""SD" - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

7

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

8

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

9

MTD 746-0550

Control Cable-39"
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

10

MTD 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

MTD 749-0538C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

11

MTD 747-0824

Control Handle
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

12

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

13

MTD 746-0883

Control Cable Box

$16.99

$

In Stock, only 3 left!

0

14

MTD 710-1270

Oval C-Sunk Scr.

$4.49

$

Usually ships in 3-6 days

0

15

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

16

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

Note: (Optional)

$8.49

$

In Stock, only 3 left!

0

17

MTD 710-1250

Curved Carr. Bolt 5/16-18 x 1"

$4.99

$

In Stock, Qty 5

0

18

MTD 736-0119

L-Wash. 5/16" 1.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

20

MTD 736-0501

Spring Washer
(Superseded to 936-0501)

Note: (Optional)

$6.99

$

Usually ships in 3-6 days

0

21

MTD 712-0355

Hex L-Nut 3/8-24 Thd.
(Superseded to 912-0355)

$5.49

$

Usually ships in 3-6 days

0

22

MTD 736-0105

Bell Washer .380 ID x .88"

$4.49

$

In Stock, Qty 20+

0

23

MTD 750-0910

Spacer .391" I.D. x .375" Lg.
(Superseded to 950-0910)

$

$

Not available

24

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

25

MTD 712-0798

Hex Nut 3/8 - 16

$4.49

$

In Stock, Qty 12

0

26

MTD 736-0331

Bell Washer .39 I.D. x 1.13

$3.99

$

In Stock, Qty 20+

0

27

MTD 710-0459A

Hex Bolt 3/8 - 24 x 1.5

$6.99

$

In Stock, Qty 8

0

28

MTD 738-0533

Axle Bolt

$7.99

$

Usually ships in 3-6 days

0

29

MTD 734-1780

Wheel Assy
(Superseded to 734-04585)

$20.99

$

In Stock, only 1 left!

0

30

MTD 811-00185

Throttle Box Complete
(Superseded to 811-0185)

Note: (Optional)

$36.99

$

In Stock, only 1 left!

0

31

MTD 710-0599

Hex Self-Tap Scr. 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

33

MTD 734-1034

Chute Deflector Ass'y

$

$

Currently unavailable

34

MTD 746-0842

Throttle Cable, 51"
(Superseded to 946-0671A)

Note: (Optional)

$14.99

$

In Stock, only 3 left!

0

35

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

36

MTD 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

37

MTD 710-0605

Oval C-Sunk Scr.

Note: (Optional)

$4.49

$

In Stock, only 2 left!

0

38

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

Note: (Optional)

$9.49

$

In Stock, only 3 left!

0

39

MTD 731-1029

Rear Trail Sheild

$26.99

$

Usually ships in 3-6 days

0
