11AS589T401 - Yard-Man Walk-Behind Mower (2003) General Assembly (Plastic Rear Door) Parts Diagram

Walk-Behind Mower

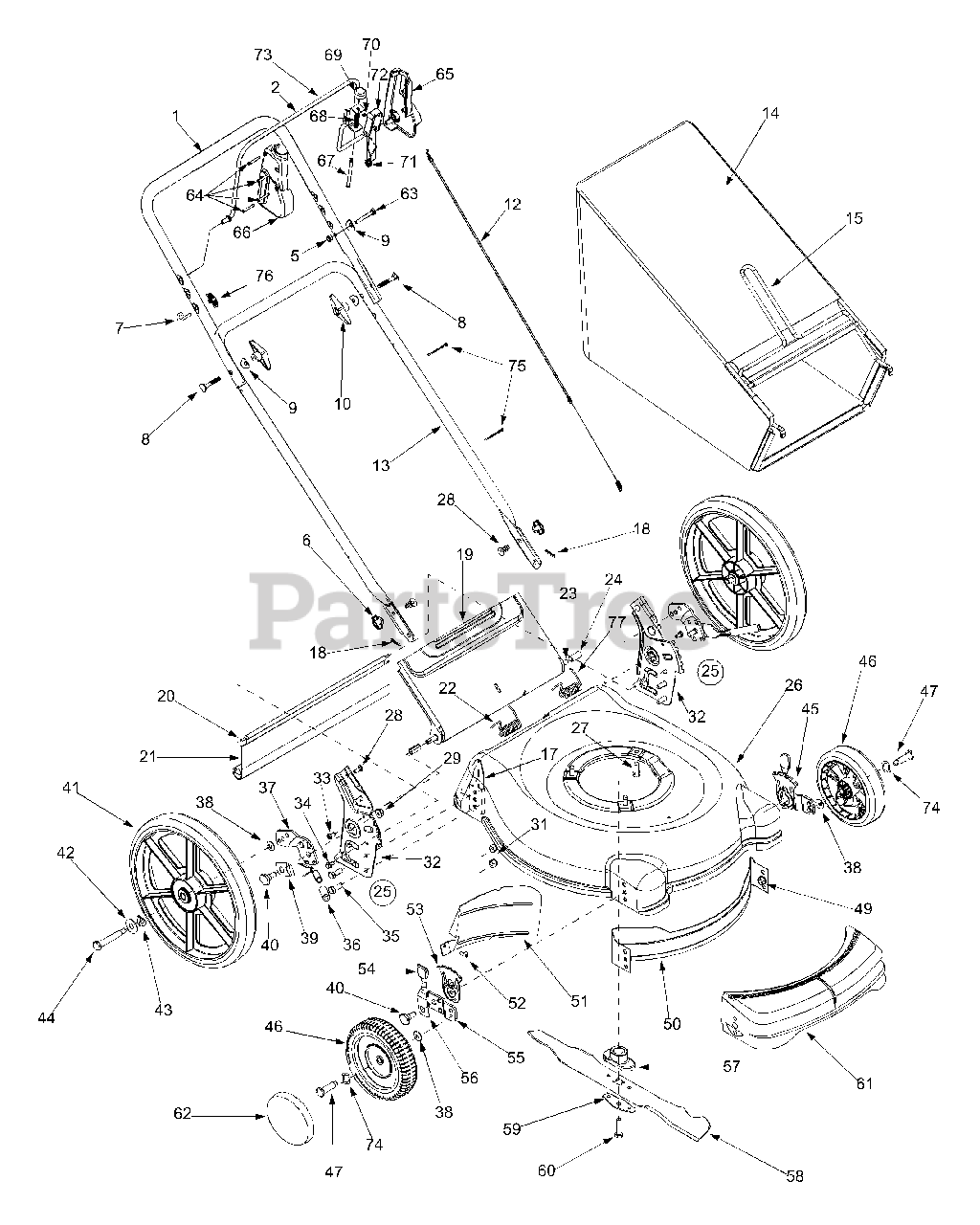

General Assembly (Plastic Rear Door) Parts Diagram

  • Title

1

MTD 749-04001

Upper Handle

Variations

MTD 749-04001-0637

No Longer Available HANDLE-UPP - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 647-0070

Control Handle

Variations

MTD 647-0070-0637

No Longer Available BAIL ASM - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

6

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-1174

Carriage Bolt 5/16-18 x 2"

$7.49

$

In Stock, Qty 20+

0

9

MTD 736-0451

Shoulder Washer.320 ID x.930 OD

$4.49

$

In Stock, Qty 11

0

10

MTD 720-0284

Wing Nut

$6.99

$

In Stock, Qty 20+

0

12

MTD 746-1141

Self Start Control Cable 58.25"
(Superseded to 946-1141)

$52.99

$

In Stock, only 3 left!

0

13

MTD 749-0907B

Lower Handle

Variations

MTD 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

14

MTD 664-0085

Grass Bag
(Superseded to 964-0084)

$193.99

$

Usually ships in 3-6 days

0

15

MTD 747-04080

Grass Catcher Frame
(Superseded to 747-04080A)

Variations

MTD 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

17

MTD 782-5004A

Rear Baffle - RH
(Superseded to 782-5004B)

Variations

MTD 782-5004A-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

18

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

19

MTD 731-04134

Grass Bag Door
(Superseded to 931-04134)

$

$

Not available

20

MTD 732-0700

Wire Rod
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

21

MTD 731-1236

Trail Shield
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

22

MTD 732-04090

Door Spring R.H.
(Superseded to 732-04090A)

$7.99

$

Usually ships in 3-6 days

0

23

MTD 747-0996

Chute Door Pivot Rod

$32.99

$

Usually ships in 3-6 days

0

24

MTD 750-04162

Spacer.375 O.D. X.50 I.D. X. 1.02"
(Superseded to 950-04162)

$

$

Not available

25

MTD 687-02032

Handle Bracket Assy. Complete - LH
(Superseded to 987-02032)

Note: (Includes 29, 32, 37, 39, 40)

$

$

Not available

MTD 687-02034

Handle Bracket Assy. Complete - RH

Note: (Includes 29, 32, 37, 39, 40)

$

$

Not available

26

MTD 787-01103

Deck 21"

Variations

MTD 787-01103-0638

SERVICE KIT:DECK 2 - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01103-0665

SERVICE KIT:DECK 2 - YARDMAN GREEN (0665)

$

$

Not available

MTD 787-01103-0691

SERVICE KIT:DECK 2 - BLACK JACK (0691)

$

$

Not available

MTD 787-01103-0709

SERVICE KIT:DECK 2 - MASTERCRAFT GREEN (0709)

$

$

Not available

$203.99

$

Usually ships in 3-6 days

0

27

MTD 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, only 4 left!

0

28

MTD 710-0703

Hex Carriage Screw 1/4-20

$4.49

$

In Stock, Qty 15

0

29

MTD 712-3005

Flange Lock Nut 3/8-16

$6.99

$

Usually ships in 3-6 days

0

31

MTD 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

32

MTD 687-02033

Handle Bracket Assembly - RH
(Superseded to 987-02033)

$

$

Not available

MTD 687-02031

Handle Bracket Assembly - LH

$

$

Not available

33

MTD 710-0286

Machine Screw 1/4-20 x.500

$4.49

$

Usually ships in 3-6 days

0

34

MTD 710-0896

Hex Washer Screw 1/4-14 x.625

$4.49

$

In Stock, Qty 20+

0

35

MTD 710-0216

Hex Cap Screw 3/8-16 x.75

$4.49

$

In Stock, Qty 15

0

36

MTD 720-0312

Foam Grip

$4.99

$

In Stock, Qty 5

0

37

MTD 17488A

Pivot Bar - RH

$15.99

$

In Stock, only 3 left!

0

MTD 17489A

Pivot Bar - LH

$15.99

$

In Stock, only 1 left!

0

38

MTD 736-0105

Spring Washer.375 ID x.870 OD

$4.49

$

In Stock, Qty 20+

0

39

MTD 732-0866

Spring Lever

$

$

Not available

40

MTD 738-0507B

Shoulder Screw

$4.49

$

In Stock, only 4 left!

0

41

MTD 734-2043

Rear Wheel Assembly 14 x 2.1

$

$

Not available

42

MTD 736-0272

Flat Washer .510 ID x 1.00 OD

$4.99

$

In Stock, Qty 20+

0

43

MTD 736-0182

Wave Washer .500 ID x 1.0 OD

$4.49

$

In Stock, Qty 7

0

44

MTD 738-0481A

Shoulder Screw
(Superseded to 938-0481A)

$6.99

$

In Stock, Qty 18

0

45

MTD 14578

Front Height Adjuster - RH
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Front Height Adjuster - LH
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

46

MTD 734-2004A

Front Wheel Assembly 8 x 2.1
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

47

MTD 738-0102

Shoulder Bolt

$9.99

$

In Stock, Qty 10

0

49

MTD 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

50

MTD 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

51

MTD 782-5003

Rear Baffle - LH
(Superseded to 782-5003A)

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

52

MTD 710-1017

Tap Screw 1/4-14 x.625.

$8.49

$

In Stock, Qty 9

0

53

MTD 15261A

Height Adjustment Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

54

MTD 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

55

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

56

MTD 732-0404

Spring Lever
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

57

MTD 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, only 1 left!

0

58

MTD 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

59

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

60

MTD 710-1044

Hex Cap Screw 3/8-24 x 1.5

$3.99

$

In Stock, only 1 left!

0

61

MTD 731-1506

Front End Cover
(Superseded to 731-1506A)

$

$

Not available

62

MTD 731-1426

Hub Cap
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

63

MTD 710-0501

Hex Hd. Cap Scr. 1/4-20 Gr.5

$7.49

$

Usually ships in 3-6 days

0

64

MTD 710-1256

Hi-Low Screw

$5.99

$

In Stock, only 2 left!

0

65

MTD 731-2532

Control Cover LH

$

$

Not available

66

MTD 731-2533

Control Cover RH

$

$

Not available

67

MTD 715-0168

Pin

$

$

Not available

68

MTD 732-1171

Compression Spring

$

$

Not available

69

MTD 720-0428

Button

$8.99

$

Usually ships in 3-6 days

0

70

MTD 716-0209

Retention Spring

$

$

Not available

71

MTD 732-1172

Torsion Spring

$

$

Not available

72

MTD 782-0156

Lever

$

$

Not available

73

MTD 731-2623

Bail Cover

Note: (Not shown)

$9.49

$

Usually ships in 3-6 days

0

74

MTD 736-0504

Wave Washer.510 x.750
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

75

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

76

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

77

MTD 732-04089

Door Spring L.H.
(Superseded to 732-04089A)

$7.99

$

Usually ships in 3-6 days

0
