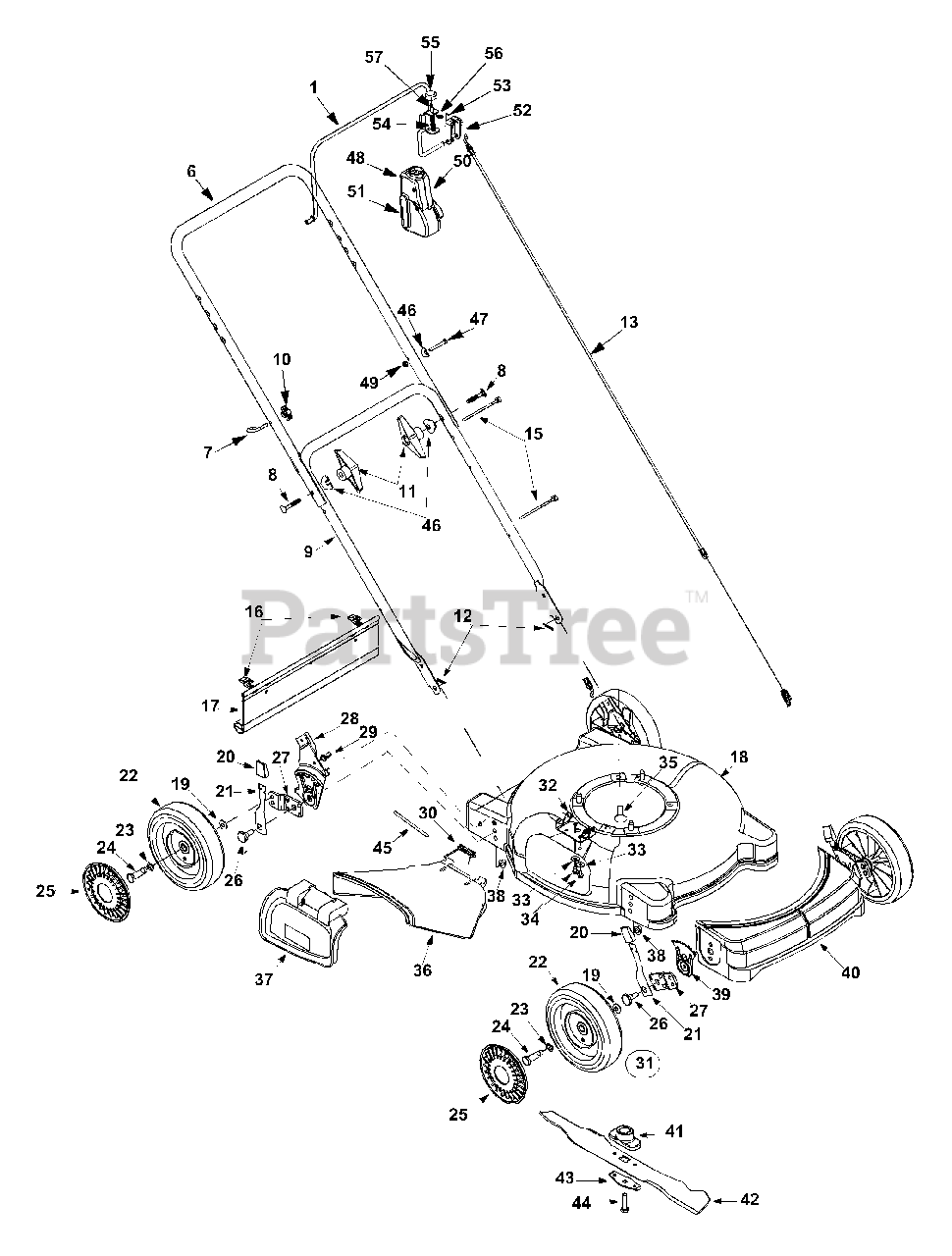

11AS106D701 - Yard-Man Walk-Behind Mower (2003) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 647-0070

Control Handle Assembly

Variations

MTD 647-0070-0637

No Longer Available BAIL ASM - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 731-2623

Bail Cover

Note: (Not shown)

$9.49

$

Usually ships in 3-6 days

0

6

MTD 749-1406A

Upper Handle
(Superseded to 749-1406A-0637)

Variations

MTD 749-1406A-0637

HANDLE-UPR EX LONG - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 2 left!

0

8

MTD 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

9

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

10

MTD 720-0279

Wing Nut

$4.49

$

Usually ships in 3-6 days

0

11

MTD 720-0284

Hand Knob

$6.99

$

In Stock, Qty 20+

0

12

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

13

MTD 746-1142

Control Cable 56.75"

$67.99

$

Usually ships in 3-6 days

0

15

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

16

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

17

MTD 731-0872A

Trail Shield
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

18

MTD 682-0139

Cutting Deck Assembly: 20"

Variations

MTD 682-0139-0606

DECK ASM- 20" - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 682-0139-0665

"No Longer Available DECK ASM- 20""" - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-0139-0498

No Longer Available DECK ASM- 2 - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-0139-0629

DECK ASM- 20" - SILVER FLAKE (0629)

$

$

Not available

MTD 682-0139-0638

"No Longer Available DECK ASM- 20""" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0139-0650

DECK ASM- 20" - RED METALLIC (0650)

$

$

Not available

MTD 682-0139-0662

DECK ASM- 20" - OYSTER GRAY (0662)

$

$

Not available

MTD 682-0139-0668

DECK ASM- 20" - MOSS GREEN (0668)

$

$

Not available

MTD 682-0139-0689

DECK ASM- 20" - POLO GREEN (0689)

$

$

Not available

MTD 682-0139-0691

DECK ASM- 20" - BLACK JACK (0691)

$

$

Not available

MTD 682-0139-0709

DECK ASM- 20" - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 682-0139-0716

DECK ASM- 20" - CUB YELLOW-99 (0716)

$

$

Not available

MTD 682-0139-4021

DECK ASM- 20" - CUB YELLOW 2 (4021)

$

$

Not available

$

$

19

MTD 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

20

MTD 720-0426

Knob: Height Adjustment
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

21

MTD 732-0404

Lever: Spring
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

22

MTD 734-2004A

Wheel Assembly
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

23

MTD 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 10

0

24

MTD 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

25

MTD 731-1426

Hubcap: Radial Spoke, Yellow
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

26

MTD 738-0507B

Shoulder Bolt

$4.49

$

In Stock, only 4 left!

0

27

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

28

MTD 682-3024

Handle Bracket Assembly RH
(Superseded to 987-02106A)

Variations

MTD 682-3024-0637

Handle Bracket Assembly, RH - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

MTD 682-3025

Handle Bracket Assembly LH
(Superseded to 987-02107A)

Note: Not shown in Illustration

Variations

MTD 682-3025-0637

Handle and Height Bracket Assembly - POWDER BLACK (0637)

$45.99

$

In Stock, only 3 left!

0

$45.99

$

In Stock, only 3 left!

0

29

MTD 738-0585

Stake Bolt

$

$

Currently unavailable

30

MTD 732-0731

Torsion Spring
(Superseded to 932-0731)

$10.99

$

Usually ships in 3-6 days

0

31

MTD 14578

Height Adjust. Assembly RH
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adjust. Assembly LH
(Superseded to 753-06761)

Note: Not shown in Illustration

$65.99

$

In Stock, Qty 7

0

32

MTD 782-7006

Mounting Bracket

Variations

MTD 782-7006-0637

BRACKET-MOUNTING H - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

33

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

34

MTD 710-0599

Hex Washer Hd. TT Screw

$4.49

$

In Stock, Qty 20+

0

35

MTD 710-0654A

TT Sems Screw

$4.49

$

In Stock, only 3 left!

0

36

MTD 731-1409

Chute Deflector
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

37

MTD 682-7002

Mulching Plug Assembly

$

$

Not available

38

MTD 712-0431

Hex Lock Nut
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

39

MTD 15261A

Height Adjustment Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

40

MTD 731-1933

Cover: Front End

$

$

Not available

41

MTD 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, Qty 5

0

MTD 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

Note: (for service)

$16.99

$

In Stock, only 1 left!

0

42

MTD 742-0740

20" Mulching Blade
(Superseded to 942-0740)

$23.99

$

In Stock, only 3 left!

0

43

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 17

0

44

MTD 710-1044

Hex Bolt

$3.99

$

In Stock, Qty 7

0

45

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

46

MTD 736-0451

Saddle Washer

$4.49

$

Usually ships in 3-6 days

0

47

MTD 710-0501

Hex Hd. Cap Screw

$7.49

$

Usually ships in 3-6 days

0

48

MTD 710-1256

Hi-Low Scr. 1/4-20

$5.99

$

In Stock, only 3 left!

0

49

MTD 712-0324

Hex Lock Nut 1/4-20 Gr. 8

$3.99

$

In Stock, Qty 16

0

50

MTD 731-2532

Control Cover LH

$

$

Not available

51

MTD 731-2533

Control Cover RH

$

$

Not available

52

MTD 782-0156

Lever

$

$

Not available

53

MTD 731-1172

Torsion Spring

$

$

Not available

54

MTD 732-1171

Compression Spring

$

$

Not available

55

MTD 720-0428

Button

$8.99

$

Usually ships in 3-6 days

0

56

MTD 716-0209

Retention Spring

$

$

Not available

57

MTD 715-0168

Pin

$

$

Not available
