11A-B2M7004 - MTD Gold Walk-Behind Mower (2012) 5P70M0C Carburetor Parts Diagram

Gold Walk-Behind Mower

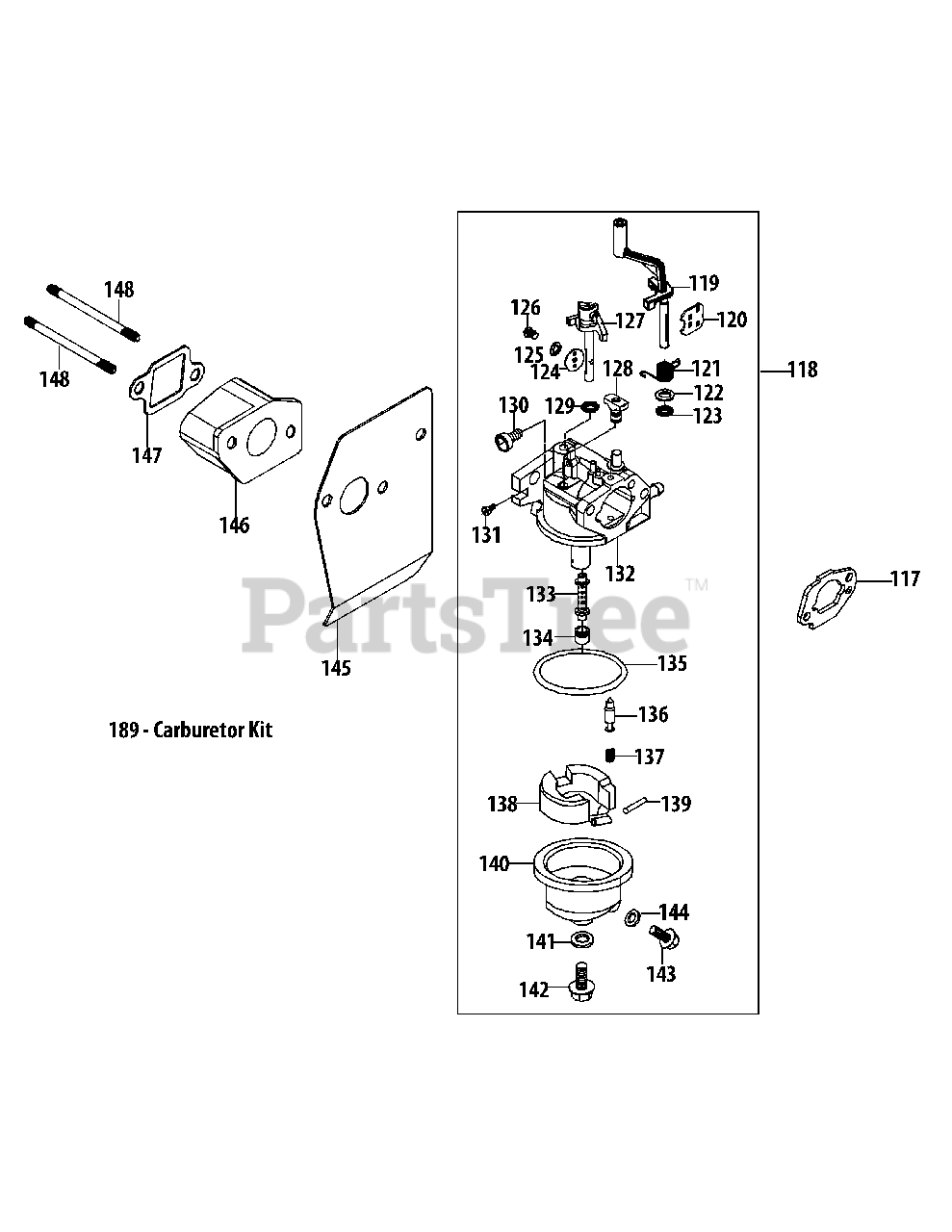

5P70M0C Carburetor Parts Diagram

  • Title
117

MTD 951-11525

Carburetor Gasket Plate

$5.49

$

In Stock, only 1 left!

0

118

MTD 951-10765

Carburetor Assembly

$97.99

$

In Stock, only 1 left!

0

119

MTD n/a

Choke Shaft

$

$

Currently unavailable

120

MTD n/a

Choke Plate

$

$

Currently unavailable

121

MTD n/a

Choke Return Spring

$

$

Currently unavailable

122

MTD 736-04556

Choke Shaft Washer

$4.49

$

Usually ships in 3-6 days

0

123

MTD n/a

Choke Shaft Fiber O-Ring

$

$

Currently unavailable

124

MTD n/a

Throttle Plate

$

$

Currently unavailable

125

MTD n/a

Throttle Plate Lock Washer

$

$

Currently unavailable

126

MTD n/a

Screw M3X5 Throttle Plate

$

$

Currently unavailable

127

MTD n/a

Throttle Shaft

$

$

Currently unavailable

128

MTD n/a

Idle Jet Assembly

$

$

Currently unavailable

129

MTD n/a

Throttle Shaft Fiber O-Ring

$

$

Currently unavailable

130

MTD n/a

Idle Speed Adjusting Screw

$

$

Currently unavailable

131

MTD n/a

Idle Mixture Screw

$

$

Currently unavailable

132

MTD n/a

Carburetor Body

$

$

Currently unavailable

133

MTD n/a

Emulsion Tube

$

$

Currently unavailable

134

MTD n/a

Main Jet

$

$

Currently unavailable

135

MTD 951-11589

Fuel Bowl O-Ring
(Superseded to 951-11589A)

$6.99

$

In Stock, Qty 20+

0

136

MTD n/a

Needle Valve

$

$

Currently unavailable

137

MTD n/a

Needle Valve Spring

$

$

Currently unavailable

138

MTD n/a

Float

$

$

Currently unavailable

139

MTD n/a

Float Pin

$

$

Currently unavailable

140

MTD n/a

Fuel Bowl

$

$

Currently unavailable

141

MTD 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

$5.99

$

In Stock, Qty 20+

0

142

MTD 710-04945

Fuel Bowl Mounting Bolt

$4.49

$

In Stock, Qty 13

0

143

MTD 710-04938

Fuel Drain Plug

$4.49

$

In Stock, Qty 10

0

144

MTD 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

145

MTD 951-11766

Carburetor Gasket

$5.99

$

In Stock, only 1 left!

0

146

MTD 951-11255

Carburetor Insulator

$4.49

$

In Stock, only 4 left!

0

147

MTD 951-11254

Carburetor Insulator Gasket

$6.49

$

In Stock, only 1 left!

0

148

MTD 710-04981

Carb Stud M6X113

$3.99

$

Usually ships in 3-6 days

0

189

MTD 951-11773

Carburetor Repair Kit - Major
(Superseded to 951-14252)

Note: (Incl.119,130,133-139,141,144)

$58.99

$

Usually ships in 3-6 days

0
