11A-B0SD731 - Huskee Walk-Behind Mower (2015) 5T65RU Crankshaft & Cover Parts Diagram

Walk-Behind Mower

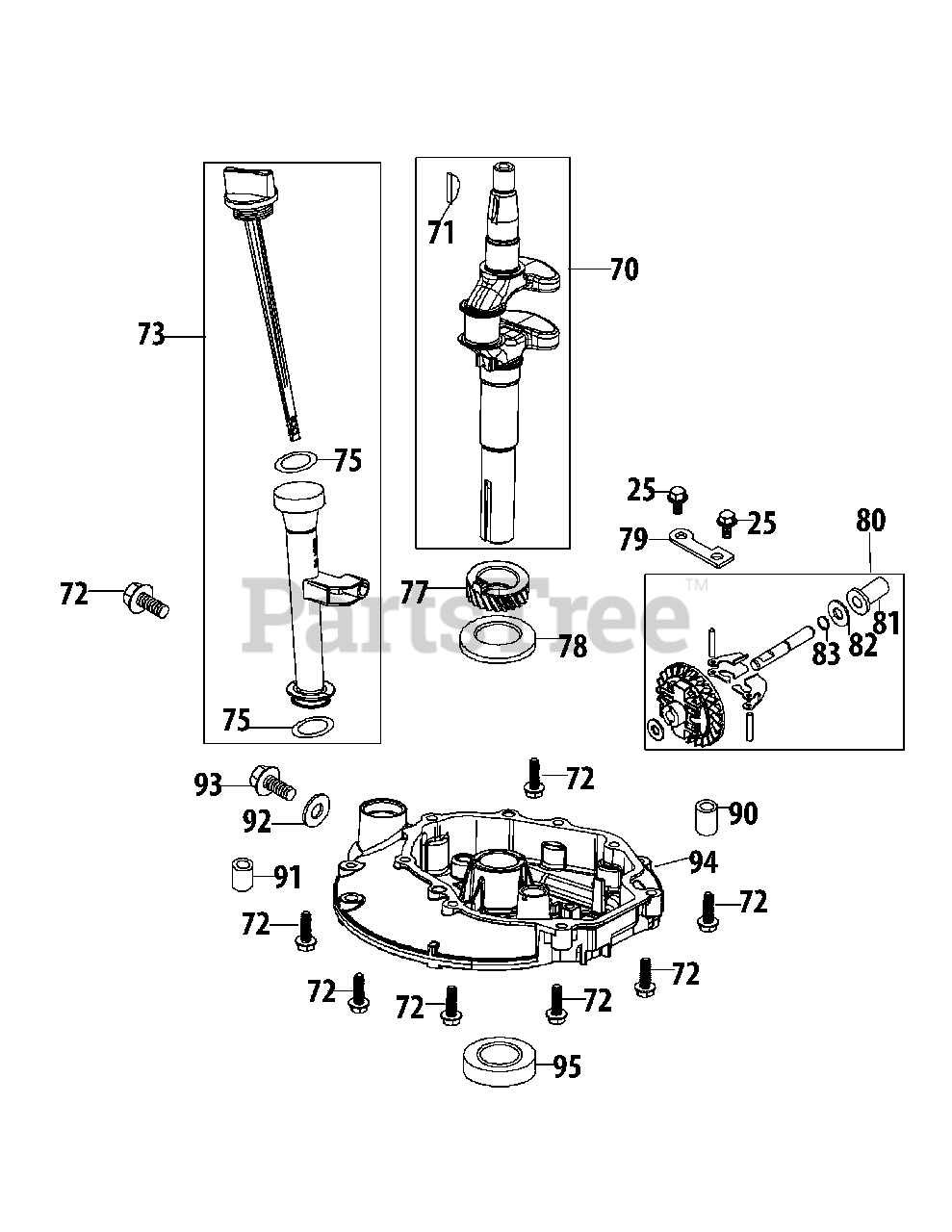

5T65RU Crankshaft & Cover Parts Diagram

  • Title

25

MTD 710-04916

Bolt M6×14 Multi-Purpose

$4.49

$

In Stock, Qty 12

0

70

MTD 751-14687

Crankshaft Assembly
(Superseded to 951-14687)

$97.99

$

Usually ships in 3-6 days

0

71

MTD 951-10307

Flywheel Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

72

MTD 710-04943

Bolt M6X28 T/X/P Crankcase/Dp Stick

$4.49

$

In Stock, only 2 left!

0

73

MTD 931-10359

Dipstick Assembly

$13.99

$

Usually ships in 3-6 days

0

75

MTD 951-11546

Dipstick / Oil Fill Tube O-Ring

$3.99

$

In Stock, Qty 13

0

77

MTD 931-10288

Timing Gear
(Superseded to 931-10288A)

$9.49

$

Usually ships in 3-6 days

0

78

MTD 736-04491

Crankshaft Thrust Washer

$4.49

$

Usually ships in 3-6 days

0

79

MTD 951-11609

Governor Gear Mounting Plate

$5.49

$

Usually ships in 3-6 days

0

80

MTD 951-11549

Governor Gear/Shaft Assembly

$12.99

$

Usually ships in 3-6 days

0

81

MTD 931-09595

Governor Slide Cap

$5.99

$

Usually ships in 3-6 days

0

82

MTD 936-05038

Governor Slide Cap Washer

$4.99

$

In Stock, only 2 left!

0

83

MTD 916-05003

Governor Shaft Stop Ring

$5.99

$

In Stock, only 1 left!

0

90

MTD 715-04092

Crankcase Cover Dowel Pin 7×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

91

MTD 715-04096

Crankcase Cover Dowel Pin 9×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

92

MTD 736-04440

Oil Drain Plug Washer
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

93

MTD 710-04906

Oil Drain Plug

$6.99

$

In Stock, Qty 13

0

94

MTD 951-14735

Crankcase Cover

$81.99

$

Usually ships in 3-6 days

0

95

MTD 951-11545

Lower Crankshaft Seal
(Superseded to 951-11545A)

$10.99

$

In Stock, Qty 10

0
