11A-B0JC006 - MTD Walk-Behind Mower (2011) 1P65B0B Crankshaft Parts Diagram

Walk-Behind Mower

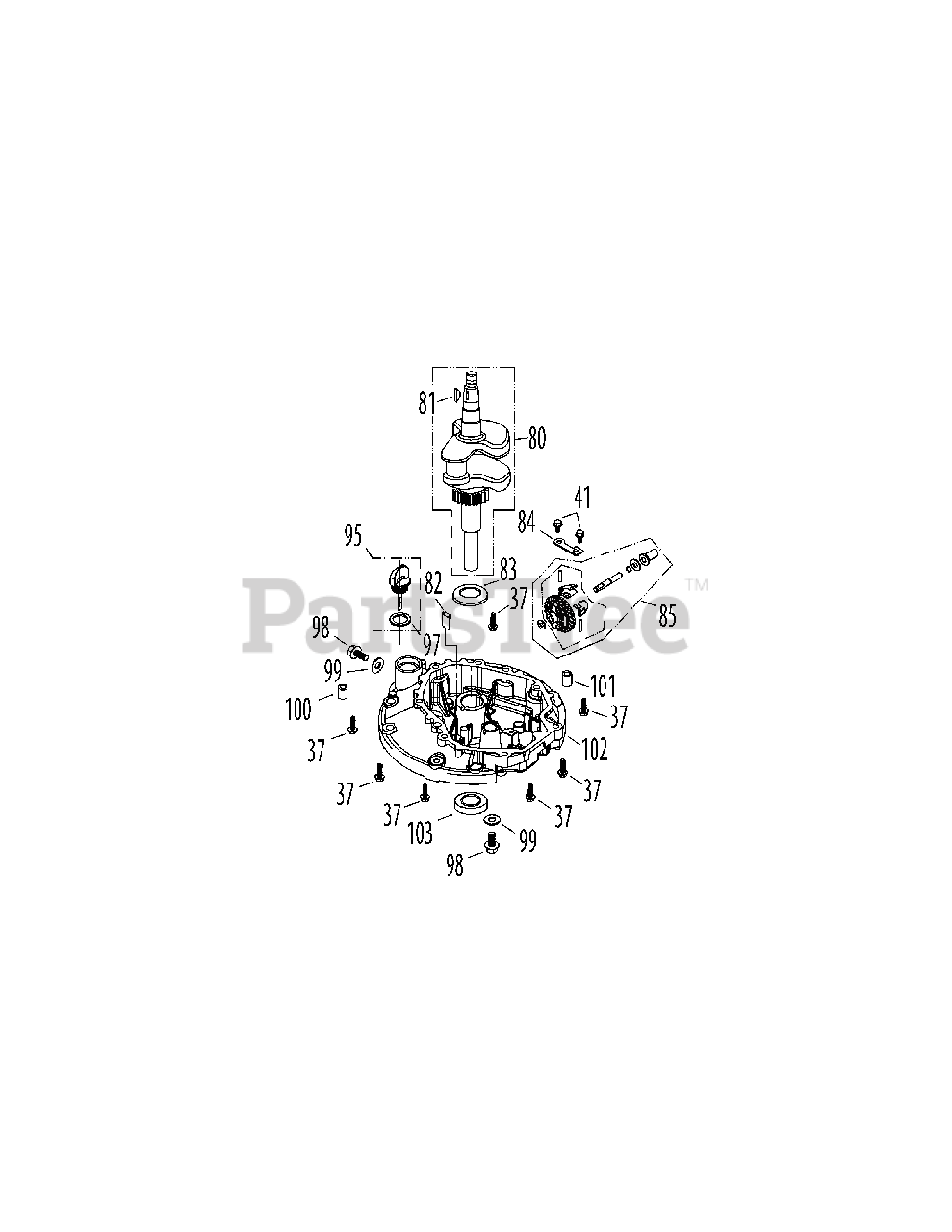

1P65B0B Crankshaft Parts Diagram

  • Title

37

MTD 710-04920

Bolt M6x28
(Superseded to 710-04931)

$6.99

$

Usually ships in 3-6 days

0

38

MTD 951-10367

Ignition Coil Assembly

$103.99

$

Usually ships in 3-6 days

0

41

MTD 710-04916

Bolt M6×14

$4.49

$

In Stock, Qty 12

0

80

MTD 951-11591

Crankshaft Assembly

$234.99

$

Usually ships in 3-6 days

0

81

MTD 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

82

MTD 951-11733

Oil Return Seal

$4.99

$

Usually ships in 3-6 days

0

83

MTD 736-04491

Crankshaft Thrust Washer

$4.49

$

Usually ships in 3-6 days

0

84

MTD 951-11609

Governor Gear Mounting Plate

$5.49

$

Usually ships in 3-6 days

0

85

MTD 951-11549

Governor Gear/Shaft Assembly

$12.99

$

Usually ships in 3-6 days

0

95

MTD 951-10617

Dipstick Assembly

$17.99

$

Usually ships in 3-6 days

0

97

MTD 951-11734

Dipstick O-Ring

$4.49

$

Usually ships in 3-6 days

0

98

MTD 710-04906

Oil Drain Plug

$6.99

$

In Stock, Qty 12

0

99

MTD 736-04440

Oil Drain Plug Washer
(Superseded to 736-04440A)

$6.99

$

In Stock, only 1 left!

0

100

MTD 715-04089

Crankcase Cover Dowel 9x14

$3.99

$

Usually ships in 3-6 days

0

101

MTD 715-04092

Crankcase Cover Dowel 7x14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

102

N/A

Crankcase Cover

Note: Furnish 951-11747, Shortblock Assembly

$

$

Not available

103

MTD 951-11545

Lower Crankshaft Seal
(Superseded to 951-11545A)

$10.99

$

In Stock, Qty 10

0

MTD 951-10370

Oil Drain Plug & Washer Ass'y

Note: Not Shown (Incl. Ref No. 98,99)

$9.49

$

Usually ships in 3-6 days

0
