11A-B0BL765 - Bolens Walk-Behind Mower (2016) Rear Baffle Assembly & Deck Parts Diagram

Walk-Behind Mower

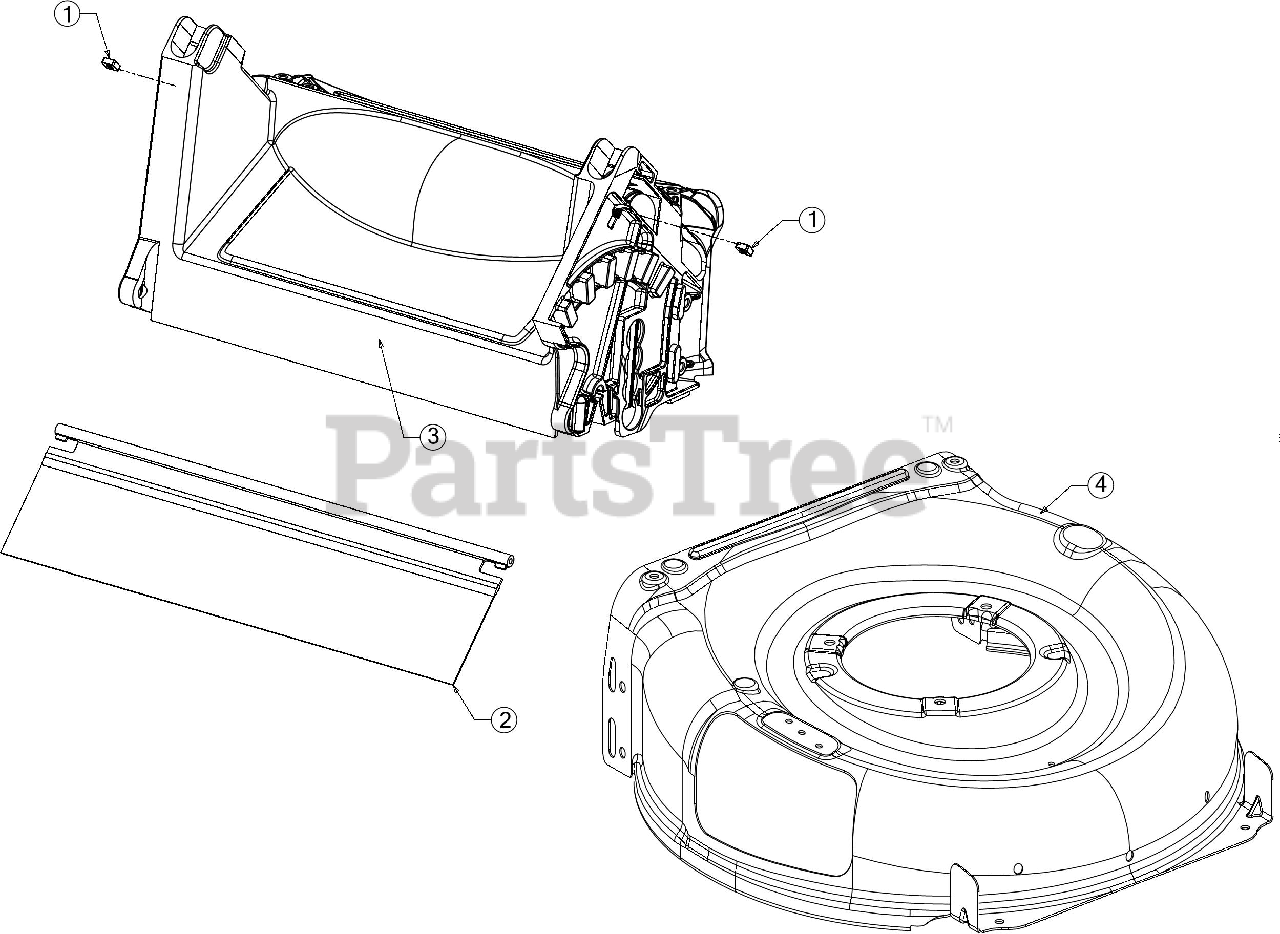

Rear Baffle Assembly & Deck Parts Diagram

  • Title
1

MTD 712-04222

SQUARE NUT 1/4-20

$5.49

$

In Stock, only 2 left!

0

2

MTD 731-07203

TRAILSHIELD

$10.99

$

In Stock, only 2 left!

0

3

N/A

N/A

Note: (Not Serviceable; Order Part Number 931-04485A)

$

$

Not available

4

MTD 787-01869B-0709

21" DECK (3N1)

$143.99

$

Usually ships in 3-6 days

0
