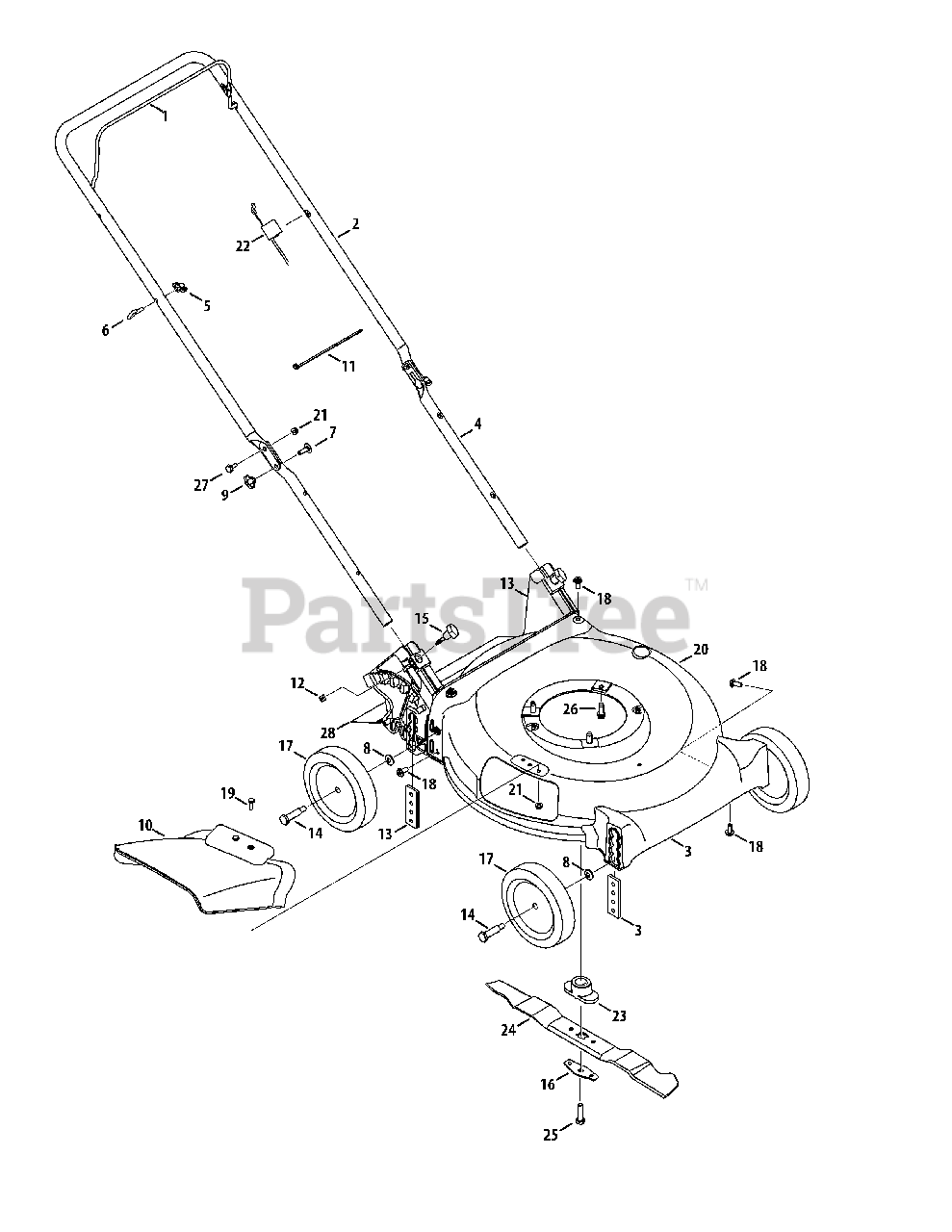

11A-A40X897 - Columbia Walk-Behind Mower (2015) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title
1

MTD 747-05184D

Blade Control

$7.49

$

In Stock, only 3 left!

0

2

MTD 749-04681B-0637

Upper Handle
(Superseded to 749-05084B-0637)

$33.99

$

In Stock, Qty 6

0

3

MTD 631-04516A

Front Cover Assembly

$34.99

$

In Stock, Qty 6

0

4

MTD 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.99

$

In Stock, only 4 left!

0

5

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-04998

Carriage Screw ,5/16-18

$5.99

$

In Stock, only 2 left!

0

8

MTD 736-0105

Washer, .401 x .870 x .060

$4.49

$

In Stock, Qty 20+

0

9

MTD 720-04122

Wing Knob

$6.99

$

In Stock, Qty 20+

0

10

MTD 731-07877

Side Chute

$20.99

$

Usually ships in 3-6 days

0

11

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-04222

Nut, Sq., 1/4-20

$5.49

$

In Stock, only 2 left!

0

13

MTD 631-04594A

Rear Baffle

$47.99

$

Usually ships in 3-6 days

0

14

MTD 738-04466

Shoulder Screw

$4.49

$

In Stock, Qty 7

0

15

MTD 720-05066A

Wing Nut

$4.49

$

In Stock, Qty 20+

0

16

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

17

MTD 734-04063B

Wheel, 7" Star-Dia., Oys. Gray

$18.99

$

In Stock, only 3 left!

0

18

MTD 710-04995A

Screw, 5/16-14 x .750

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-3015

Screw, 1/4-20 x .750

$3.99

$

In Stock, Qty 20+

0

20

MTD 787-01869B-0606

Deck , 21"

$133.99

$

Usually ships in 3-6 days

0

21

MTD 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

22

MTD 946-04661A

Control Cable

$13.99

$

In Stock, Qty 20+

0

23

MTD 748-0376E

Blade Adapter

$20.99

$

In Stock, only 3 left!

0

24

MTD 942-0741A

Mulching Blade

$29.99

$

In Stock, Qty 20+

0

25

MTD 710-1044

Screw , 3/8-24 x 1.50

$3.99

$

In Stock, Qty 8

0

26

MTD 710-04683C

TT Sems Screw, 3/8-16 x 1.0

$6.49

$

In Stock, only 4 left!

0

27

MTD 738-04419A

Sldr. Screw, .375 x .126 x 1/4-20

$4.49

$

In Stock, Qty 20+

0

28

MTD 731-07203

Trail shield

$10.99

$

In Stock, Qty 6

0
