11A-A40M897 - Columbia Walk-Behind Mower (2013) General Assembly Parts Diagram

Walk-Behind Mower

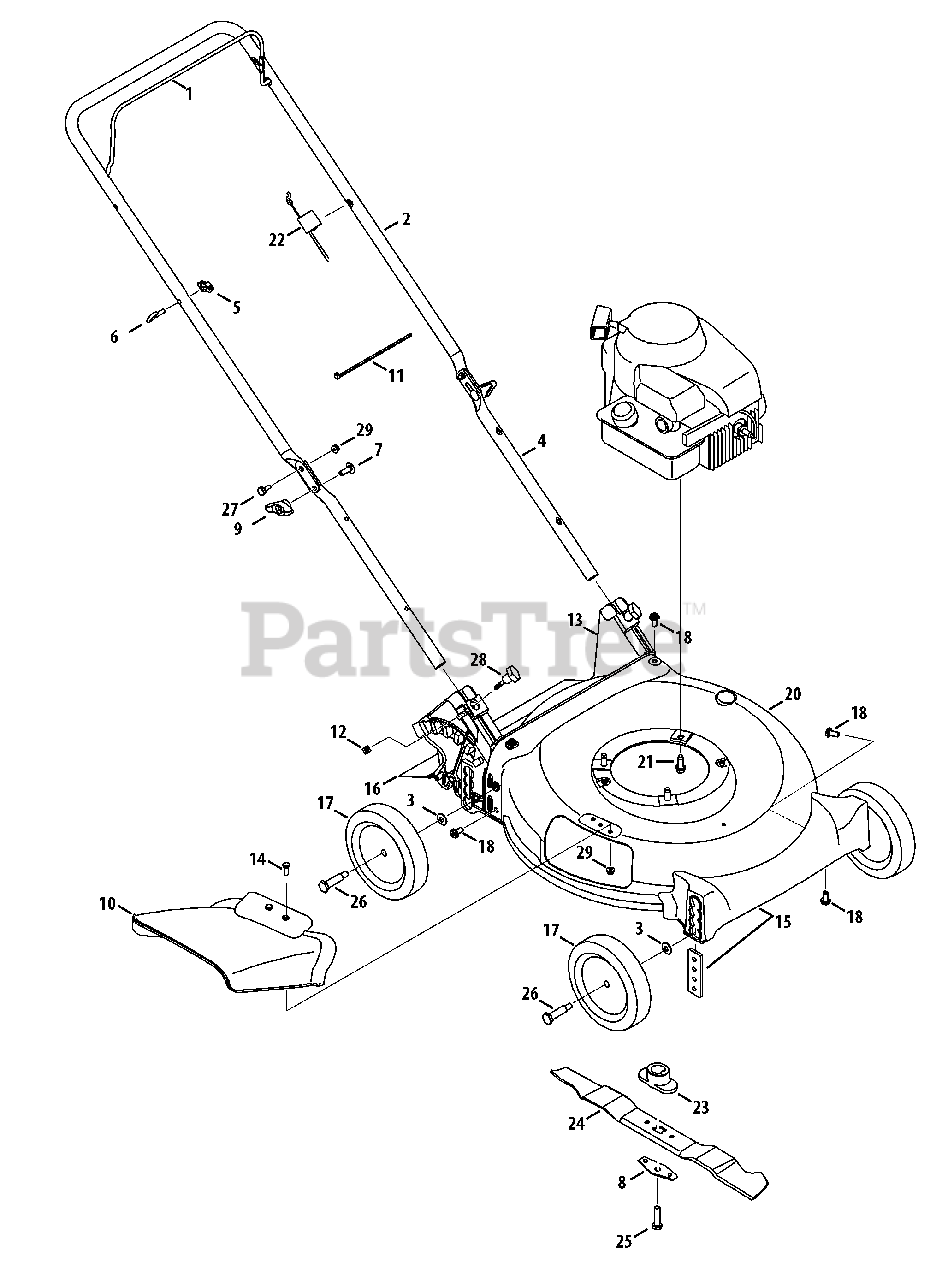

General Assembly Parts Diagram

  • Title
1

MTD 747-05184B

Blade Control Handle - Black
(Superseded to 747-05184D)

$7.49

$

In Stock, only 3 left!

0

2

MTD 749-04681-0637

Upper Handle - Black (adjustable)
(Superseded to 749-05084B-0637)

$33.99

$

In Stock, Qty 6

0

3

MTD 736-0105

Cupped Washer

$4.49

$

In Stock, Qty 20+

0

4

MTD 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.99

$

In Stock, only 4 left!

0

5

MTD 720-0279

Knob 1/4-20

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-04998

Carriage Bolt 5/16-18

$5.99

$

In Stock, only 2 left!

0

8

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

9

MTD 720-04122

Wing Knob 5/16-18 Black

$6.99

$

In Stock, Qty 20+

0

10

MTD 731-07877

Chute Deflector

$20.99

$

Usually ships in 3-6 days

0

11

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-04222

Sq. Nut 1/4-20

$5.49

$

In Stock, only 2 left!

0

13

MTD 631-04594A

Rear Baffle Ass’y

$47.99

$

Usually ships in 3-6 days

0

14

MTD 710-3015

Hex. Hd. Cap Scr. 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

15

MTD 631-04516A

Front Axle Cover

$34.99

$

In Stock, Qty 6

0

16

MTD 731-07203

Trailing Shield 4.54 x 17.37

$10.99

$

In Stock, Qty 6

0

17

MTD 734-04063A

Wheel Ass’y 7 x 1.5 Diamond Star
(Superseded to 734-04063B)

$18.99

$

In Stock, only 3 left!

0

18

MTD 710-04995A

Hex Hd. Cap Scr. 5/16-14 x .75

$4.49

$

In Stock, Qty 20+

0

20

MTD 787-01869A-0606

21" Deck Ass’y
(Superseded to 787-01869B-0606)

$133.99

$

Usually ships in 3-6 days

0

21

MTD 710-04683A

Hex Wash HD Tap Scr 3/8-16 x 1.0
(Superseded to 710-04683C)

$6.49

$

In Stock, only 4 left!

0

22

MTD 946-0957

Control Cable, 148 cc B&S

$17.99

$

In Stock, Qty 20+

0

23

MTD 748-0376E

Blade Adapter

$20.99

$

In Stock, only 3 left!

0

24

MTD 942-0741A

21" Mulching Blade

$29.99

$

In Stock, Qty 20+

0

25

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg. (Gr 8)

$3.99

$

In Stock, Qty 8

0

26

MTD 738-04466

Shoulder Screw .498 x 1.6

$4.49

$

In Stock, Qty 7

0

27

MTD 738-04419A

Shoulder Screw .375 x .126 x 1/4-20

$4.49

$

In Stock, Qty 20+

0

28

MTD 720-04123A

Knob 1/4-20 x 1.725 Black
(Superseded to 720-05066A)

$4.49

$

In Stock, Qty 20+

0

29

MTD 712-04064

Flanged Lock Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+
