11A-A09Q897 - Columbia Walk-Behind Mower (2012) General Assembly 11A-A09Q897 Parts Diagram

Walk-Behind Mower

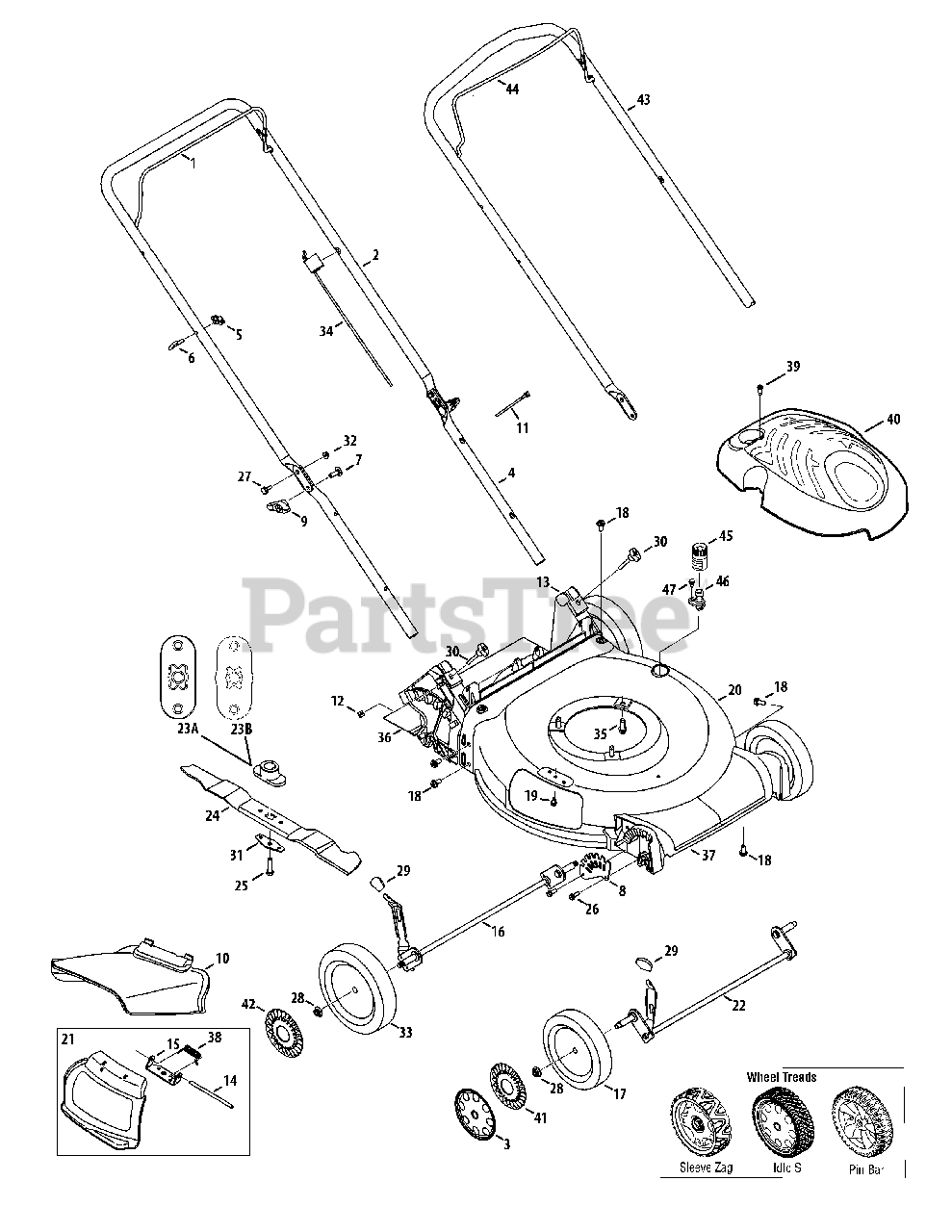

General Assembly 11A-A09Q897 Parts Diagram

  • Title
1

MTD 747-05184A

Blade Control Handle - Black
(Superseded to 747-05184D)

$7.49

$

In Stock, only 4 left!

0

2

MTD 749-04681-0637

Upper Handle - Black (adjustable)
(Superseded to 749-05084B-0637)

$33.99

$

Usually ships in 3-6 days

0

3

MTD 731-08202

Hub Cap (7")

$7.49

$

In Stock, only 1 left!

0

4

MTD 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.99

$

In Stock, Qty 7

0

5

MTD 720-0279

Knob 1/4-20

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-04998

Carriage Bolt 5/16-18

$5.99

$

In Stock, Qty 5

0

8

MTD 787-01818A-0637

Front Height Adjustment Plate

$10.99

$

In Stock, only 1 left!

0

9

MTD 720-04122

Wing Knob 5/16-18 Black

$6.99

$

In Stock, Qty 12

0

10

MTD 731-07486

Chute Deflector

$16.99

$

In Stock, Qty 5

0

11

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-04222

Sq. Nut 1/4-20

$5.49

$

Usually ships in 3-6 days

0

13

MTD 631-04491A

Rear Baffle

$35.99

$

Usually ships in 3-6 days

0

14

MTD 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

15

MTD 787-01779

Chute Deflector Bracket

$4.99

$

In Stock, only 1 left!

0

16

MTD 911-04142

Rear Axle Ass'y - 8" wheel
(Superseded to 911-04142A)

$31.99

$

In Stock, Qty 7

0

17

MTD 634-04642

Wheel Ass'y 7 x 2.0 Sleeve Zag Black

$26.99

$

In Stock, only 1 left!

0

18

MTD 710-04995

Hex Hd. Cap Screw 5/16-14 x .75
(Superseded to 710-04995A)

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-05073

Sems TT Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

20

MTD 787-01869A-0606

21" Deck Ass’y
(Superseded to 787-01869B-0606)

$133.99

$

Usually ships in 3-6 days

0

21

MTD 687-02531

Hinged Mulch Plug Ass'y (Incl. ref. no.15, 38 & 14)
(Superseded to 987-05206)

$30.99

$

Usually ships in 3-6 days

0

22

MTD 911-04143B

Front Axle Ass'y - 7 " wheel
(Superseded to 611-04143B)

$30.99

$

In Stock, only 2 left!

0

23B

MTD 748-04096

Blade Adapter (25 mm x 1.19)

$22.99

$

In Stock, Qty 20+

0

24

MTD 942-0741A

21" Mulching Blade

$29.99

$

In Stock, Qty 20+

0

25

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg. (Gr 8)

$3.99

$

In Stock, only 1 left!

0

26

MTD 710-0895

Screw, 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

27

MTD 738-04419A

Shoulder Screw .375 x .126 x 1/4-20

$4.49

$

In Stock, Qty 15

0

28

MTD 712-04217

Flange Locknut 3/8-16 Gr. F Nylon

$4.49

$

In Stock, Qty 17

0

29

MTD 720-04130

Knob (Black)

$4.99

$

In Stock, only 1 left!

0

30

MTD 720-04123A

Knob 1/4-20 x 1.725 Black
(Superseded to 720-05066A)

$4.49

$

In Stock, only 1 left!

0

31

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

32

MTD 712-04064

Flanged Lock Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

33

MTD 734-04630

Wheel Ass'y 8 x 2.125 Sleeve Zag Black

$

$

Not available

34

MTD 946-04670

Control Cable, 160 cc Honda
(Superseded to 946-04670A)

$26.99

$

In Stock, only 3 left!

0

35

MTD 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$4.49

$

In Stock, only 4 left!

0

36

MTD 731-07203

Trailing Shield 4.54 x 17.37

$10.99

$

In Stock, only 2 left!

0

37

MTD 731-07078A

Front Axle Cover
(Superseded to 753-08680)

$50.99

$

In Stock, only 3 left!

0

38

MTD 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

39

MTD 710-04744

Screw, HL, #12-16 x 1.0

$5.49

$

In Stock, Qty 11

0

40

MTD 931-04474

En gine Shroud M1.1 Black

$21.99

$

Usually ships in 3-6 days

0

41

MTD 731-07001

Hub Cap (7")

$5.49

$

In Stock, only 2 left!

0

42

MTD 731-08202

Hub Cap (8")

$7.49

$

In Stock, only 1 left!

0

43

MTD 749-04682-0637

Upper Handle (Ergo)
(Superseded to 749-04682A)

$51.99

$

Usually ships in 3-6 days

0

44

MTD 747-05204-0637

Blade Control Handle

$22.99

$

Usually ships in 3-6 days

0

45

MTD 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

46

MTD 731-07487

Deck Water Nozzle

$4.49

$

In Stock, only 1 left!

0

47

MTD 738-04278

Shoulder Screw 1/4-20 x .50

$6.99

$

In Stock, Qty 5

0
