11A-596C402 - Yard-Man Walk-Behind Mower (2002) (Sears) General Assembly Parts Diagram

Walk-Behind Mower

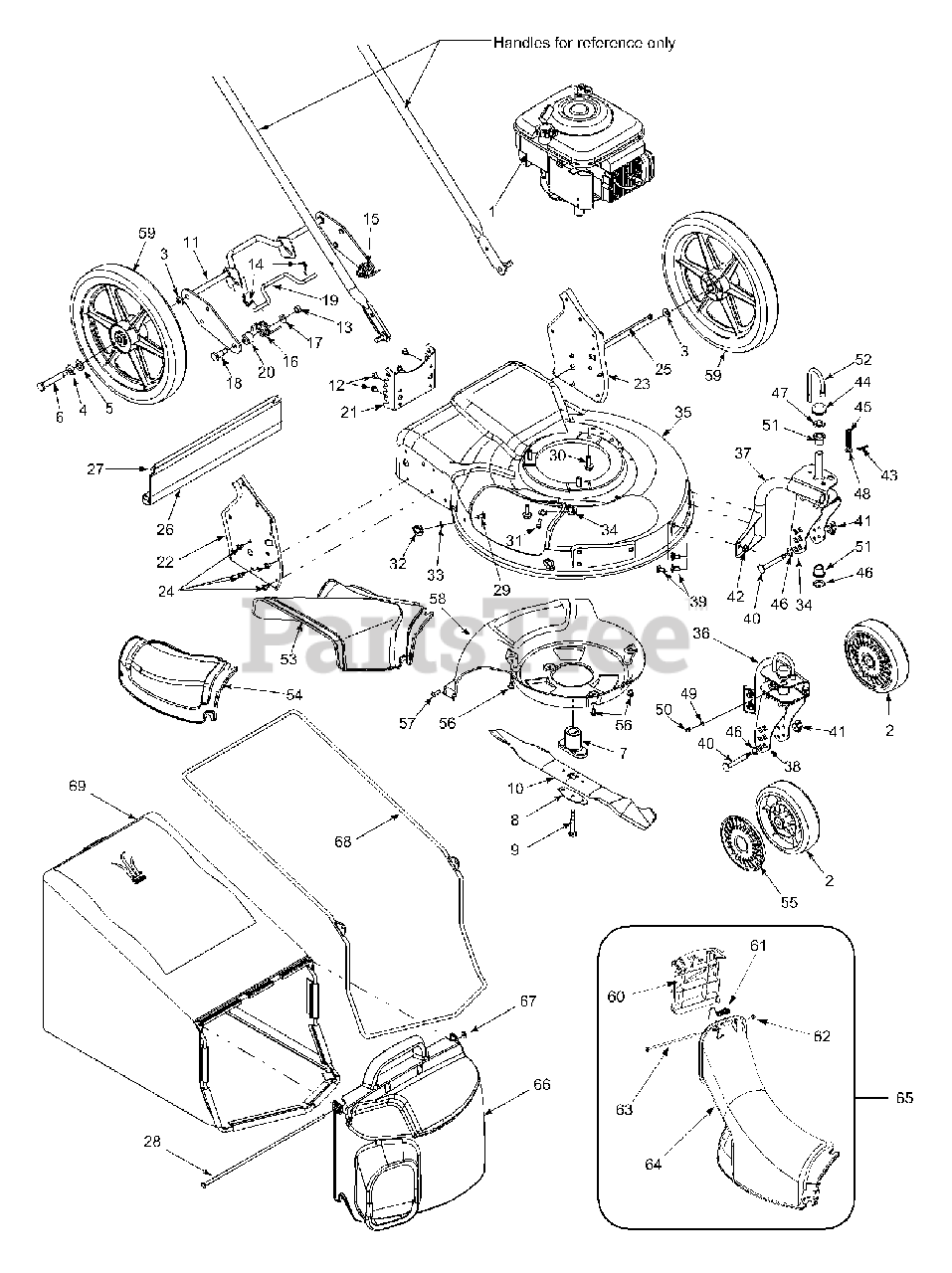

General Assembly Parts Diagram

  • Title

1

Engine

$

$

Not available

MTD 751B28202

Engine Shroud

$

$

Currently unavailable

2

MTD 734-1857

Wheel, Front Caster 7 X 2

$46.99

$

In Stock, Qty 8

0

3

MTD 736-0105

Bell Washer .401 X .870 X .063

$4.49

$

In Stock, Qty 20+

0

4

MTD 736-0182

Spring Washer .50 I.D. x 1.0 x .022

$4.49

$

In Stock, Qty 7

0

5

MTD 736-0272

Flat Washer .510 x 1.0 x .060

$4.99

$

In Stock, Qty 20+

0

6

MTD 738-0481A

Shoulder Screw .500 x 2.62: 3/8 -16
(Superseded to 938-0481A)

$6.99

$

In Stock, Qty 18

0

7

MTD 748-0377C

Blade Adapter
(Superseded to 748-0377E)

$19.99

$

In Stock, only 3 left!

0

8

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

9

MTD 710-1257

Hex Bolt 3/8 - 24 x 2.5 Gr. 8

$7.99

$

In Stock, only 1 left!

0

10

MTD 742-0741

Blade 21", Mulching
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

11

MTD 647-0028

Hi-Wheel Height Adj. Support

$

$

Not available

12

MTD 710-1348

AB Screw 1/4-14 x .50

$6.99

$

In Stock, only 3 left!

0

13

MTD 712-3017

Hex Nut 3/8 -16

$4.49

$

In Stock, Qty 20+

0

14

MTD 732-0845

Torsion Spring
(Superseded to 932-0845)

$4.99

$

Usually ships in 3-6 days

0

15

MTD 732-0843

Torsion Spring, RH

$

$

Not available

16

MTD 732-0844

Torsion Spring, LH

$

$

Not available

17

MTD 736-0105

Bell Washer .401 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

18

MTD 738-0145

Shoulder Screw .500 x .840

$6.99

$

Usually ships in 3-6 days

0

19

MTD 747-0971

Handle, Height Adjustment

$

$

Not available

20

MTD 750-1090

Spacer .500 x 1.0 x .600

$

$

Not available

21

MTD 782-0572

Height Adj. Bracket, RH
(Superseded to 782-0572-0637)

Variations

MTD 782-0572-0637

BRACKET-HEIGHT ADJ - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 682-3054

Handle Bracket Ass'y, RH

Variations

MTD 682-3054-0637

BRACKET ASS'Y-HANDLE - POWDER BLACK (0637)

$

$

Not available

MTD 682-3054-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 682-3054-0662

No Longer Available BRACKET AS - OYSTER GRAY (0662)

$

$

Not available

MTD 682-3054-0689

No Longer Available BRACKET AS - POLO GREEN (0689)

$

$

Not available

$

$

23

MTD 682-3055

Handle Bracket Ass'y, LH

Variations

MTD 682-3055-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

MTD 682-3055-0650

No Longer Available BRACKET AS - RED METALLIC (0650)

$

$

Not available

MTD 682-3055-0689

No Longer Available BRACKET AS - POLO GREEN (0689)

$

$

Not available

$

$

24

MTD 710-1348

AB Screw 1/4-14

$6.99

$

In Stock, only 3 left!

0

25

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

26

MTD 731-1901

Trail Shield
(Superseded to 731-1901A)

$40.99

$

In Stock, only 2 left!

0

27

MTD 732-0842

Trail Shield Wire

$6.49

$

In Stock, Qty 6

0

28

MTD 747-0939

Brass Bag Pivot Rod

$10.99

$

Usually ships in 3-6 days

0

29

MTD 710-0134

Carriage Screw

$4.49

$

In Stock, Qty 20+

0

30

MTD 710-0654A

TT Screw 3/8 -16 x 1.00

$4.49

$

In Stock, Qty 20+

0

31

MTD 710-0703

Carriage Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

32

MTD 712-0397

Wing knob
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

33

MTD 726-0233

Push Nut

$4.49

$

In Stock, Qty 20+

0

34

MTD 682-9026

Caster Bracket Assembly, LH
(Superseded to 682-9026A)

Variations

MTD 682-9026-0638

Caster Bracket, LH - MTD/TROY-BILT RED (0638)

$85.99

$

In Stock, only 3 left!

0

MTD 682-9026-0650

Caster Bracket, LH - RED METALLIC (0650)

$85.99

$

Usually ships in 3-6 days

0

MTD 682-9026-0662

BRACKET ASSY-WHEEL LH - OYSTER GRAY (0662)

$79.99

$

Usually ships in 3-6 days

0

MTD 682-9026-0689

BRACKET ASSY-WHEEL LH - POLO GREEN (0689)

$79.99

$

Usually ships in 3-6 days

0

MTD 682-9026-0691

BRACKET ASSY-WHEEL LH - BLACK JACK (0691)

$85.99

$

Usually ships in 3-6 days

0

MTD 682-9026-0716

Caster Bracket, LH - CUB YELLOW-99 (0716)

$85.99

$

Usually ships in 3-6 days

0

MTD 682-9026-4021

Caster Bracket, LH - CUB YELLOW 2 (4021)

$85.99

$

Usually ships in 3-6 days

0

MTD 682-9026-0637

BRACKET ASSY-WHEEL LH - POWDER BLACK (0637)

$85.99

$

In Stock, only 1 left!

0

MTD 682-9026-0665

BRACKET ASSY-WHEEL LH - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

MTD 682-9026-0667

BRACKET ASSY-WHEEL LH - MIDNIGHT BLUE (0667)

$79.99

$

Usually ships in 3-6 days

0

MTD 682-9026-4015

BRACKET ASSY-WHEEL LH - FIRE RED (4015)

$79.99

$

Usually ships in 3-6 days

0

MTD 682-9026-4028

BRACKET ASSY-WHEEL LH - SEARS YELLOW (4028)

$85.99

$

Usually ships in 3-6 days

0

MTD 682-9026-4033

BRACKET ASSY-WHL L - FLINT MICA (4033)

$79.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

35

MTD 782-0049

Deck 21"

Variations

MTD 782-0049-0650

No Longer Available DECK-TOP D - RED METALLIC (0650)

$

$

Not available

MTD 782-0049-0662

Deck 21" - OYSTER GRAY (0662)

$

$

Not available

MTD 782-0049-0689

Deck 21" - POLO GREEN (0689)

$

$

Not available

$

$

36

MTD 682-9020A

Caster Assembly, RH

Variations

MTD 682-9020A-4028

CASTER ASSEMBLY-RH - SEARS YELLOW (4028)

$89.99

$

In Stock, only 1 left!

0

MTD 682-9020A-0691

CASTER ASSEMBLY-RH - BLACK JACK (0691)

$97.99

$

Usually ships in 3-6 days

0

MTD 682-9020A-0629

CASTER ASM-RH - SILVER FLAKE (0629)

$

$

Not available

MTD 682-9020A-0665

CASTER ASSEMBLY-RH - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-9020A-0716

CASTER ASSEMBLY-RH - CUB YELLOW-99 (0716)

$

$

Not available

MTD 682-9020A-4021

CASTER ASSEMBLY-RH - CUB YELLOW 2 (4021)

$

$

Not available

MTD 682-9020A-0606

CASTER ASSEMBLY-RH - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 682-9020A-0638

CASTER ASSEMBLY-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-9020A-0650

CASTER ASSEMBLY-RH - RED METALLIC (0650)

$

$

Not available

MTD 682-9020A-0662

CASTER ASSEMBLY-RH - OYSTER GRAY (0662)

$

$

Not available

MTD 682-9020A-0667

CASTER ASSEMBLY-RH - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 682-9020A-0689

CASTER ASSEMBLY-RH - POLO GREEN (0689)

$

$

Not available

MTD 682-9020A-4015

CASTER ASSEMBLY-RH - FIRE RED (4015)

$

$

Not available

$97.99

$

Usually ships in 3-6 days

0

37

MTD 682-9021A

Caster Assembly, LH

Variations

MTD 682-9021A-0716

CASTER ASSEMBLY-LH - CUB YELLOW-99 (0716)

$101.99

$

Usually ships in 3-6 days

0

MTD 682-9021A-0691

CASTER ASSEMBLY-LH - BLACK JACK (0691)

$101.99

$

Usually ships in 3-6 days

0

MTD 682-9021A-4021

CASTER ASSEMBLY-LH - CUB YELLOW 2 (4021)

$125.99

$

Usually ships in 3-6 days

0

MTD 682-9021A-4028

CASTER ASSEMBLY-LH - SEARS YELLOW (4028)

$125.99

$

Usually ships in 3-6 days

0

MTD 682-9021A-0606

CASTER ASSEMBLY-LH - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 682-9021A-0638

CASTER ASSEMBLY-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-9021A-0662

CASTER ASSEMBLY-LH - OYSTER GRAY (0662)

$

$

Not available

MTD 682-9021A-0665

CASTER ASSEMBLY-LH - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-9021A-0667

CASTER ASSEMBLY-LH - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 682-9021A-0629

CASTER ASSEMBLY-LH - SILVER FLAKE (0629)

$

$

Not available

MTD 682-9021A-0650

CASTER ASSEMBLY-LH - RED METALLIC (0650)

$

$

Not available

MTD 682-9021A-0689

CASTER ASSEMBLY-LH - POLO GREEN (0689)

$

$

Not available

MTD 682-9021A-4015

CASTER ASSEMBLY-LH - FIRE RED (4015)

$

$

Not available

$101.99

$

Usually ships in 3-6 days

0

38

MTD 682-9024

Caster Bracket Assembly, RH

Variations

MTD 682-9024-0629

BRACKET CASTER - SILVER FLAKE (0629)

$81.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0638

Caster Bracket, RH - MTD/TROY-BILT RED (0638)

$81.99

$

In Stock, only 2 left!

0

MTD 682-9024-0650

BRACKET CASTER - RED METALLIC (0650)

$81.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0662

BRACKET CASTER - OYSTER GRAY (0662)

$81.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0665

BRACKET CASTER - YARDMAN GREEN (0665)

$66.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0691

BRACKET CASTER - BLACK JACK (0691)

$81.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0716

Caster Bracket, RH - CUB YELLOW-99 (0716)

$81.99

$

Usually ships in 3-6 days

0

MTD 682-9024-4021

Caster Bracket, RH - CUB YELLOW 2 (4021)

$81.99

$

In Stock, only 1 left!

0

MTD 682-9024-4028

BRACKET CASTER - SEARS YELLOW (4028)

$76.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0606

BRACKET CASTER - MAJESTIC ORANGE (0606)

$81.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0637

BRACKET CASTER - POWDER BLACK (0637)

$81.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0667

BRACKET CASTER - MIDNIGHT BLUE (0667)

$66.99

$

Usually ships in 3-6 days

0

MTD 682-9024-0689

BRACKET CASTER - POLO GREEN (0689)

$66.99

$

Usually ships in 3-6 days

0

MTD 682-9024-4015

BRACKET CASTER - FIRE RED (4015)

$66.99

$

Usually ships in 3-6 days

0

MTD 682-9024-4033

BRACKET CASTER - FLINT MICA (4033)

$76.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

39

MTD 710-0260

Carriage Bolt 5/16-18 x .62
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

40

MTD 711-1146

Caster Axle .374 x 2.59
(Superseded to 911-1146)

$13.99

$

In Stock, Qty 11

0

41

MTD 712-0397

Wing Knob
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

42

MTD 712-3004A

Flange Nut 5/16-18 Gr.5

$3.99

$

In Stock, Qty 20+

0

43

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

44

MTD 726-0214

Push Cap

$10.99

$

In Stock, only 4 left!

0

45

MTD 732-0306

Compression Spring
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

46

MTD 736-0232

Wave Washer .530 I.D. x .780 O.D.

$4.99

$

In Stock, Qty 12

0

47

MTD 736-0366

Flat Washer, .604 x 1.12 x .125

$4.49

$

In Stock, Qty 20+

0

48

MTD 736-0264

Flat Washer .330 I.D. x .630 x .06

$6.99

$

In Stock, only 1 left!

0

49

MTD 736-0931

Flat.Washer. .203 I.D. x .403 x .040

$4.99

$

In Stock, only 1 left!

0

50

MTD 737-3000

Lube Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

51

MTD 741-0685

Flange Bearing

$4.49

$

In Stock, Qty 20+

0

52

MTD 747-0924

Lock Pin, Front Wheel

$20.99

$

In Stock, only 1 left!

0

53

MTD 731-1832

Discharge Chute

$

$

Not available

54

MTD 731-1833

Mulching Cover
(Superseded to 931-1833A)

$44.99

$

In Stock, only 1 left!

0

55

MTD 731-1886

Hubcap

$11.99

$

Usually ships in 3-6 days

0

56

MTD 710-0653

Hex Screw, TT 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

57

MTD 710-0969

Self-tapping Screw (Hi-Lo)

$4.49

$

In Stock, only 2 left!

0

58

MTD 731-1828

Rear Baffle
(Superseded to 731-08190A)

$37.99

$

In Stock, only 1 left!

0

59

MTD 734-1860

Hi-Wheel 14 X 2
(Superseded to 734-1860A)

$

$

Not available

60

MTD 731-1874

Chute Door
(Superseded to 731-1874A)

$17.99

$

Usually ships in 3-6 days

0

61

MTD 732-0819

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

62

MTD 726-0111

Push Cap

$

$

Not available

63

MTD 747-0965

Pivot Rod

$3.49

$

Usually ships in 3-6 days

0

64

MTD 731-1713B

Discharge Chute
(Superseded to 931-0066)

$115.99

$

Usually ships in 3-6 days

0

65

MTD 631-0066

Chute Assembly
(Superseded to 931-0066)

$115.99

$

Usually ships in 3-6 days

0

66

MTD 631-0071

Top Discharge Grass Bag Cover

$103.99

$

Usually ships in 3-6 days

0

67

MTD 726-0106

Cap Nut

$3.99

$

Usually ships in 3-6 days

0

68

MTD 747-0937

Grass Bag Frame
(Superseded to 747-0937-0637)

Variations

MTD 747-0937-0637

Grass Catcher Bag Frame, Upper - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

$58.99

$

Usually ships in 3-6 days

0

69

MTD 664-0181

Grass Bag, Sail w/ Sprig
(Superseded to 964-0076A)

$98.99

$

Usually ships in 3-6 days

0
