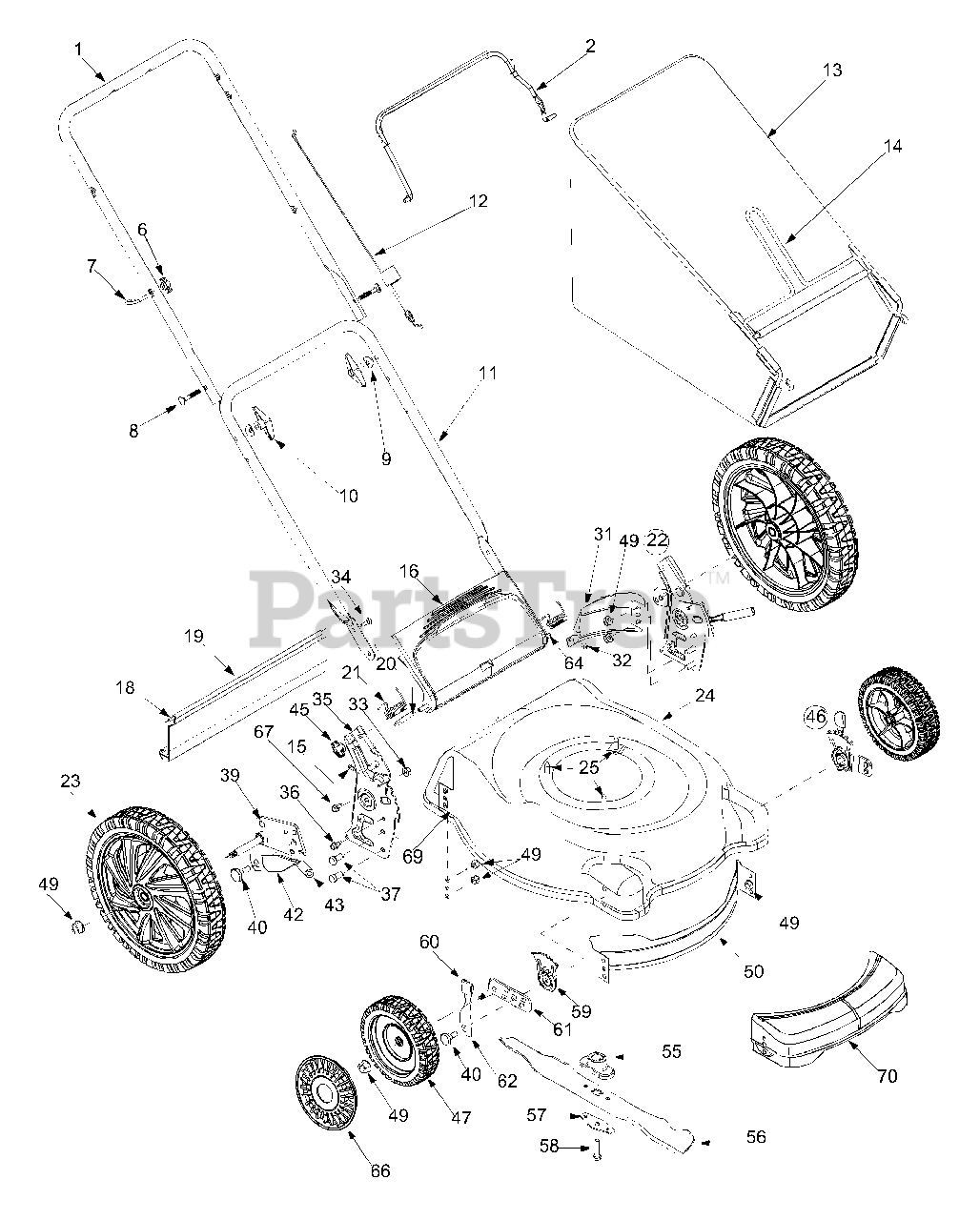

11A-589P701 - Yard-Man Walk-Behind Mower (2004) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

2

MTD 747-1161A

Control Handle

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 1 left!

0

6

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-1174

Carriage Bolt 5/16-18 x 2"

$7.49

$

In Stock, Qty 20+

0

9

MTD 736-0451

Shoulder Washer.320 ID x.930 OD

$4.49

$

In Stock, Qty 11

0

10

MTD 720-0284

Wing Nut

$6.99

$

In Stock, Qty 20+

0

11

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

12

MTD 746-1130

Control Cable 40"
(Superseded to 946-1130)

$17.99

$

In Stock, Qty 7

0

13

MTD 664-04007

Grass Bag
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

14

MTD 747-04080

Grass Catcher Frame
(Superseded to 747-04080A)

Variations

MTD 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

15

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

16

MTD 731-04134

Grass Bag Door
(Superseded to 931-04134)

$

$

Not available

18

MTD 732-0700

Wire Rod
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

19

MTD 731-1236

Trail Shield
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

20

MTD 750-04162

Spacer.375 O.D. x.50 I.D. x 1.02"
(Superseded to 950-04162)

$

$

Not available

21

MTD 732-04090

Torsion Spring - RH
(Superseded to 732-04090A)

$7.99

$

Usually ships in 3-6 days

0

MTD 732-04089

Torsion Spring - LH
(Superseded to 732-04089A)

$7.99

$

Usually ships in 3-6 days

0

22

MTD 687-02056

Handle Bracket Assembly - RH
(Superseded to 987-02056)

$

$

Not available

MTD 687-02057

Handle Bracket Assembly - LH

$

$

Not available

23

MTD 734-04046

Rear Wheel: 12 x 2.125

$72.99

$

Usually ships in 3-6 days

0

24

MTD 787-01103

Deck: 21"

Variations

MTD 787-01103-0638

SERVICE KIT:DECK 2 - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01103-0665

SERVICE KIT:DECK 2 - YARDMAN GREEN (0665)

$

$

Not available

MTD 787-01103-0691

SERVICE KIT:DECK 2 - BLACK JACK (0691)

$

$

Not available

MTD 787-01103-0709

SERVICE KIT:DECK 2 - MASTERCRAFT GREEN (0709)

$

$

Not available

$203.99

$

Usually ships in 3-6 days

0

25

MTD 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

31

MTD 782-5003

Rear Baffle - LH
(Superseded to 782-5003A)

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

32

MTD 710-1017

Tap Screw 1/4-14 x.625.

$8.49

$

In Stock, Qty 9

0

33

MTD 712-3005

Flange Lock Nut 3/8-16

$6.99

$

Usually ships in 3-6 days

0

34

MTD 710-0703

Hex Carriage Screw 1/4-20

$4.49

$

In Stock, Qty 20+

0

35

MTD 687-02033

Handle Bracket Assembly - RH
(Superseded to 987-02033)

$

$

Not available

MTD 687-02031

Handle Bracket Assembly - LH

$

$

Not available

36

MTD 710-1652

TT Screw 1/4-14 x.625

$4.49

$

In Stock, Qty 20+

0

37

MTD 710-0216

Hex Screw 3/8-16 x 0.75

$4.49

$

In Stock, Qty 15

0

39

MTD 687-02039

Pivot Bar Assembly - RH
(Superseded to 987-02335)

$27.99

$

Usually ships in 3-6 days

0

MTD 687-02040

Pivot Bar Assembly - LH
(Superseded to 987-02336)

$

$

Not available

40

MTD 738-0507B

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

42

MTD 732-0866

Rear Spring Lever

$

$

Not available

43

MTD 720-0312

Spring Lever Grip

$4.99

$

In Stock, Qty 5

0

45

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

46

MTD 687-02074

Front Height Adjuster Assembly - RH
(Superseded to 987-02074B)

$40.99

$

In Stock, only 2 left!

0

MTD 687-02075

Front Height Adjuster Assembly - LH
(Superseded to 987-02075B)

$35.99

$

In Stock, only 2 left!

0

47

MTD 734-2004A

Front Wheel: 8 x 2.125
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

49

MTD 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

50

MTD 782-5002A

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002A-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

55

MTD 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, only 1 left!

0

56

MTD 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

57

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

58

MTD 710-1044

Hex Cap Screw 3/8-24 x 1.5

$3.99

$

In Stock, only 1 left!

0

59

MTD 15261A

Height Adjustment Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

60

MTD 720-0426

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

61

MTD 687-02077

Pivot Bar Assembly - RH
(Superseded to 987-02077A)

$17.99

$

In Stock, Qty 6

0

MTD 687-02076

Pivot Bar Assembly - LH
(Superseded to 987-02076A)

$

$

Not available

62

MTD 732-0404

Spring Lever
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

64

MTD 747-0996

Chute Door Pivot Rod

$32.99

$

Usually ships in 3-6 days

0

66

MTD 731-1426A

Hubcap
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

67

MTD 710-0599

Tap Screw 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0

68

MTD 751B699868

Engine Shroud

Note: (not shown)

$

$

Currently unavailable

69

MTD 782-5004A

Rear Baffle - RH
(Superseded to 782-5004B)

Variations

MTD 782-5004A-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

70

MTD 731-1506

Front Cover
(Superseded to 731-1506A)

$

$

Not available
