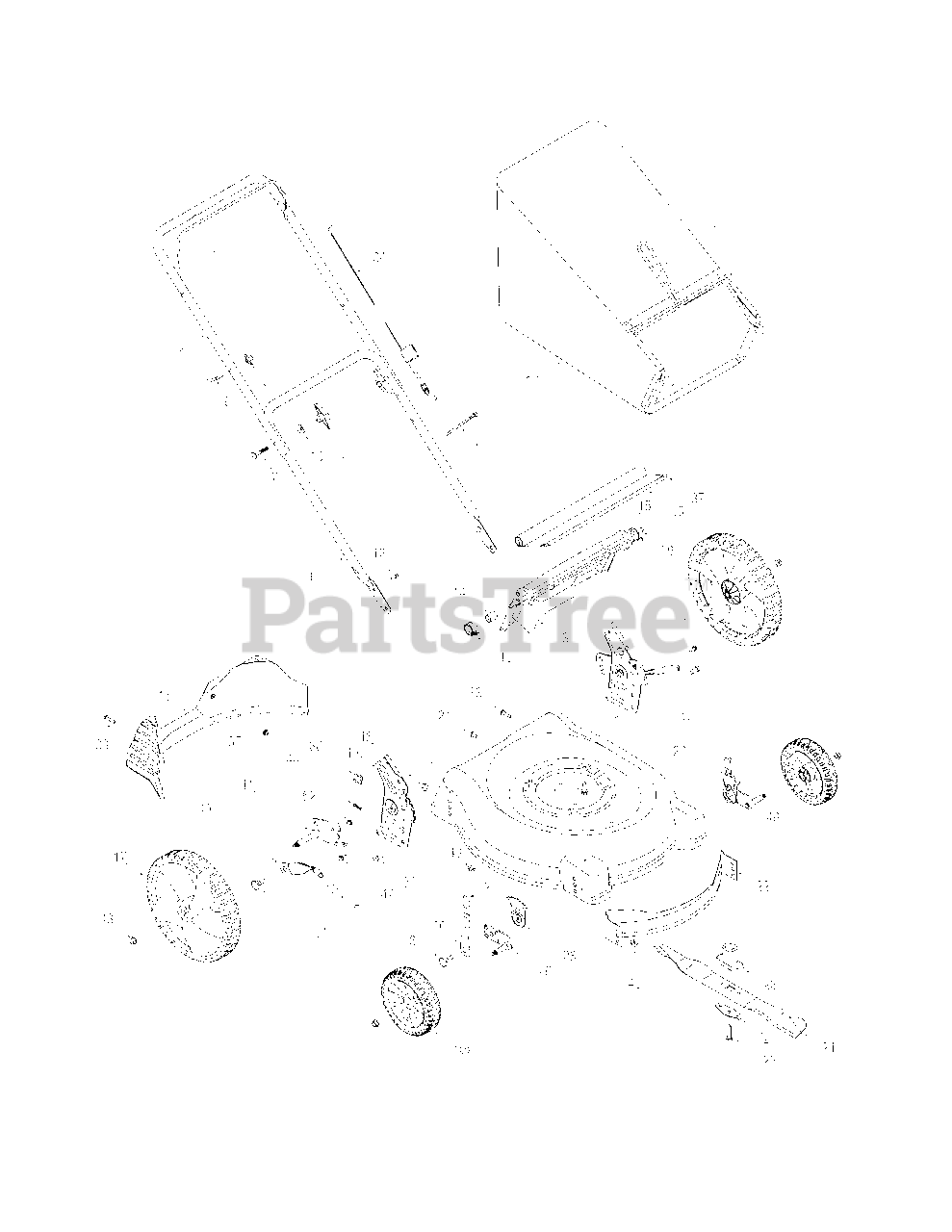

11A-588Q795 - MTD Pro Walk-Behind Mower (2005) General Assembly Parts Diagram

Pro Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 747-1161A-0637

Blade Control Handle

$13.99

$

In Stock, only 1 left!

0

2

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

3

MTD 747-04080A

Grass Catcher Frame

Variations

MTD 747-04080A-0637

Grass Bag Frame, 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

4

MTD 749-0928A-0637

Lower Handle

$33.99

$

In Stock, only 2 left!

0

5

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-1174

Carriage Bolt ,5/16-18 x 2

$7.49

$

In Stock, Qty 20+

0

8

MTD 964-04007A

Grass Bag Assembly

$130.99

$

In Stock, Qty 15

0

9

MTD 920-0284

Hand Knob
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

10

MTD 936-0451

Saddle Washer
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

11

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-0703

Carriage Bolt ,1/4-20

$4.49

$

In Stock, Qty 15

0

13

MTD 753-06366

Rear Discharge Door

$46.99

$

Usually ships in 3-6 days

0

14

MTD 950-04162

Spacer

$

$

Not available

15

MTD 732-04089A

Torsion Spring - LH

$7.99

$

Usually ships in 3-6 days

0

16

MTD 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

17

MTD 734-04093

Rear Wheel, 12" x 2.125"

$67.99

$

In Stock, only 2 left!

0

18

MTD 731-04150C

Rear Baffle

$42.99

$

In Stock, only 2 left!

0

19

MTD 731-0981C

Hubcap (Not Shown)

$10.99

$

In Stock, only 2 left!

0

20

MTD 753-05198-0665

Deck - 21"

$

$

Not available

21

MTD 710-0286

AB Screw, 10-16 x .500"

$4.49

$

Usually ships in 3-6 days

0

22

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

23

MTD 748-04082

Blade Adapter

$37.99

$

Usually ships in 3-6 days

0

24

MTD 942-0741A

Mulching Blade

$29.99

$

In Stock, Qty 20+

0

25

MTD 710-1257

Hex Screw , 3/8-24 x 2.5

$7.99

$

In Stock, only 1 left!

0

26

MTD 987-02077A

Pivot Arm Assembly -RH

$17.99

$

In Stock, Qty 6

0

26

MTD 987-02076A

Pivot Arm Assembly - LH

$

$

Not available

27

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

28

MTD 787-01290A

Front Adjustment Plate

$12.99

$

In Stock, only 2 left!

0

29

MTD 720-0426

Adjustment Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

30

MTD 94832

Spring Lever Assembly

$10.99

$

In Stock, only 3 left!

0

31

MTD 938-0507B

Shoulder Screw
(Superseded to 738-0507B)

$4.49

$

In Stock, only 4 left!

0

32

MTD 734-2005C

Front Wheel, 8" x 2.125"
(Superseded to 734-04226A)

$54.99

$

In Stock, Qty 18

0

33

MTD 710-04371

Screw, 1/4-15 x 1.250

$6.99

$

Usually ships in 3-6 days

0

34

MTD 946-1130

Control Cable - 40"

$17.99

$

In Stock, Qty 7

0

35

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

36

MTD 731-04998

Trailshield

$31.99

$

In Stock, Qty 7

0

37

MTD 732-0700

Trailshield Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

38

MTD 712-0397A

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

39

MTD 747-0996

Rear Door Pivot Rod

$32.99

$

Usually ships in 3-6 days

0

40

MTD 732-0866

Spring Lever

$

$

Not available

41

MTD 987-02335

Pivot Arm Assembly - RH

$27.99

$

Usually ships in 3-6 days

0

41

MTD 987-02336

Pivot Arm Assembly - LH

$

$

Not available

42

MTD 710-1652

AB Screw

$4.49

$

In Stock, Qty 20+

0

43

MTD 912-0431

Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

44

MTD 914-0104

Hairpin Clip
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

45

MTD 710-0654A

TT Sems Screw, 3/8-16 x 1.0

$4.49

$

In Stock, only 4 left!

0

46

MTD 987-02075A

Ht. Adj. Assy. Front - LH
(Superseded to 987-02075B)

$35.99

$

In Stock, only 2 left!

0

46

MTD 987-02074A

Ht. Adj. Assy. Front - RH
(Superseded to 987-02074B)

$40.99

$

In Stock, only 2 left!

0

47

MTD 987-02057

Rear Handle Bracket Assy. -

$

$

Not available

47

MTD 987-02056

Rear Handle Bracket Assy. -

$

$

Not available

48

MTD 912-3005

Flange Lock Nut, 3/8-16
(Superseded to 712-3005)

$6.99

$

Usually ships in 3-6 days

0

49

MTD 987-02033

Handle Bracket Assembly - RH

$

$

Not available

49

MTD 687-02031

Handle Bracket Assembly - LH

Note: NLA

$

$

Not available

50

MTD 710-0216

Hex Screw, 3/8-16 x 0.75

$4.49

$

In Stock, Qty 15

0

51

MTD 720-0312

Spring Lever Grip

$4.99

$

In Stock, Qty 5

0

52

MTD 710-0599

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0
