11A-584E765 - Bolens Walk-Behind Mower (2005) General Assembly Parts Diagram

Walk-Behind Mower

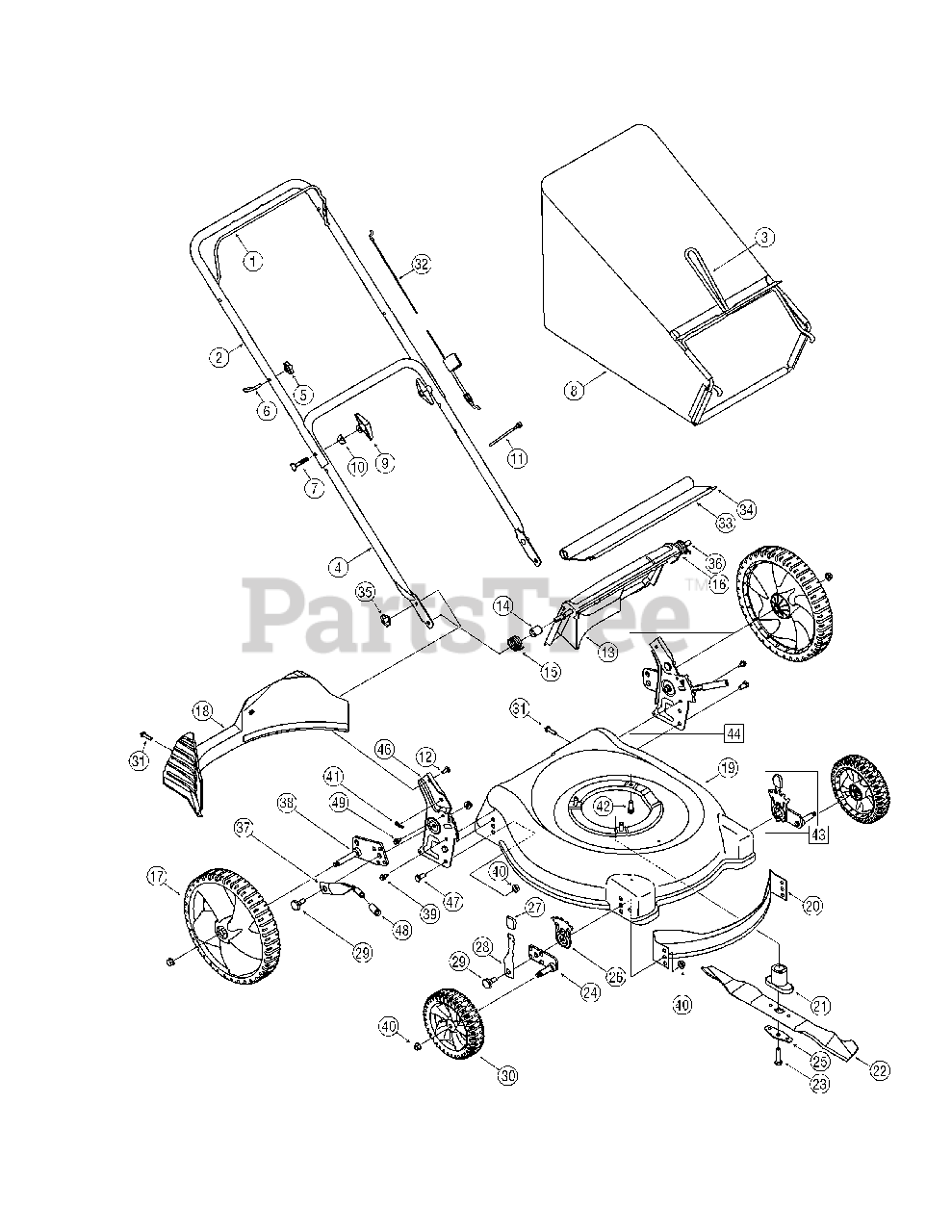

General Assembly Parts Diagram

  • Title

1

MTD 747-1161A

Blade Control Handle

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

2

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

3

MTD 747-04080

Grass Catcher Frame
(Superseded to 747-04080A)

Variations

MTD 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

4

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

5

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-1174

Carriage Bolt ,5/16-18 x 2

$7.49

$

In Stock, Qty 20+

0

8

MTD 664-04007

Grass Bag Assembly
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

9

MTD 720-0284

Hand Knob

$6.99

$

In Stock, Qty 20+

0

10

MTD 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 11

0

11

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-0703

Carriage Bolt ,1/4-20

$4.49

$

In Stock, Qty 20+

0

13

MTD 731-04134A

Rear Discharge Door
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

14

MTD 750-04162

Spacer
(Superseded to 950-04162)

$

$

Not available

15

MTD 732-04089A

Torsion Spring - LH

$7.99

$

Usually ships in 3-6 days

0

16

MTD 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

17

MTD 734-04082

Rear Wheel, 12 x 1.8

$45.99

$

In Stock, only 2 left!

0

18

MTD 731-04150

Rear Baffle
(Superseded to 731-04150C)

$42.99

$

In Stock, only 2 left!

0

19

MTD 787-01276

Deck - 21"

Variations

MTD 787-01276-0637

DECK:21" PUSH - POWDER BLACK (0637)

$227.99

$

Usually ships in 3-6 days

0

MTD 787-01276-0709

DECK:21" PUSH - MASTERCRAFT GREEN (0709)

$227.99

$

Usually ships in 3-6 days

0

MTD 787-01276-4043

DECK:21" PUSH - CRAFTSMAN METALLIC GRAY (4043)

$227.99

$

Usually ships in 3-6 days

0

MTD 787-01276-0665

DECK:21" PUSH - YARDMAN GREEN (0665)

$227.99

$

Usually ships in 3-6 days

0

MTD 787-01276-0691

DECK:21" PUSH - BLACK JACK (0691)

$227.99

$

Usually ships in 3-6 days

0

MTD 787-01276-0729

DECK:21" PUSH - STORM GRAY (0729)

$212.99

$

Usually ships in 3-6 days

0

MTD 787-01276-0638

DECK:21" PUSH - MTD/TROY-BILT RED (0638)

$

$

Not available

$184.99

$

Usually ships in 3-6 days

0

20

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

21

MTD 748-0377C

Blade Adapter
(Superseded to 748-0377E)

$19.99

$

In Stock, only 1 left!

0

22

MTD 742-0741

Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

23

MTD 710-1257

Hex Screw, 3/8-24 x 2.5

$7.99

$

In Stock, only 1 left!

0

24

MTD 687-02076

Pivot Arm Assembly -RH
(Superseded to 987-02076A)

$

$

Not available

MTD 687-02077

Pivot Arm Assembly - LH
(Superseded to 987-02077A)

$17.99

$

In Stock, Qty 6

0

25

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

26

MTD 15261A

Front Adjustment Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

27

MTD 720-0426

Adjustment Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

28

MTD 732-0404

Spring Lever Assembly
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

29

MTD 738-0507B

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

30

MTD 734-1988

Front Wheel, 7 x 1.8

$20.99

$

In Stock, only 4 left!

0

31

MTD 710-04371

Screw, 1/4-15 x 1.250

$6.99

$

Usually ships in 3-6 days

0

32

MTD 746-0957

Control Cable - 37.25"
(Superseded to 946-0957)

$17.99

$

In Stock, Qty 20+

0

33

MTD 731-04998

Trailshield

$31.99

$

In Stock, Qty 7

0

34

MTD 732-0700

Trailshield Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

35

MTD 712-0397

Wing Nut, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

36

MTD 747-0996

Rear Door Pivot Rod

$32.99

$

Usually ships in 3-6 days

0

37

MTD 732-0866

Spring Lever

$

$

Not available

38

MTD 687-02039

Pivot Arm Assembly - RH
(Superseded to 987-02335)

$27.99

$

Usually ships in 3-6 days

0

MTD 687-02040

Pivot Arm Assembly - LH
(Superseded to 987-02336)

$

$

Not available

39

MTD 710-1652

AB Screw

$4.49

$

In Stock, Qty 20+

0

40

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

41

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

42

MTD 710-0654A

TT Sems Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

43

MTD 687-02099

Ht. Adj. Assy. Front - LH
(Superseded to 987-02099C)

$38.99

$

Usually ships in 3-6 days

0

MTD 687-02100

Ht. Adj. Assy. Front - RH
(Superseded to 987-02100C)

$38.99

$

Usually ships in 3-6 days

0

44

MTD 687-02057

Rear Handle Bracket Assy. - LH

$

$

Not available

MTD 687-02056

Rear Handle Bracket Assy. - RH
(Superseded to 987-02056)

$

$

Not available

45

MTD 712-3005

Flange Lock Nut, 3/8-16

$6.99

$

Usually ships in 3-6 days

0

46

MTD 687-02033

Handle Bracket Assembly - RH
(Superseded to 987-02033)

$

$

Not available

MTD 687-02031

Handle Bracket Assembly - LH

$

$

Not available

47

MTD 710-0216

Hex Screw, 3/8-16 x 0.75

$4.49

$

In Stock, Qty 14

0

48

MTD 720-0312

Spring Lever Grip

$4.99

$

In Stock, Qty 5

0

49

MTD 710-0599

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0
