11A-573C352 - Yard Machines Walk-Behind Mower (1998) (Walmart) General Assembly Parts Diagram

Walk-Behind Mower

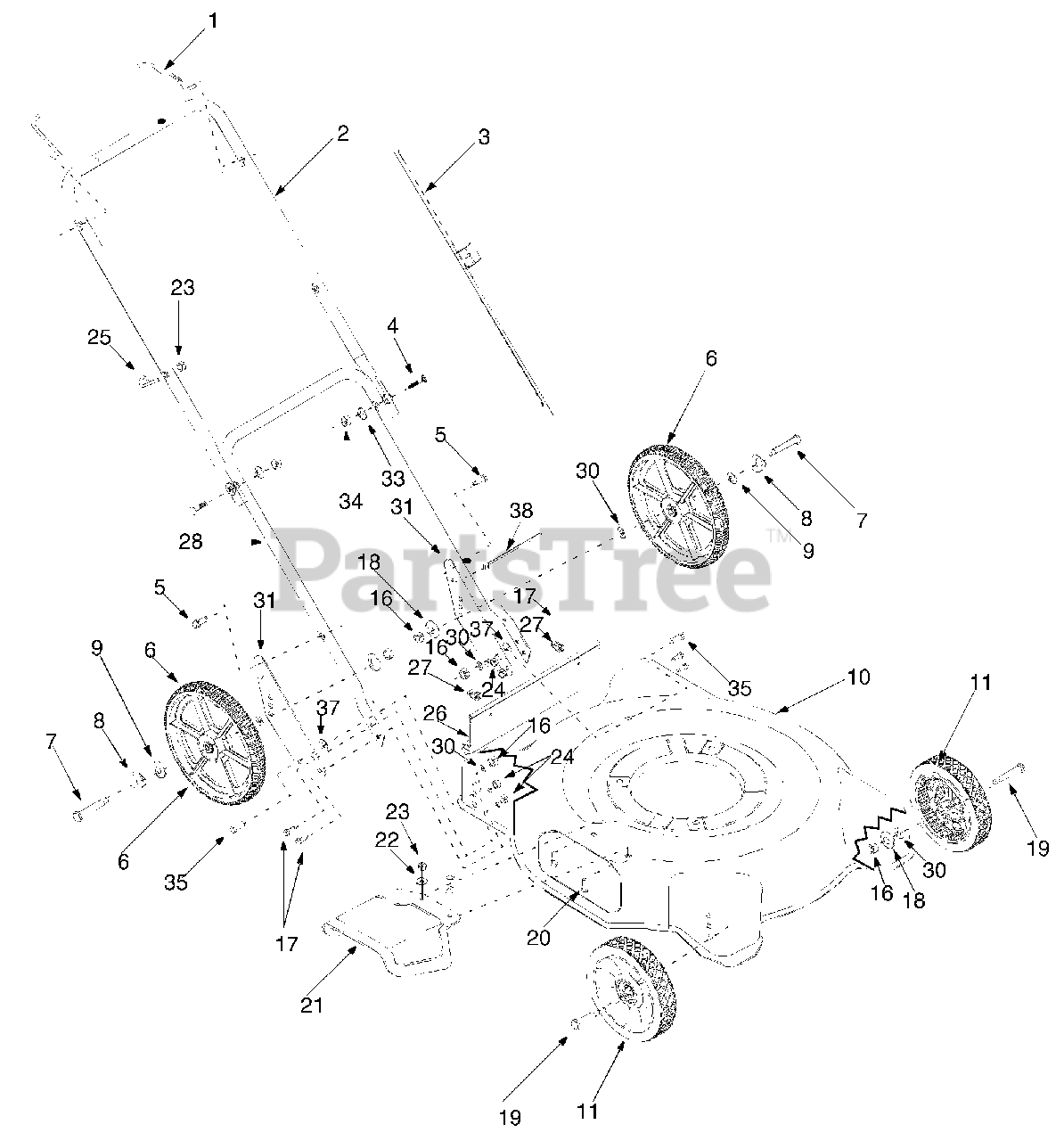

General Assembly Parts Diagram

  • Title

1

MTD 747-0976

Control Handle Assembly
(Superseded to 747-0976B)

Variations

MTD 747-0976-0637

Blade Control Bail - POWDER BLACK (0637)

$25.99

$

In Stock, only 1 left!

0

$25.99

$

In Stock, only 1 left!

0

2

MTD 749-1076

Upper Handle
(Superseded to 749-1076-0637)

Variations

MTD 749-1076-0637

HANDLE UPPER - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 746-0946

Control Cable: 48.25"
(Superseded to 946-0946)

$19.99

$

In Stock, only 1 left!

0

4

MTD 710-0262

Carriage Screw 5/16-18 x 1.5"

$3.99

$

In Stock, Qty 11

0

5

MTD 710-0726

Self-Tapping Screw 5/16-12

$4.49

$

In Stock, Qty 20+

0

6

MTD 734-1864

Rear Wheel 14" x 1.8 Bar
(Superseded to 734-04030)

Note: (Code N)

$76.99

$

In Stock, only 1 left!

0

MTD 734-1976

Rear Wheel 14" x 1.8

$

$

Not available

7

MTD 738-0481

Rear Axle Bolt
(Superseded to 938-0481A)

$6.99

$

In Stock, Qty 18

0

8

MTD 736-0182

Spring Washer

$4.49

$

In Stock, Qty 7

0

9

MTD 736-0456

Bell Washer
(Superseded to 936-0456)

$4.99

$

In Stock, Qty 9

0

10

MTD 782-0048

Deck

Note: (Code N)

Variations

MTD 782-0048-0483

DECK ASSEMBLY-20IN - CHARCOAL GRAY (0483)

$

$

Not available

MTD 782-0048-0638

DECK ASSEMBLY-20IN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-0048-0606

20" Deck w/sprig logo - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 782-0048-0691

DECK ASSEMBLY-20IN - BLACK JACK (0691)

$

$

Not available

$

$

11

MTD 734-1779

Front Wheel 7" x 1.5
(Superseded to 734-1779A)

$20.99

$

In Stock, only 3 left!

0

?12

MTD 748-0376B

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, only 1 left!

0

?13

MTD 710-1044

Hex Bolt 3/8-24 x 1.5 Gr.8

$3.99

$

In Stock, only 2 left!

0

?14

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

?15

MTD 742-0640

Cutting Blade
(Superseded to 942-0640)

$28.99

$

Usually ships in 3-6 days

0

16

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 12

0

17

MTD 710-3008

Hex Bolt 5/16-18 x 0.75"

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0331

Bell Washer .39 I.D. x 1.13 O.D. x .062

$3.99

$

In Stock, Qty 20+

0

19

MTD 738-0533

Front Axle Bolt

$7.99

$

Usually ships in 3-6 days

0

20

MTD 710-0932

Carr. Screw 1/4-20 x 1.0
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

21

MTD 731-0064

Side-Discharge Chute
(Superseded to 731-0064A)

Note: (Code N)

$22.99

$

In Stock, only 1 left!

0

22

MTD 736-0173

Flat Washer .28 I.D. x .74 O.D. x .063

$4.49

$

In Stock, Qty 20+

0

23

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

24

MTD 712-3004A

Hex Flange Lock Nut 5/16-18 Gr.5

$3.99

$

In Stock, Qty 20+

0

25

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

26

MTD 731-0872A

Rear Trailing Shield
(Superseded to 731-0872B)

Note: (Code N)

$39.99

$

In Stock, Qty 6

0

27

MTD 17098

Hinge Clip
(Superseded to 17098P)

Note: (Code N)

$

$

Not available

28

MTD 749-1077

Lower Handle

Variations

MTD 749-1077-0637

Lower Handle - POWDER BLACK (0637)

$

$

Not available

$

$

30

MTD 736-0105

Bell Washer .401 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

31

MTD 782-3060

Handle Bracket

Note: (Code N)

Variations

MTD 782-3060-0637

No Longer Available BRACKET HA - POWDER BLACK (0637)

$

$

Not available

MTD 782-3060-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

33

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

34

MTD 712-0267

Hex Nut 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

35

MTD 710-0216

Hex Screw 3/8-16 x .75" Gr.5

$4.49

$

In Stock, Qty 15

0

37

MTD 736-0258

Flat Washer .385 x 1.0 x .135

$4.49

$

In Stock, only 2 left!

0

38

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0
