11A-54M9006 - MTD Walk-Behind Mower (2009) General Assembly Parts Diagram

Walk-Behind Mower

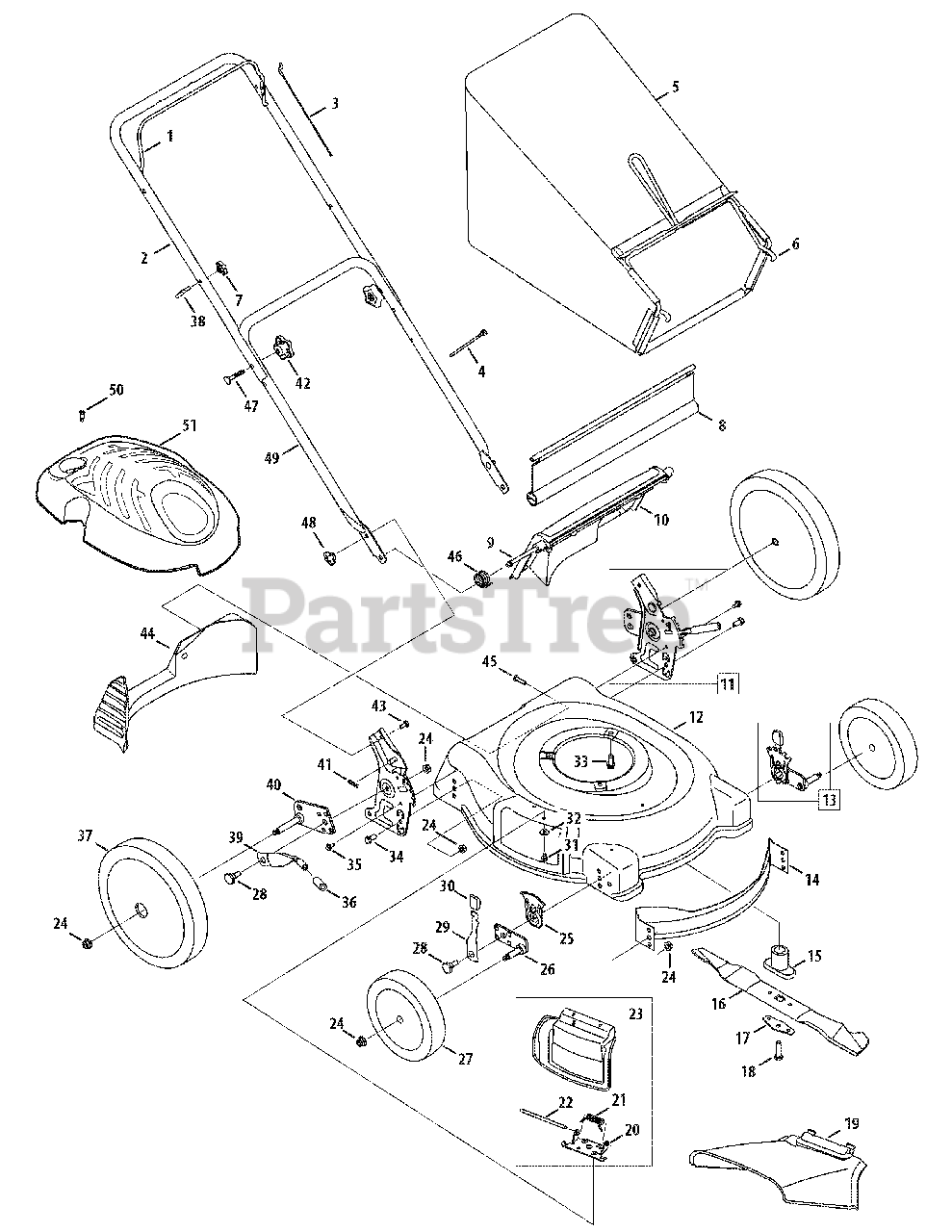

General Assembly Parts Diagram

  • Title

1

MTD 747-1161A-0637

Blade Control

$13.99

$

In Stock, only 4 left!

0

2

MTD 749-1092A-0637

Upper Handle

$48.99

$

In Stock, only 1 left!

0

3

MTD 946-04486

Control Cable

$25.99

$

In Stock, only 1 left!

0

4

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

5

MTD 964-04007A

Grass Bag

$130.99

$

In Stock, Qty 15

0

6

MTD 747-04080A

Grass Bag Frame

Variations

MTD 747-04080A-0637

Grass Bag Frame, 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

7

MTD 720-0279

Handle Knob

$4.49

$

Usually ships in 3-6 days

0

8

MTD 731-05642A

Trail shield

$28.99

$

In Stock, Qty 9

0

9

MTD 747-04588

Pivot Rod

$17.99

$

Usually ships in 3-6 days

0

10

MTD 731-06847

Rear Discharge Door

$28.99

$

Usually ships in 3-6 days

0

11

MTD 987-02280A

Rear Handle Bracket Assy. - LH

$53.99

$

Usually ships in 3-6 days

0

11

MTD 987-02279A

Rear Handle Bracket Assy. - RH

$53.99

$

Usually ships in 3-6 days

0

12

MTD 787-01279-0638

Deck 21-inch

$

$

Not available

13

MTD 987-02075B

Front Hgt. Adj. Assy. - LH

$35.99

$

In Stock, only 2 left!

0

13

MTD 987-02074B

Front Hgt. Adj. Assy. - RH

$40.99

$

In Stock, only 2 left!

0

14

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

15

MTD 748-0377C

Blade Adapter w/Star
(Superseded to 748-0377E)

$19.99

$

In Stock, only 3 left!

0

16

MTD 942-0741

21-inch Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

17

MTD 736-0524B

Bell Blade Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

18

MTD 710-1257

Hex Screw, 3/8-24 x 2.5

$7.99

$

In Stock, only 2 left!

0

19

MTD 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0

20

MTD 17032A

Deflector Chute Adaptor

$10.99

$

In Stock, only 2 left!

0

21

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

22

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

23

MTD 987-02055

Mulch Plug Assembly

$27.99

$

In Stock, Qty 8

0

24

MTD 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

25

MTD 787-01290A

Height Adjustment Plate

$12.99

$

In Stock, only 2 left!

0

26

MTD 987-02337

Pivot Arm Assy. - RH

$17.99

$

In Stock, only 1 left!

0

26

MTD 987-02338

Pivot Arm Assy. - LH

$17.99

$

Usually ships in 3-6 days

0

27

MTD 734-1987

Front Wheel

$23.99

$

In Stock, Qty 5

0

28

MTD 738-04266

Shoulder Scr., .5D x .385

$6.49

$

Usually ships in 3-6 days

0

29

MTD 94832

Front Spring Lever

$10.99

$

In Stock, only 3 left!

0

30

MTD 720-0426

Height Adjust Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

31

MTD 710-0599

TT Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

33

MTD 710-0654A

TT Screw, 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

34

MTD 710-0216

Hex Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

35

MTD 710-1652

TT Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

36

MTD 720-0312

Foam Grip

$4.99

$

In Stock, Qty 5

0

37

MTD 734-04082

Rear Wheel

$45.99

$

In Stock, only 2 left!

0

38

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, only 3 left!

0

39

MTD 732-0866

Rear Hi-Wheel Spring Lever

$

$

Not available

40

MTD 987-02335

Rear Pivot Arm Assy - RH

$27.99

$

Usually ships in 3-6 days

0

40

MTD 987-02336

Rear Pivot Arm Assy - LH

$

$

Not available

41

MTD 914-0104

Hairpin Clip
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

42

MTD 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

43

MTD 710-0703

Carriage Bolt ,1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

44

MTD 731-04150C

Rear Baffle

$42.99

$

In Stock, only 2 left!

0

45

MTD 710-1241

Screw HL, 1/4-15 x 1.00

$6.99

$

In Stock, Qty 19

0

46

MTD 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

47

MTD 710-1174

Carriage Bolt, 5/16-18 x 2

$7.49

$

In Stock, Qty 20+

0

48

MTD 912-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

49

MTD 749-0928A-0637

Lower Handle

$33.99

$

In Stock, only 3 left!

0

50

MTD 710-04744

Screw, HL, #12-16 x 1.00

$5.49

$

In Stock, Qty 11

0

51

MTD 731-06265

Engine Shroud
(Superseded to 731-06265A)

$33.99

$

Usually ships in 3-6 days

0
