11A-549S729 - Yard Machines Walk-Behind Mower (2001) (Home Depot) General Assembly Parts Diagram

Walk-Behind Mower

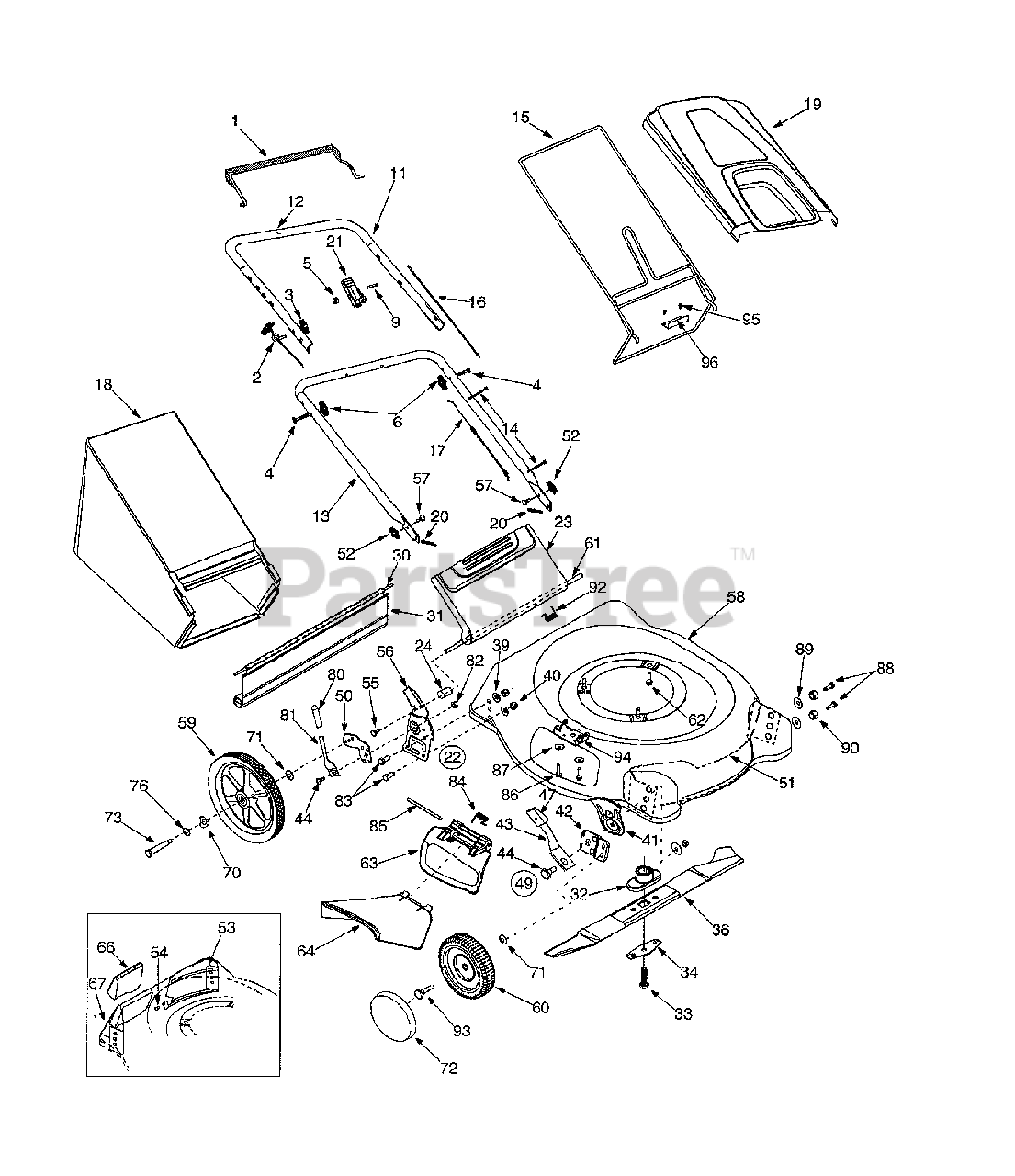

General Assembly Parts Diagram

  • Title

1

MTD 747-0824

Control Handle Assembly
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

1

MTD 647-0004

Deluxe Control Handle
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

3

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2"

$7.49

$

In Stock, Qty 20+

0

5

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

6

MTD 720-0314

Hand Knob

$6.49

$

In Stock, only 1 left!

0

9

MTD 710-1270

Screw 1/4-20 x 1.31

$4.49

$

Usually ships in 3-6 days

0

11

MTD 749-0438C

Upper Handle
(Superseded to 749-0438D-0637)

Variations

MTD 749-0438C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 720-0295

Foam Grip

Note: If equipped

$33.99

$

Usually ships in 3-6 days

0

13

MTD 749-0907A

Lower Handle
(Superseded to 749-0907B)

Variations

MTD 749-0907A-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

14

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

MTD 747-0995A

Catcher Frame
(Superseded to 747-0995A-0637)

Variations

MTD 747-0995A-0637

Grass Catcher Bag Frame, Black - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

$84.99

$

Usually ships in 3-6 days

0

16

MTD 746-0550

Control Cable 39"
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

16

MTD 746-0737

Control Cable 51"
(Superseded to 946-0737)

$28.99

$

In Stock, only 4 left!

0

17

MTD 746-0841

Throttle Cable 60"
(Superseded to 946-0674A)

Note: If equipped

$18.99

$

In Stock, only 1 left!

0

17

MTD 746-0847

Throttle Cable 42"
(Superseded to 946-1115)

Note: If equipped

$28.99

$

In Stock, only 1 left!

0

18

MTD 664-0084

Grass Bag w/o logo
(Superseded to 964-0084)

$193.99

$

Usually ships in 3-6 days

0

18

MTD 664-0085

Grass Bag w/ logo, Yellow
(Superseded to 964-0084)

$193.99

$

Usually ships in 3-6 days

0

18

MTD 664-0086

Grass Bag w/ logo, Red
(Superseded to 964-0084)

$193.99

$

Usually ships in 3-6 days

0

19

MTD 731-0066

Hard Top w/ logo

$

$

Not available

19

MTD 731-0068

Hard Top w/o logo

$

$

Not available

20

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

21

MTD 746-0883

Throttle Housing w/o Lever

$16.99

$

In Stock, only 3 left!

0

22

MTD 682-3058

Handle Bracket Assembly - RH
(Superseded to 753-05922)

$114.99

$

Usually ships in 3-6 days

0

22

MTD 682-3059

Handle Brkt Ass’y - LH (Not Shown)
(Superseded to 753-05922)

$114.99

$

Usually ships in 3-6 days

0

23

MTD 782-7599A

Grass Bag Door
(Superseded to 782-7599B-0637)

Variations

MTD 782-7599A-0637

DOOR-GRASSBAG 21" - POWDER BLACK (0637)

$

$

Not available

$

$

24

MTD 750-0434

Spacer .375 OD x .50 ID x 1.02"

$6.99

$

Usually ships in 3-6 days

0

30

MTD 732-0700

Wire Rod
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

31

MTD 731-1236

Rear Flap
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

32

MTD 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

$16.99

$

In Stock, only 1 left!

0

33

MTD 710-1044

Hex Bolt 3/8-24 x 1.5"

$3.99

$

In Stock, Qty 8

0

34

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

36

MTD 742-0741

Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

39

MTD 736-0356

Bell Washer .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

40

MTD 712-0130

Hex Lock Nut 3/8-16

$3.99

$

In Stock, Qty 11

0

41

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

42

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

43

MTD 732-0404

Spring Lever: Front Wheel
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

44

MTD 738-0507B

Shoulder Bolt .5" Dia. x .357"

$4.49

$

In Stock, Qty 20+

0

47

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

49

MTD 14578

Height Adj. Assembly Comp - RH
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

49

MTD 14579

Height Adj. Assembly Comp - LH
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

50

MTD 17488A

Pivot Bar - RH

$15.99

$

In Stock, only 3 left!

0

50

MTD 17489A

Pivot Bar - LH

$15.99

$

In Stock, only 1 left!

0

51

MTD 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

52

MTD 712-0397

Wing Knob
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

53

MTD 782-5003

Rear Baffle
(Superseded to 782-5003A)

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

54

MTD 710-1017

Torx Mach. AB-Tap

$8.49

$

In Stock, Qty 9

0

55

MTD 710-0896

Hex Washer Screw 1/4-14

$4.49

$

In Stock, Qty 20+

0

56

MTD 682-3058

Handle Bracket Assembly - RH
(Superseded to 753-05922)

$114.99

$

Usually ships in 3-6 days

0

56

MTD 682-3059

Handle Bracket Assembly - LH
(Superseded to 753-05922)

$114.99

$

Usually ships in 3-6 days

0

57

MTD 710-0703

Carriage Bolt, 1/4-20

$4.49

$

In Stock, Qty 20+

0

58

MTD 782-0047

Deck 21"

Variations

MTD 782-0047-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 782-0047-0662

Deck - OYSTER GRAY (0662)

$

$

Not available

MTD 782-0047-0665

Deck - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-0047-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

59

MTD 734-1860

Rear Wheel Ass’y 14 X 2
(Superseded to 734-1860A)

$

$

Not available

59

MTD 734-1864

Rear Wheel Ass’y. 14 X1.8
(Superseded to 734-04030)

$76.99

$

In Stock, only 1 left!

0

60

MTD 734-1818

Front Wheel Ass’y. 8 X 2
(Superseded to 734-1978)

$48.99

$

Usually ships in 3-6 days

0

60

MTD 734-1781

Front Wheel Ass’y 8 x 1.75

$32.99

$

In Stock, Qty 7

0

60

MTD 734-1841

Front Wheel Ass’y 8 X1.7
(Superseded to 934-1841)

$

$

Not available

60

MTD 734-1987

Front Wheel Assembly 8 X 1.8

$23.99

$

In Stock, Qty 5

0

61

MTD 747-0996

Chute Door Pivot Rod

$32.99

$

Usually ships in 3-6 days

0

62

MTD 710-0654A

Sems Screw TT 3/8-16 X 1

$4.49

$

In Stock, Qty 20+

0

63

MTD 682-7000

Mulching Plug

$

$

Not available

64

MTD 731-1409

Chute Deflector
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

66

MTD 782-5007A

Rear Mulch Plug
(Superseded to 782-5007C)

$52.99

$

In Stock, only 1 left!

0

67

MTD 782-5004

Rear Mulch Baffle
(Superseded to 782-5004B)

Variations

MTD 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

MTD 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

70

MTD 736-0182

Wave Washer

$4.49

$

In Stock, Qty 7

0

71

MTD 736-0105

Spring Washer

$4.49

$

In Stock, Qty 20+

0

72

MTD 731-1426

Hub Cap
(Superseded to 731-1426B)

Note: If equipped

$8.99

$

Usually ships in 3-6 days

0

73

MTD 738-0481A

Rear Axle Bolt
(Superseded to 938-0481A)

$6.99

$

In Stock, Qty 18

0

76

MTD 736-0456

Flat Washer
(Superseded to 936-0456)

$4.99

$

In Stock, Qty 9

0

80

MTD 720-0312

Foam Grip

$4.99

$

In Stock, Qty 5

0

81

MTD 732-0866

Height Adj. Lever

$

$

Not available

82

MTD 712-3005

Hex Flange Lock Nut 3/8-16

$6.99

$

Usually ships in 3-6 days

0

83

MTD 710-0514

Hex Cap Screw 3/8-16 X 1.0

$4.49

$

In Stock, Qty 20+

0

84

MTD 732-0731

Torsion Spring
(Superseded to 932-0731)

$10.99

$

Usually ships in 3-6 days

0

85

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

87

MTD 736-0270

Bell Washer .265 x .75 .062

$3.99

$

In Stock, Qty 20+

0

88

MTD 710-0216

Hex Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 14

0

89

MTD 736-0331

Bell Washer .39 x 1.13 X .062

$3.99

$

In Stock, Qty 20+

0

90

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

92

MTD 732-0809

Torsion Spring
(Superseded to 932-0809)

$18.99

$

Usually ships in 3-6 days

0

93

MTD 738-0102

Front Axle Bolt

$9.99

$

In Stock, Qty 10

0

94

MTD 782-7006

Hinged Mounting Bracket

Variations

MTD 782-7006-0637

BRACKET-MOUNTING H - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

95

MTD 710-0896

Hex Screw 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

96

MTD 782-9050

Mounting Bracket
(Superseded to 782-9050-0637)

Variations

MTD 782-9050-0637

BRACKET-MTG - POWDER BLACK (0637)

$

$

Not available

$

$
