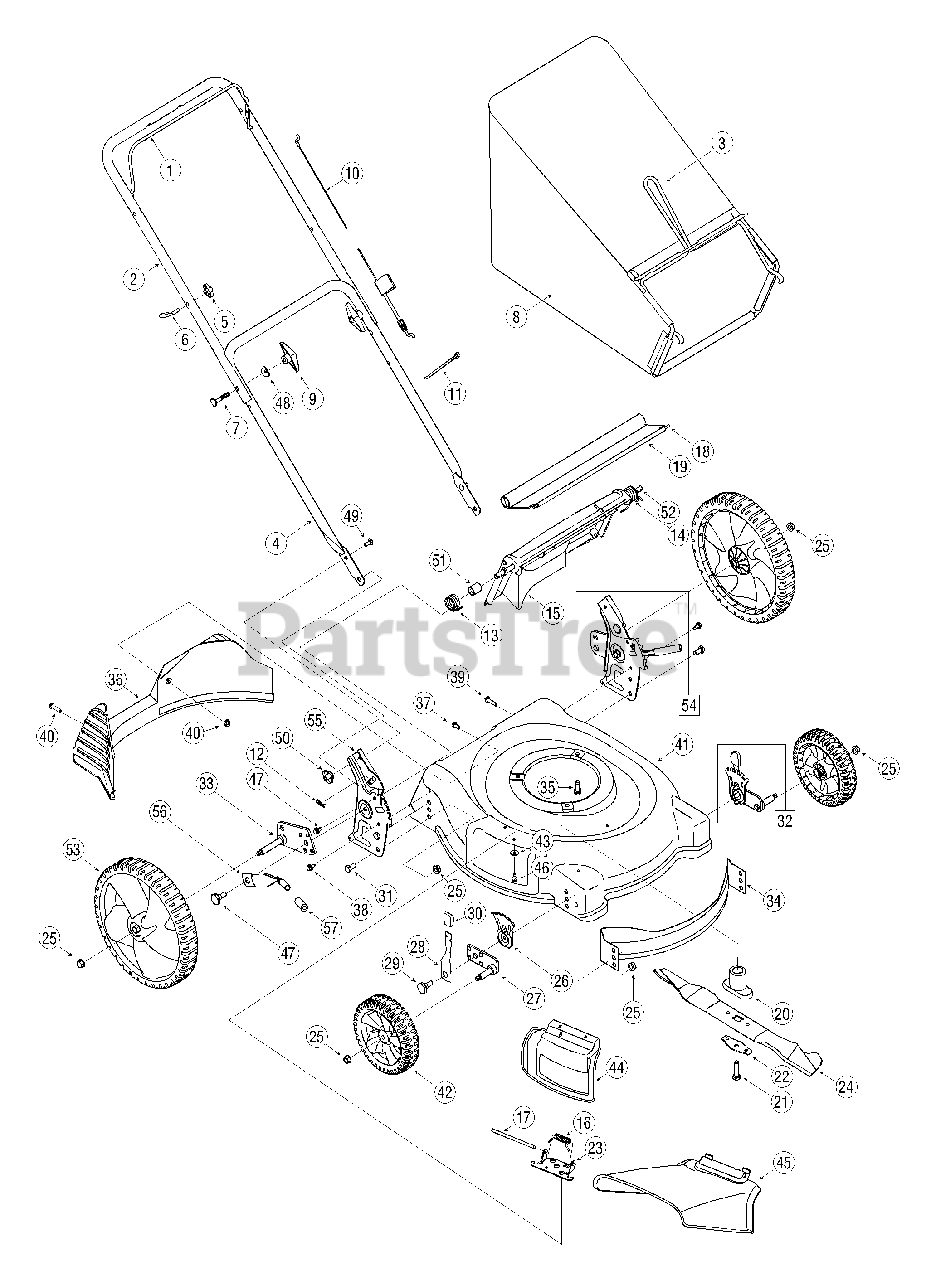

11A-549R729 - Yard Machines Walk-Behind Mower (2005) (Home Depot) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 747-1161A

Control Handle

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 2 left!

0

2

MTD 749-1092

Upper Handle
(Superseded to 749-1092A)

Variations

MTD 749-1092-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

$48.99

$

Usually ships in 3-6 days

0

3

MTD 747-04080

Grass Catcher Frame
(Superseded to 747-04080A)

Variations

MTD 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

4

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

5

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-1174

Carriage Bolt 5/16-18 x 2"

$7.49

$

In Stock, Qty 20+

0

8

MTD 664-04007

Grass Bag
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

9

MTD 720-0284

Handle Knob

$6.99

$

In Stock, Qty 20+

0

10

MTD 746-1130

Control Cable 40"
(Superseded to 946-1130)

$17.99

$

In Stock, Qty 7

0

11

MTD 726-0240

Cable Ties
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

12

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

13

MTD 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

14

MTD 732-04089A

Torsion Spring - LH

$7.99

$

Usually ships in 3-6 days

0

15

MTD 731-04134A

Grass Bag Door
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

16

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

17

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

18

MTD 732-0700

Wire Rod
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

19

MTD 731-04998

Trail shield

$31.99

$

In Stock, Qty 7

0

20

MTD 748-0377C

Blade Adapter
(Superseded to 748-0377E)

$19.99

$

In Stock, only 3 left!

0

21

MTD 710-1257

Hex Cap Screw 3/8-24 x 2.5

$7.99

$

In Stock, only 1 left!

0

22

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

23

MTD 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 2 left!

0

24

MTD 742-0741

Blade: 21" Mulching
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

25

MTD 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

26

MTD 15261C

Height Adjustment Plate

$

$

Currently unavailable

27

MTD 687-02077

Pivot Bar Assembly - RH
(Superseded to 987-02077A)

$17.99

$

In Stock, Qty 6

0

MTD 687-02076

Pivot Bar Assembly - LH
(Superseded to 987-02076A)

$

$

Not available

28

MTD 732-0404

Spring Lever
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

29

MTD 738-0507B

Shoulder Screw

$4.49

$

In Stock, only 4 left!

0

30

MTD 720-0426

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

31

MTD 710-0216

Hex Screw 3/8-16 x 0.75

$4.49

$

In Stock, Qty 15

0

32

MTD 687-02074

Front Height Adjuster Assembly - RH
(Superseded to 987-02074B)

$40.99

$

In Stock, only 2 left!

0

MTD 687-02075

Front Height Adjuster Assembly - LH
(Superseded to 987-02075B)

$35.99

$

In Stock, only 2 left!

0

33

MTD 687-02039

Pivot Bar Assembly - RH
(Superseded to 987-02335)

$27.99

$

Usually ships in 3-6 days

0

MTD 687-02040

Pivot Bar Assembly - LH
(Superseded to 987-02336)

$

$

Not available

34

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

35

MTD 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, only 4 left!

0

36

MTD 731-04150

Rear Baffle 21" Rd.
(Superseded to 731-04150C)

$42.99

$

In Stock, only 2 left!

0

37

MTD 710-0286

Machined Screw 1/4-20

$4.49

$

Usually ships in 3-6 days

0

38

MTD 710-1652

TT Screw 1/4-14 x.625

$4.49

$

In Stock, Qty 20+

0

39

MTD 710-04371

Hex Screw 1/4-15

$6.99

$

Usually ships in 3-6 days

0

40

MTD 712-04064

Flange Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

41

MTD 787-01231

Deck 21"
(Superseded to 753-05200)

Variations

MTD 787-01231-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01231-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

$

$

42

MTD 734-1987

Front Wheel: 8-Spoke Bar Gray 8 x 2

$23.99

$

In Stock, Qty 5

0

43

MTD 736-0270

Bell Washer.265 ID x.75 OD

$3.99

$

In Stock, Qty 20+

0

44

MTD 687-02055

Hinged Mulch Plug Assembly
(Superseded to 987-02055)

$27.99

$

In Stock, Qty 10

0

45

MTD 731-04177

Side Discharge Deflector

$19.99

$

In Stock, Qty 20+

0

46

MTD 710-0599

Screw 1/4-20

$4.49

$

In Stock, Qty 20+

0

47

MTD 710-0514

Hex Cap Screw 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

48

MTD 736-0451

Shoulder Washer.320 ID x.930 OD

$4.49

$

In Stock, Qty 11

0

49

MTD 710-0703

Hex Carriage Screw 1/4-20

$4.49

$

In Stock, Qty 15

0

50

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

51

MTD 750-04162

Spacer.375 O.D. x.50 I.D. x 1.02"
(Superseded to 950-04162)

$

$

Not available

52

MTD 747-0996

Chute Door Pivot Rod

$32.99

$

Usually ships in 3-6 days

0

53

MTD 734-04082

Rear Wheel: 8-Spoke Bar Gray 12 x 2

$45.99

$

In Stock, only 2 left!

0

54

MTD 687-02057

Handle Bracket Assembly - LH

$

$

Not available

MTD 687-02056

Handle Bracket Assembly - RH
(Superseded to 987-02056)

$

$

Not available

55

MTD 687-02033

Handle Bracket - RH
(Superseded to 987-02033)

$

$

Not available

MTD 687-02031

Handle Bracket - LH

$

$

Not available

56

MTD 732-0866

Spring Lever

$

$

Not available

57

MTD 720-0312

Spring Lever Knob

$4.99

$

In Stock, Qty 5

0
