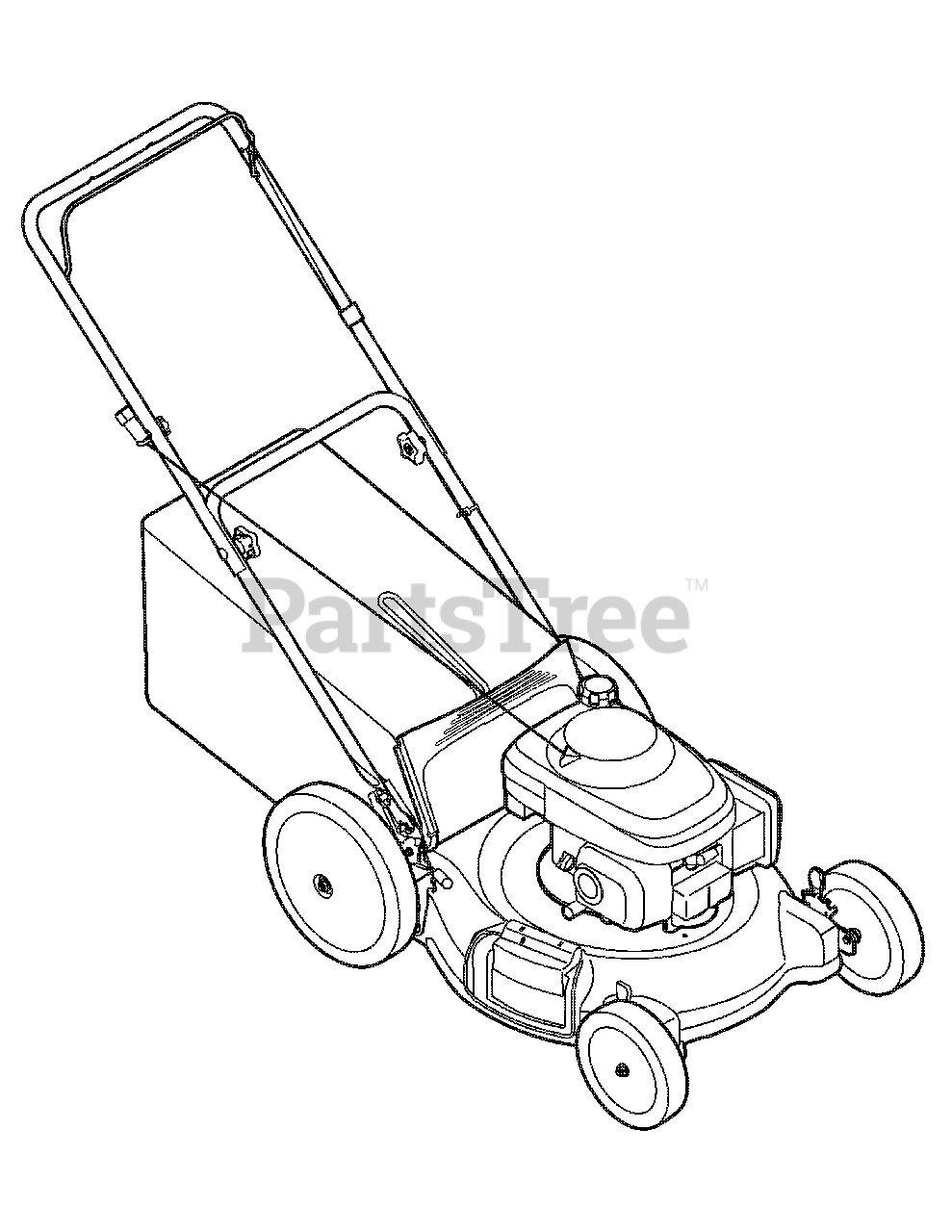

11A-549Q229 - Yard Machines Walk-Behind Mower (2008) (Home Depot) .Quick Reference Parts Diagram

Walk-Behind Mower

.Quick Reference Parts Diagram

MTD 490-250-0009

Spark Plug
(Superseded to FF-22)

$

$

Not available

N/A

Pre-Filter

$

$

Not available

MTD 17211-ZL8-023

Air Filter

$6.49

$

In Stock, Qty 20+

0

MTD 746-1130

Control Cable, 40"
(Superseded to 946-1130)

Note: (Brake)

$17.99

$

In Stock, Qty 20+

0

MTD 742-0741

Blade, Mulching 21''
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

MTD 710-1257

Blade Bolt

$7.99

$

In Stock, only 1 left!

0

MTD 748-04082

Blade Adaptor 25MM

$37.99

$

In Stock, only 3 left!

0

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

MTD 734-1987

Front Wheel, 8 x 1.8, Bar

$23.99

$

In Stock, only 4 left!

0

MTD 734-04082

Rear Wheel, 12 x 1.8, Bar

$45.99

$

In Stock, only 2 left!

0

MTD 731-05642

Trailshield
(Superseded to 731-05642A)

$28.99

$

In Stock, Qty 9

0

MTD 731-04177

Discharge Chute

$19.99

$

In Stock, Qty 20+

0

MTD 664-04027

Grass Bag
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 14

0

MTD 664-04007A

Grass Bag w/Logo
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 14

0

MTD 747-04080A-0637

Grass Bag Frame, 21" - POWDER BLACK (0637)

Variations

$59.99

$

In Stock, Qty 5

0
