11A-549P713 - Yard-Man Walk-Behind Mower (2004) (Costco) General Assembly 11A-549P713 Parts Diagram

Walk-Behind Mower

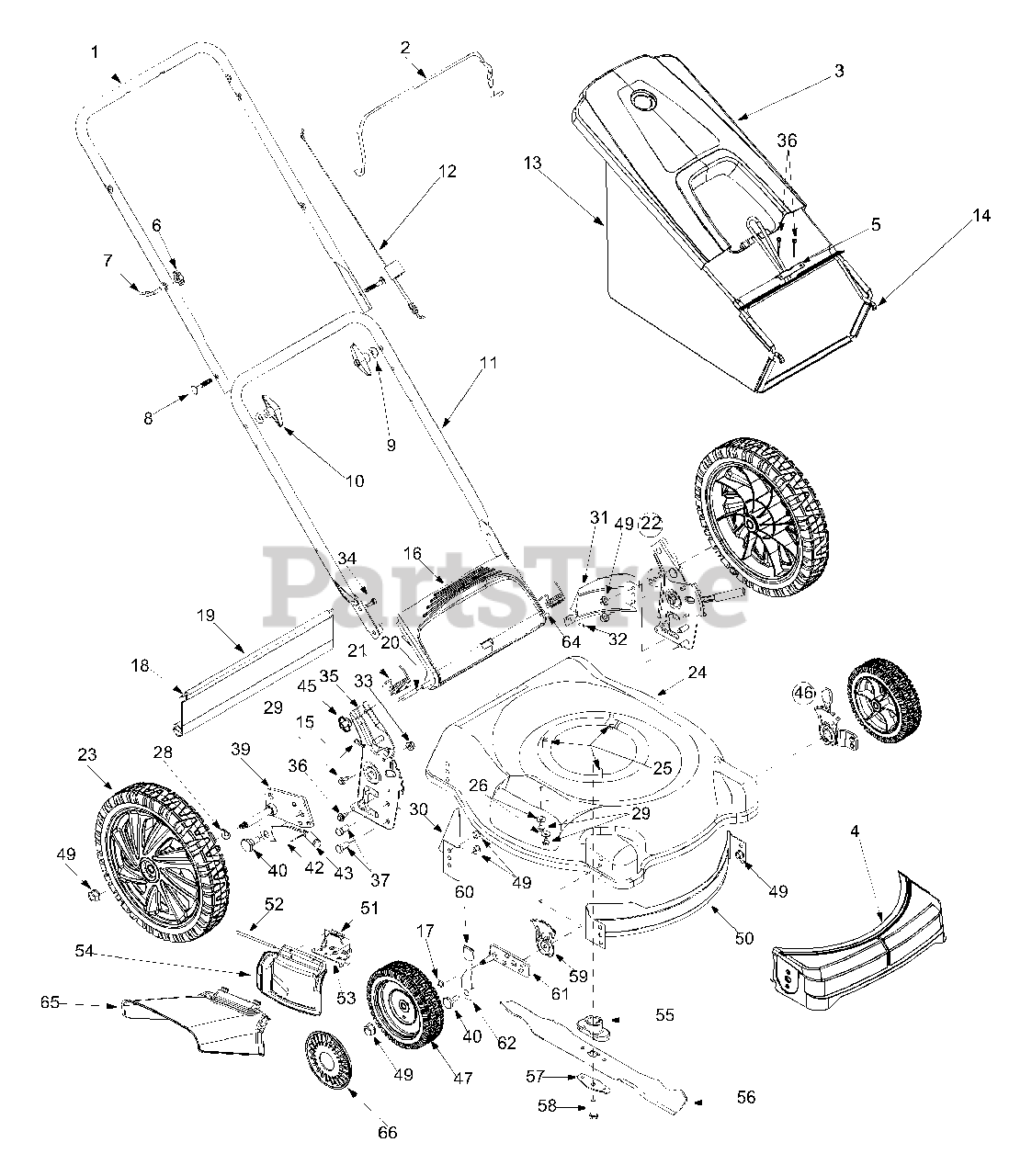

General Assembly 11A-549P713 Parts Diagram

  • Title

1

MTD 749-1092A

Upper Handle

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

2

MTD 747-1161A-0637

Control Handle

$13.99

$

In Stock, only 1 left!

0

3

MTD 731-04302

Hardtop Cover
(Superseded to 931-04302)

$

$

Not available

4

MTD 731-1506

Front End Cover
(Superseded to 731-1506A)

$

$

Not available

5

MTD 787-01113

Grass Bag Mounting Bracket
(Superseded to 787-01113-0637)

Variations

MTD 787-01113-0637

BRACKET-MOUNTING - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-1174

Carriage Bolt 5/16-18 x 2"

$7.49

$

In Stock, Qty 20+

0

9

MTD 936-0451

Shoulder Washer .320 ID x .930 OD
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

10

MTD 920-0284

Wing Nut
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

11

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

12

MTD 946-0957

Control Cable 37.25"

$17.99

$

In Stock, Qty 20+

0

12

MTD 946-1130

Control Cable 40"

$17.99

$

In Stock, Qty 7

0

12

MTD 946-1137

Control Cable 53"

$21.99

$

In Stock, only 4 left!

0

13

MTD 664-04007A

Grass Bag
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

14

MTD 747-04080A

Grass Catcher Frame

Variations

MTD 747-04080A-0637

Grass Bag Frame, 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

15

MTD 914-0104

Hairpin Clip
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

16

MTD 931-04134

Grass Bag Door

$

$

Not available

17

MTD 736-0504

Wave Washer.510 x.750 x.017
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

18

MTD 732-0700

Wire Rod
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

19

MTD 731-04998

Trailshield

$31.99

$

In Stock, Qty 7

0

20

MTD 950-04162

Spacer .375 O.D. x .50 I.D. x 1.02"

$

$

Not available

21

MTD 932-04090

Torsion Spring - RH
(Superseded to 732-04090A)

Note: Right Hand

$7.99

$

Usually ships in 3-6 days

0

21

MTD 732-04089A

Torsion Spring - LH

Note: Left Hand

$7.99

$

Usually ships in 3-6 days

0

22

MTD 987-02056

Handle Bracket Assembly - RH

Note: Right Hand

$

$

Not available

22

MTD 687-02057

Handle Bracket Assembly - LH

Note: Left Hand

$

$

Not available

23

MTD 734-04082

Rear Wheel: 8-Spoke Bar Gray 12 x 2

Note: If equipped

$45.99

$

In Stock, only 2 left!

0

23

MTD 734-04093

Rear Wheel: Zag Trd. Gray 12 x 2.125

Note: If equipped

$67.99

$

In Stock, only 2 left!

0

23

MTD 734-04046

Rear Wheel: Zag Trd. Yellow 12 x 2.126

$72.99

$

Usually ships in 3-6 days

0

24

MTD 787-01104

Deck 21"

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 787-01104-0638

SERVICE KIT:21" DE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01104-0665

SERVICE KIT:21" DE - YARDMAN GREEN (0665)

$

$

Not available

MTD 787-01104-0691

SERVICE KIT:21" DE - BLACK JACK (0691)

$

$

Not available

MTD 787-01104-0709

SERVICE KIT:21" DE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

25

MTD 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, only 4 left!

0

26

MTD 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

28

MTD 736-0182

Spring Washer.500 x 1.00 x.022

$4.49

$

In Stock, Qty 7

0

29

MTD 710-0599

Screw 1/4-20 x.500

$4.49

$

In Stock, Qty 20+

0

30

MTD 782-5004B

Rear Baffle - RH

$24.99

$

Usually ships in 3-6 days

0

31

MTD 782-5003A

Rear Baffle - LH

$30.99

$

Usually ships in 3-6 days

0

32

MTD 710-1017

Tap Screw 1/4-14 x .625.

$8.49

$

In Stock, Qty 9

0

33

MTD 912-3005

Flange Lock Nut 3/8-16
(Superseded to 712-3005)

$6.99

$

Usually ships in 3-6 days

0

34

MTD 710-0703

Hex Carriage Screw 1/4-20

$4.49

$

In Stock, Qty 15

0

35

MTD 987-02033

Handle Bracket Assembly - RH

Note: Right Hand

$

$

Not available

35

MTD 687-02031

Handle Bracket Assembly - LH

Note: Left Hand

$

$

Not available

36

MTD 710-1652

TT Screw 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

37

MTD 710-0216

Hex Screw 3/8-16 x 0.75

$4.49

$

In Stock, Qty 15

0

38

MTD 710-0514

Hex Cap Screw 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

39

MTD 987-02335

Pivot Bar Assembly - RH

Note: Right Hand

$27.99

$

Usually ships in 3-6 days

0

39

MTD 987-02336

Pivot Bar Assembly - LH

Note: Left Hand

$

$

Not available

40

MTD 938-0507B

Shoulder Screw
(Superseded to 738-0507B)

$4.49

$

In Stock, only 4 left!

0

42

MTD 732-0866

Spring Lever

$

$

Not available

43

MTD 720-0312

Grip: Spring Lever

$4.99

$

In Stock, Qty 5

0

45

MTD 712-0397A

Wing Nut

$3.99

$

In Stock, Qty 20+

0

46

MTD 987-02074B

Front Height Adjuster Assembly - RH

Note: Right Hand

$40.99

$

In Stock, only 2 left!

0

46

MTD 987-02075B

Front Height Adjuster Assembly - LH

Note: Left Hand

$35.99

$

In Stock, only 2 left!

0

47

MTD 734-1987

Front Wheel: 8-Spoke Bar Gray 8 x 2

Note: If equipped

$23.99

$

In Stock, Qty 5

0

47

MTD 753-08093

Front Wheel: Zag Trd. Gray 8 x 2.125

Note: (kit contains hubcap)

$45.99

$

In Stock, Qty 5

0

49

MTD 912-0431

Flange Lock Nut 3/8-16

$4.99

$

In Stock, Qty 20+

0

50

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

51

MTD 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

52

MTD 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

53

MTD 17032A

Hinge Mounting Bracket

$10.99

$

In Stock, only 2 left!

0

54

MTD 987-02055

Mulching Plug

$27.99

$

In Stock, Qty 10

0

55

MTD 748-0376E

Blade Adapter

$20.99

$

In Stock, only 1 left!

0

56

MTD 942-0741A

Blade: 21" Mulching

$29.99

$

In Stock, Qty 20+

0

57

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 3 left!

0

58

MTD 710-1044

Hex Cap Screw 3/8-24 x 1.5

$3.99

$

In Stock, only 3 left!

0

59

MTD 787-01290A

Height Adjustment Plate

$12.99

$

In Stock, only 2 left!

0

60

MTD 720-0426

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

61

MTD 987-02077A

Pivot Bar Assembly - RH

Note: Right Hand

$17.99

$

In Stock, Qty 6

0

61

MTD 987-02076A

Pivot Bar Assembly - LH

Note: Left Hand

$

$

Not available

62

MTD 94832

Spring Lever

$10.99

$

In Stock, only 3 left!

0

64

MTD 747-0996

Chute Door Pivot Rod

$32.99

$

Usually ships in 3-6 days

0

65

MTD 731-04177

Side Discharge Deflector

$19.99

$

In Stock, Qty 20+

0

66

MTD 731-1426B

Hubcap Radial Spoke Yellow

Note: If equipped; Not shown

$8.99

$

Usually ships in 3-6 days

0

66

MTD 731-0981C

Hubcap Radial Spoke Gray

Note: If equipped; Not shown

$10.99

$

In Stock, only 2 left!

0
